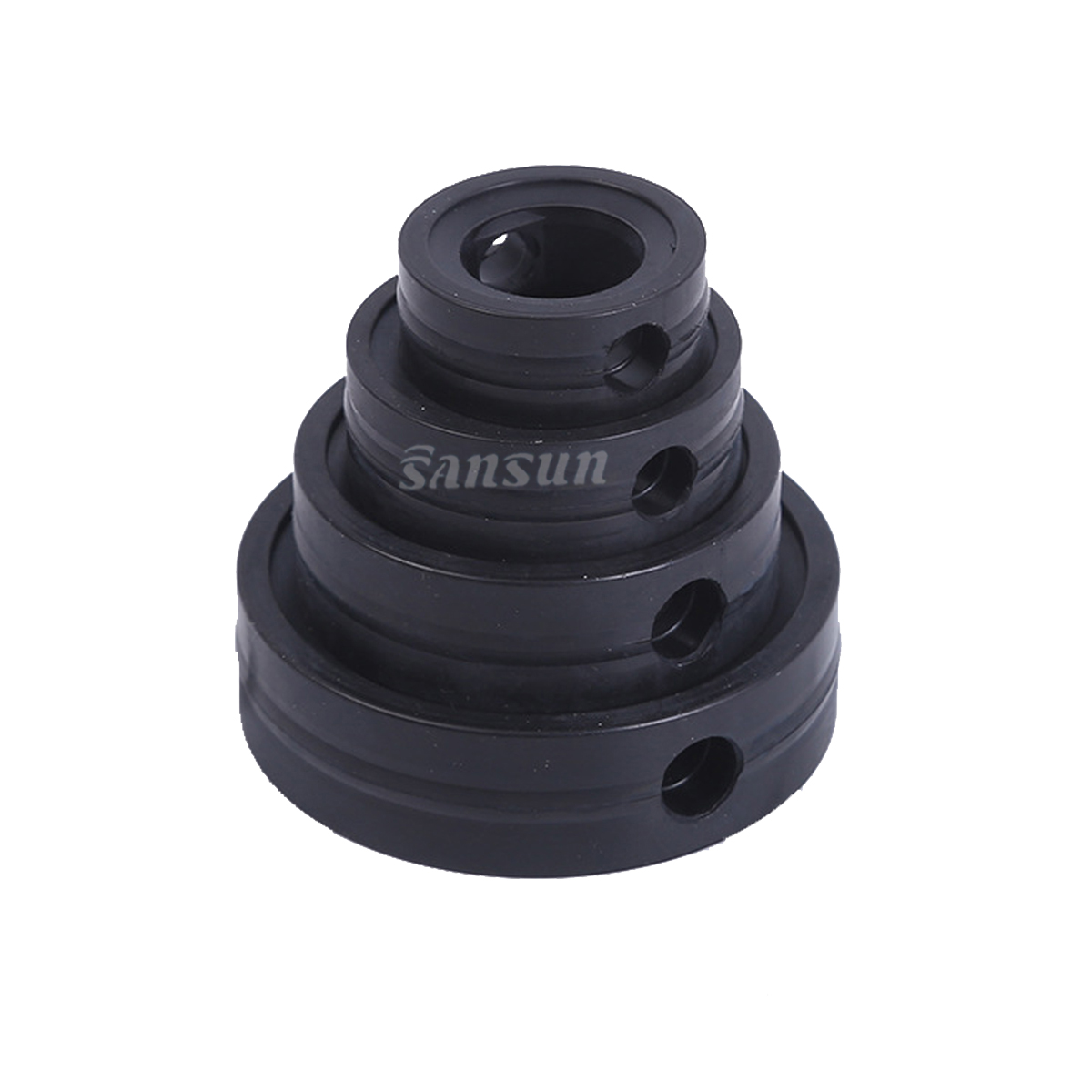

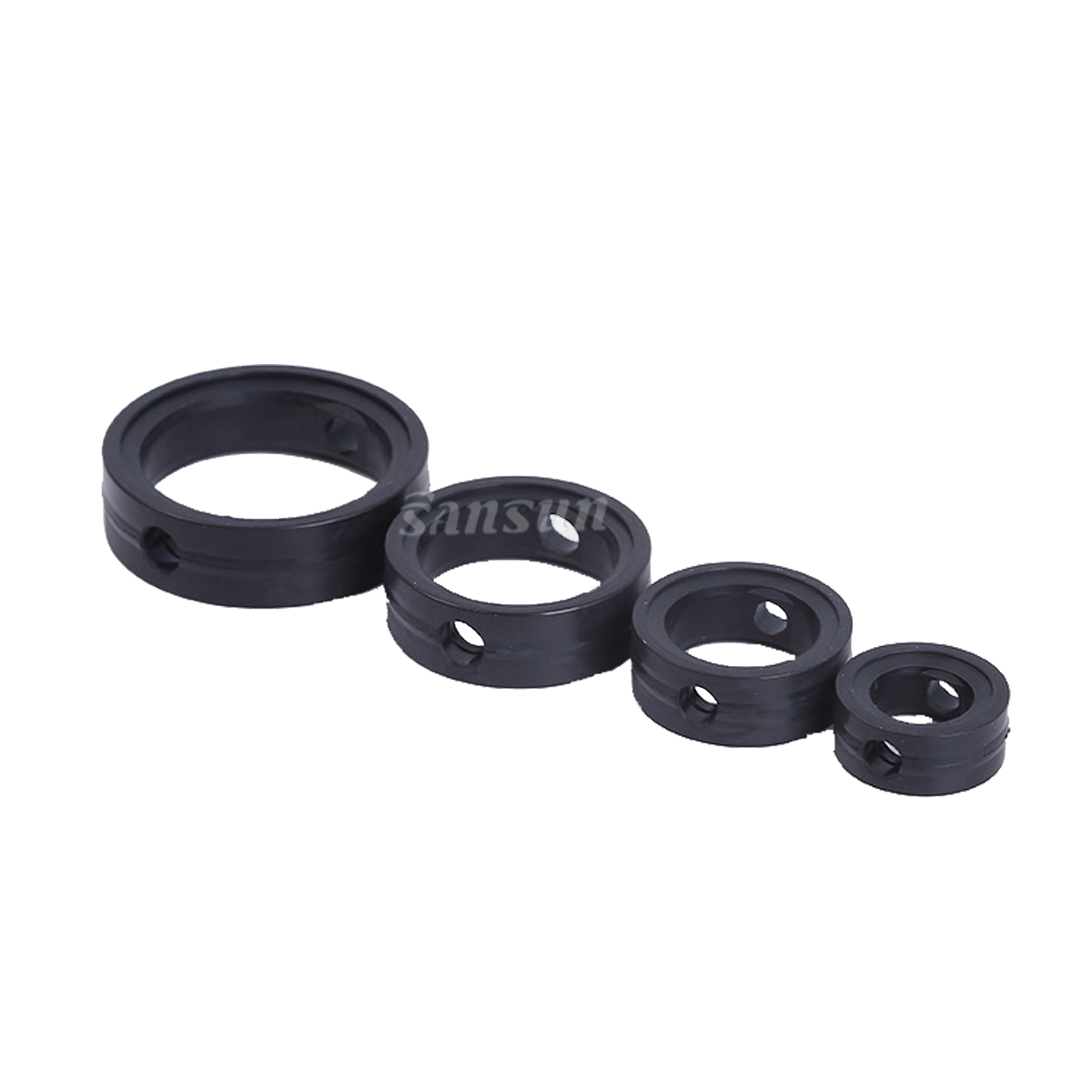

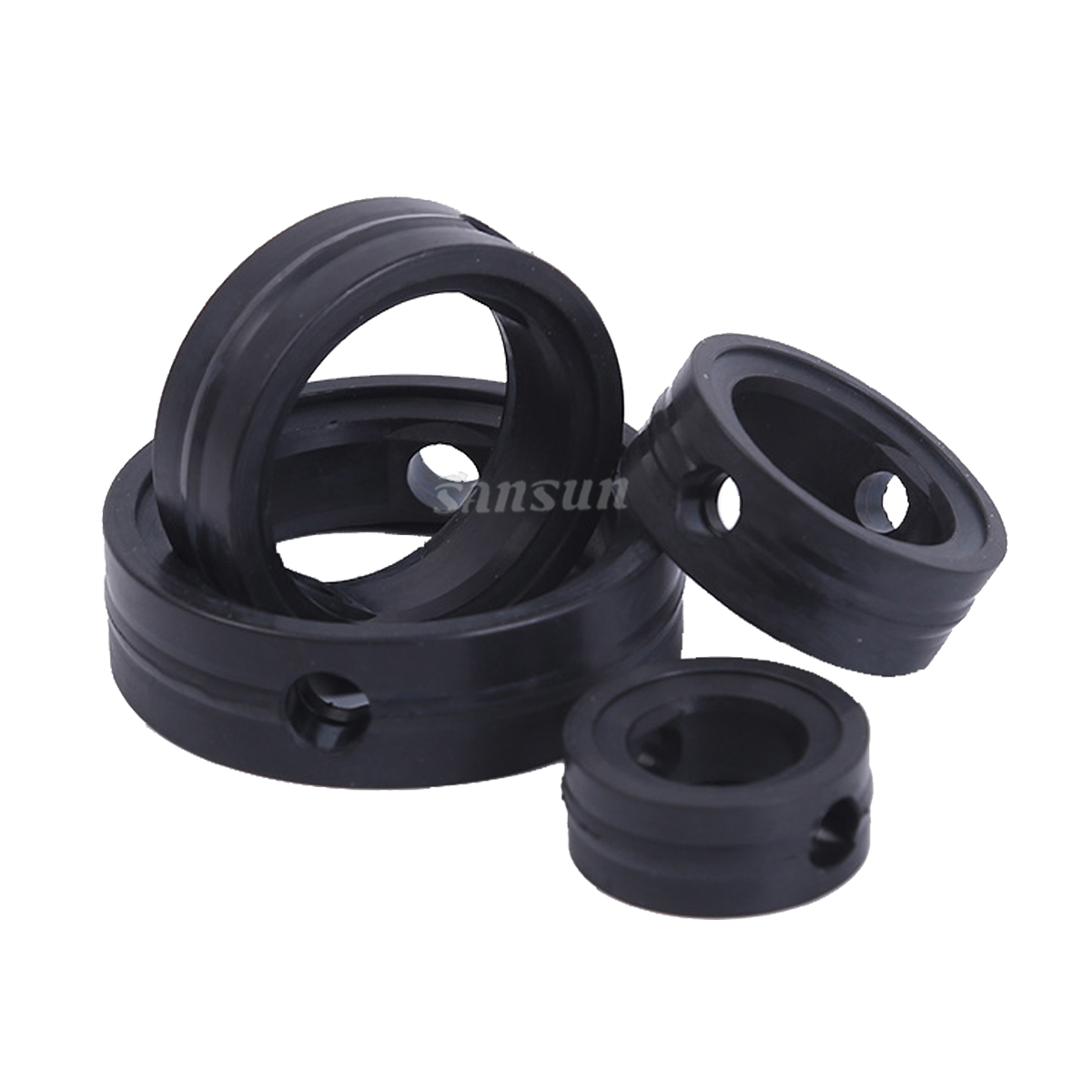

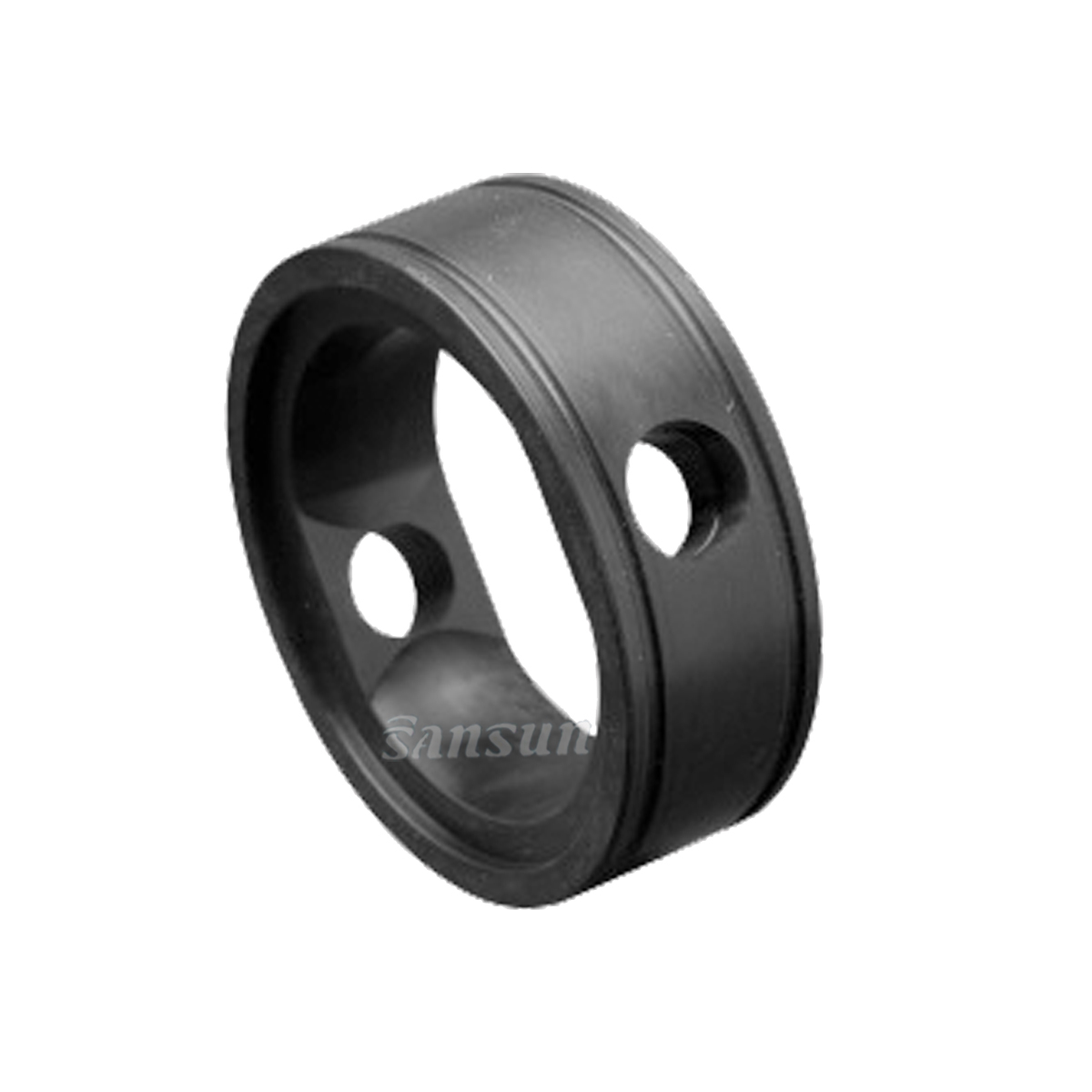

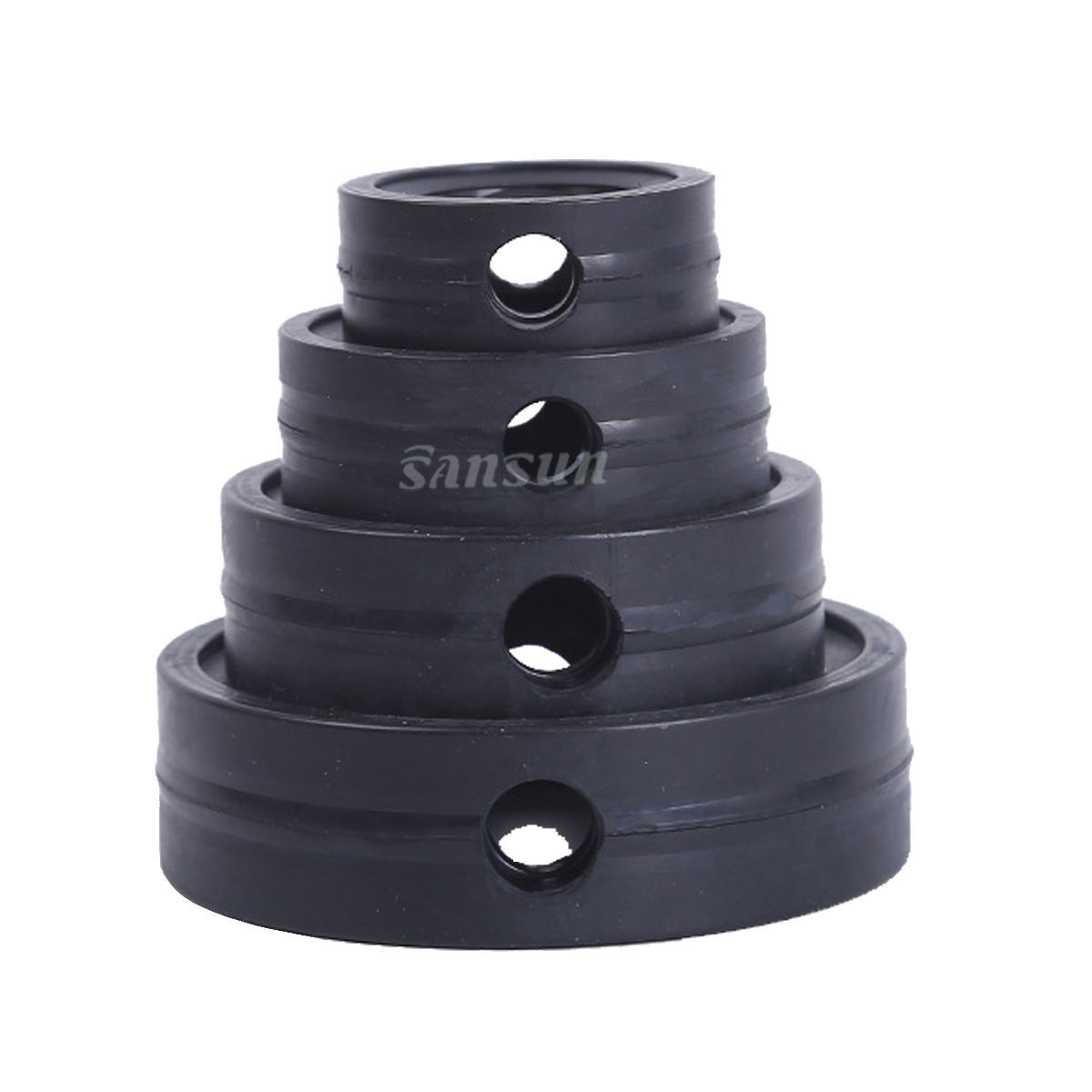

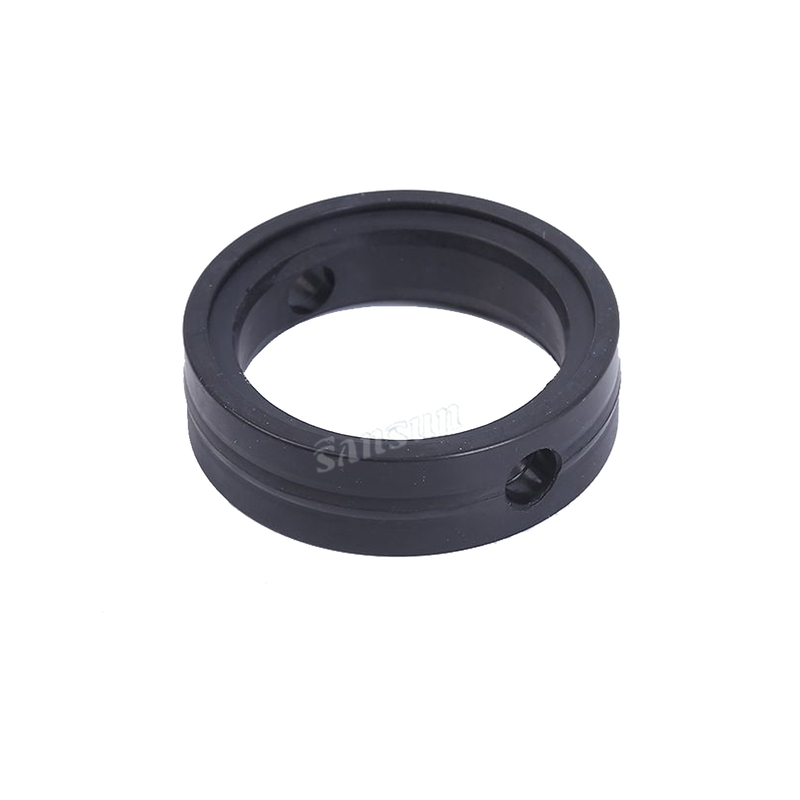

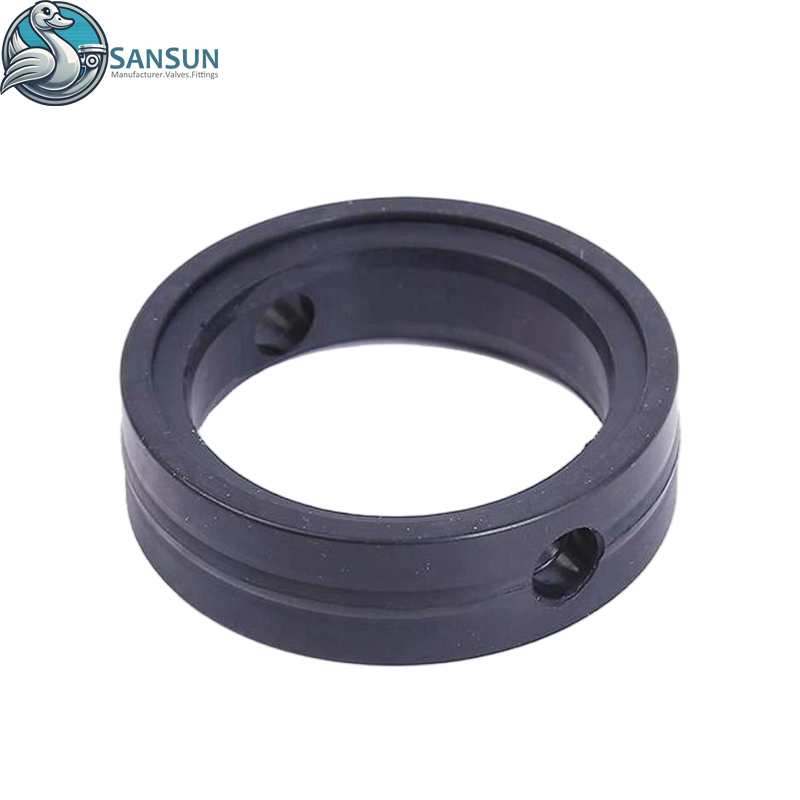

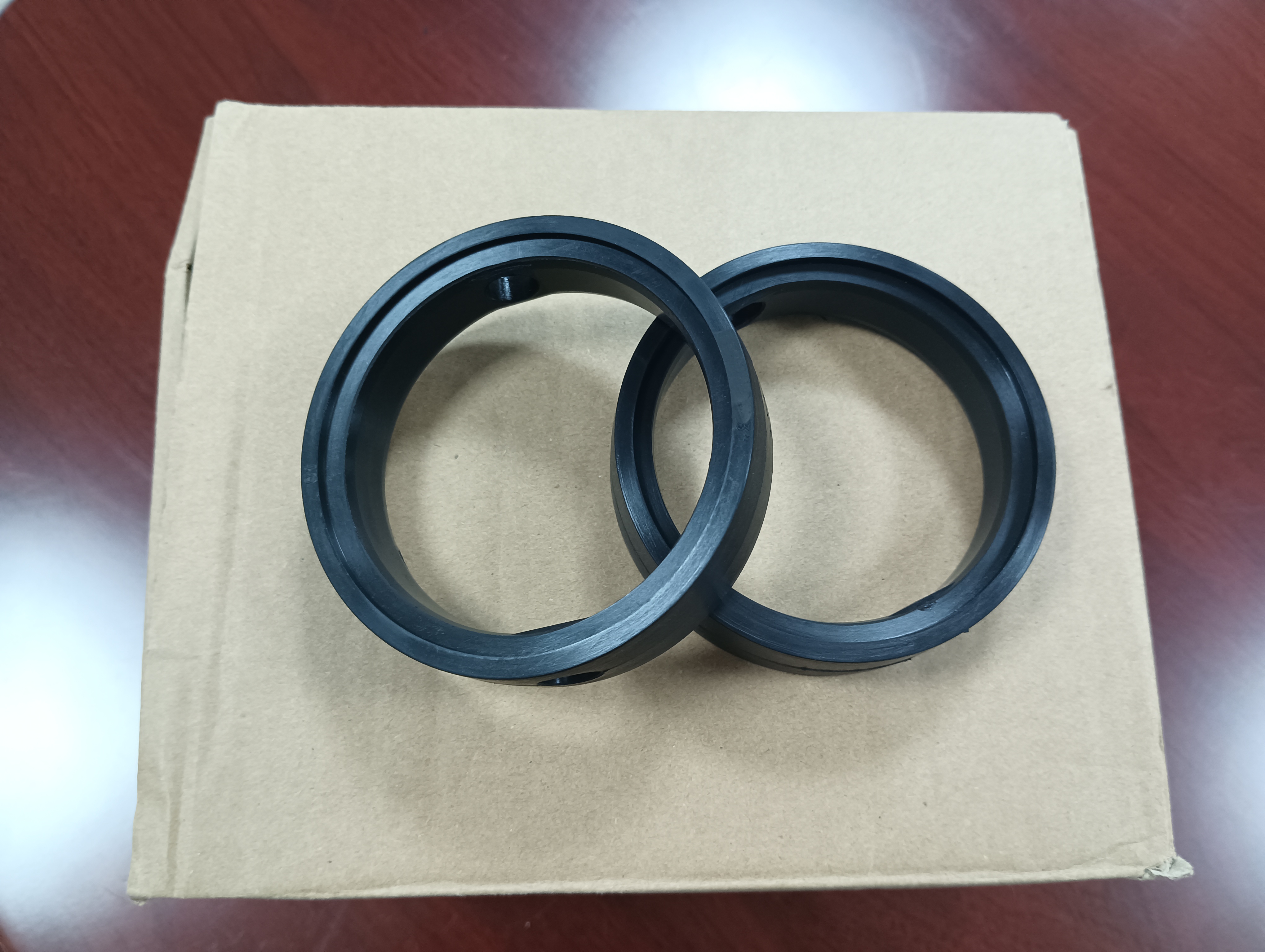

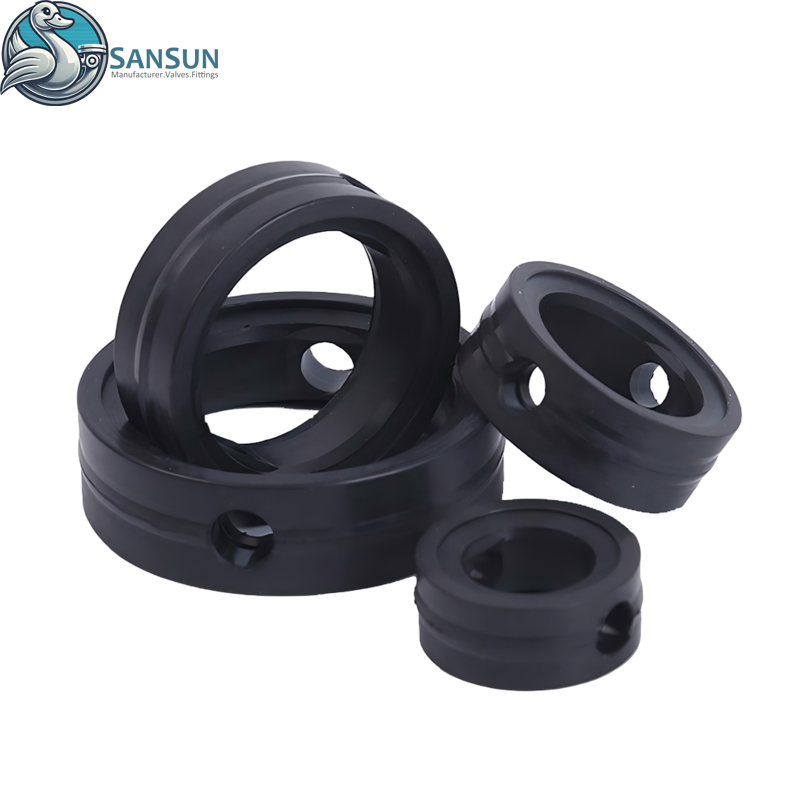

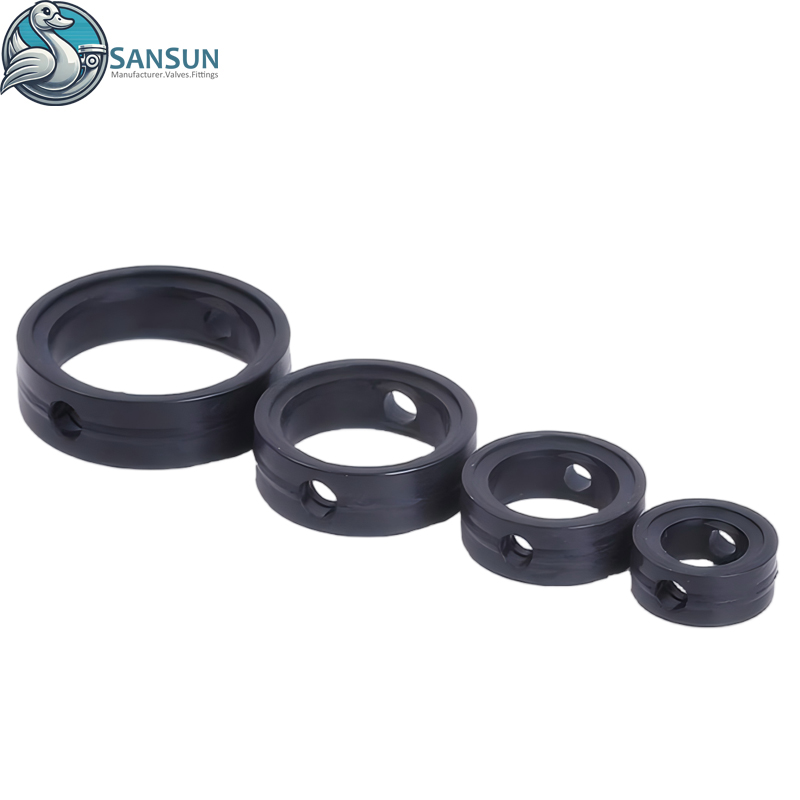

Food Grade EPDM Black Seal Gasket for Sanitary Butterfly Valve

Operating Principles

Premium quality Ferrule gasket for butterfly valve provides leak-proof Tri-clamp connections.

Made of flexible and durable rubber, this TC gasket comes in various colors.

Make sure to position the ring correctly between the two ferrules before locking the clamp.

All our gaskets are available in both standard and flanged (lipped type) and be supplied in Buna, Nitrile, Silicone, Viton and PTFE.

We also offer screen gaskets and orifice plates. Size range from 1⁄2”-12”.

Technical Specifications

Working temperature (-58°F – 400°F) or ( -50°C to 200°C )

Acid Resistance: Good

Alkali Resistance: Poor

Petroleum Oil Resistance: Good

Vegetable Oil Resistance: Good

Abrasion Resistance: Excellent

Compression Resistance: Excellent

Ethanol < 15%: Good

Materials

Material: EPDM

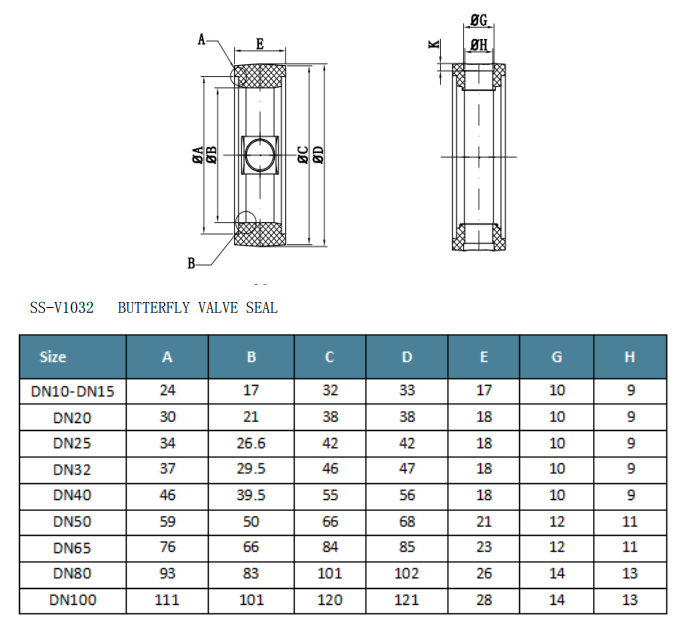

Standard Design

Available sizes: DN10-DN100,1/2"-10"

Color:Black, Red, Green, White etc.

Corresponding size can be provided upon request

Inspection

All kinds of non-standard products are customized according to the requirements of customers. Products can be traced back to the

manufacturing and time of each process to ensure the quality of products.
