| Size | 1"-4" (DN25-DN100) |
| Valve Body Material: | AISI304/AISI316L ,1.4404/1.4301 (Forged) |
| Valve Disc Material: | AISI304/AISI316L ,1.4404/1.4301 (Forged) |
| Seal Material: | Silicone |
| Surface Finishing： | Ra < 0.4-0.8 µm (32 µin) |
| Max Working Pressure: | 145psi (10bar) |
| Helium Leak Test: | <1 × 10⁻⁹ mbar・l/s |
| Cleanliness: | Passivation treatment, Conforms to ASTM A380 standard |

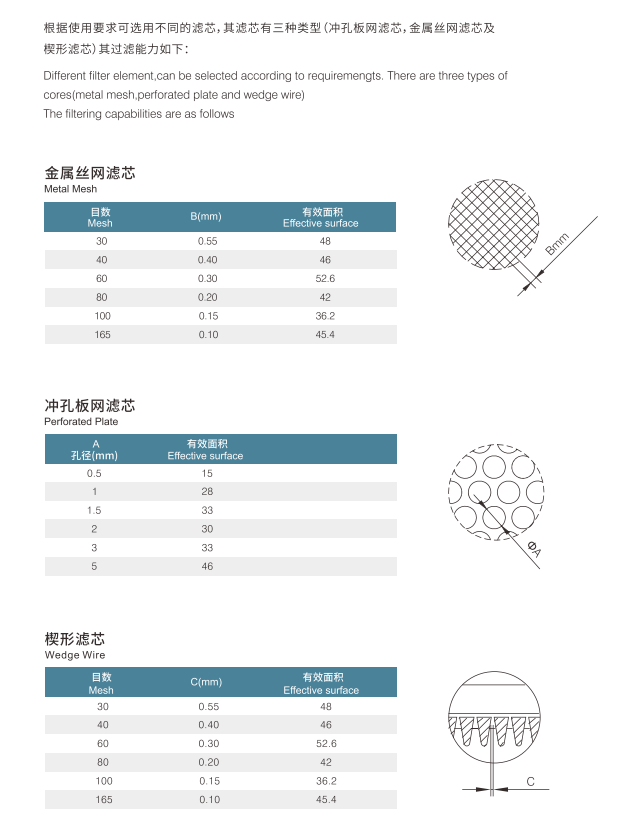

| Ofcores： | Metal Mesh,Pertorated Plate,Wedge Wire |
| Availably standard: | DIN/3A |
| Connection type | Clamp End,Thread End,Weld End |
| Certification | US 3-A, FDA, CE PED/2014/68/EC, Certification |
| Application scope: | Sansun straight filters meet stringent global sanitary standards including ASME BPE, 3-A, DIN and ISO. The crevice-free hygienic construction suits fluid filtration lines for food, beverage, cosmetic and pharmaceutical production. |
