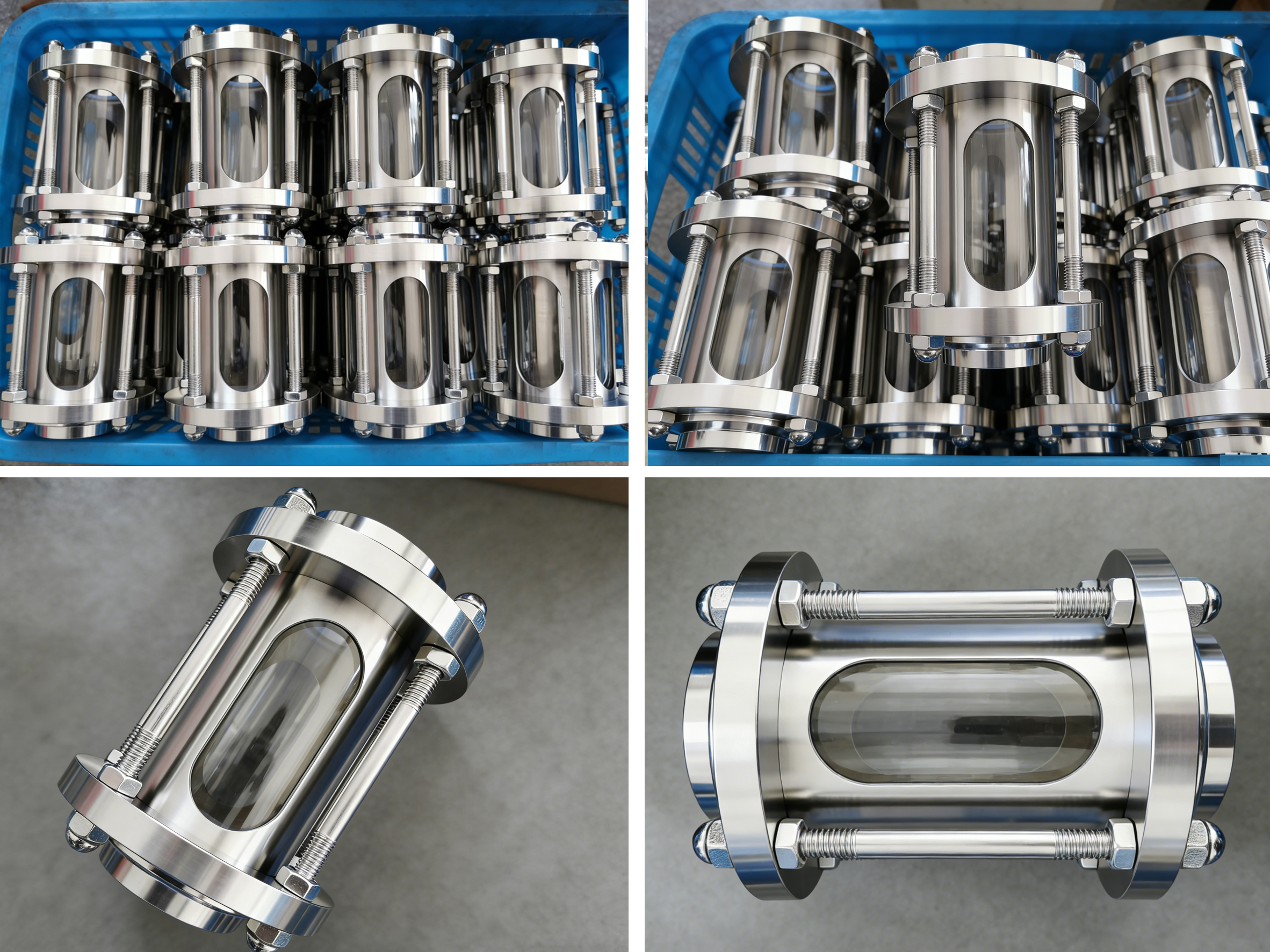

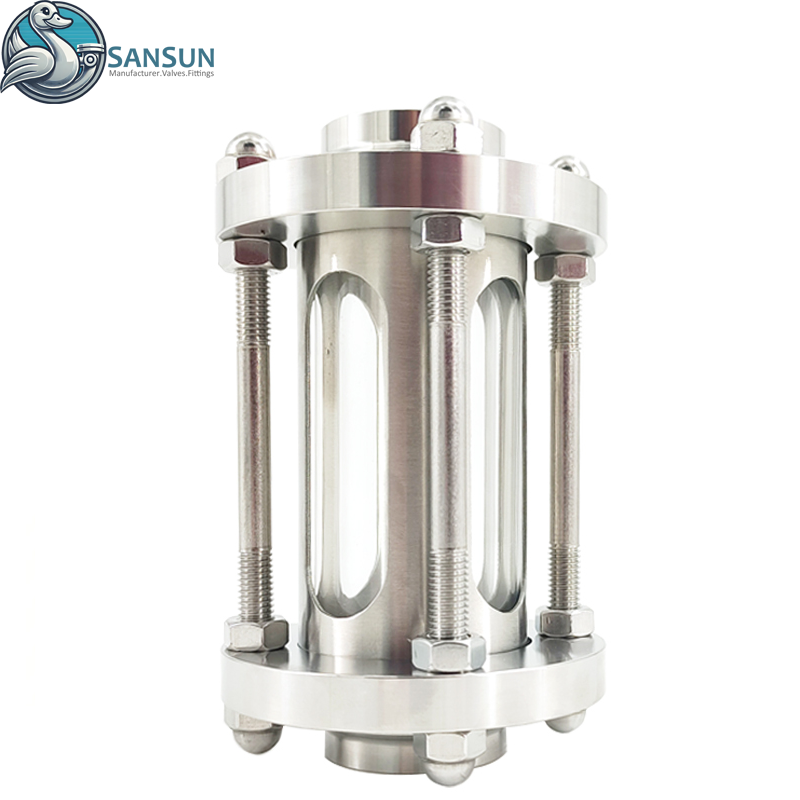

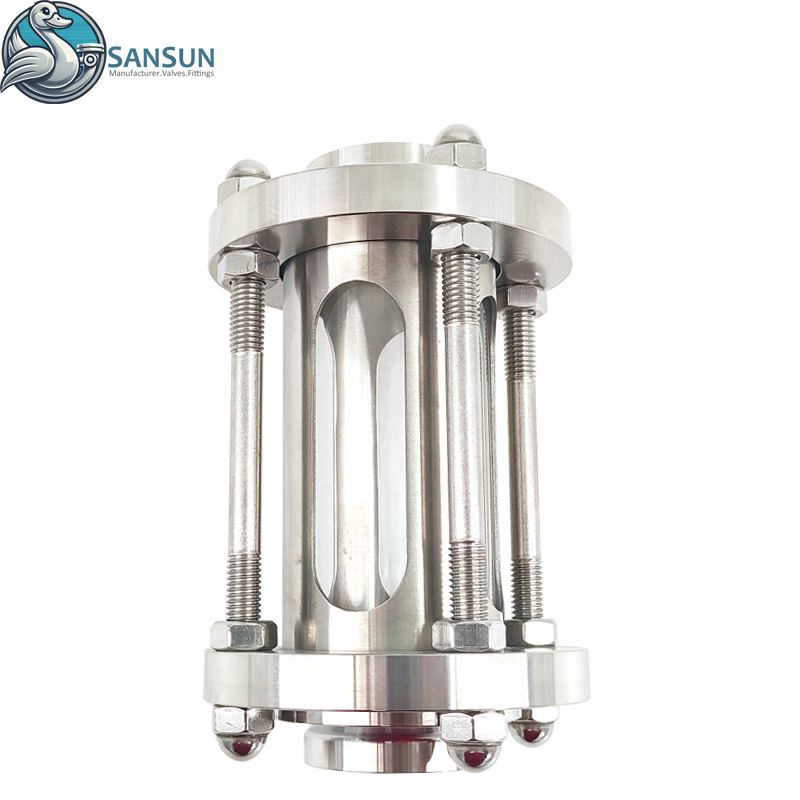

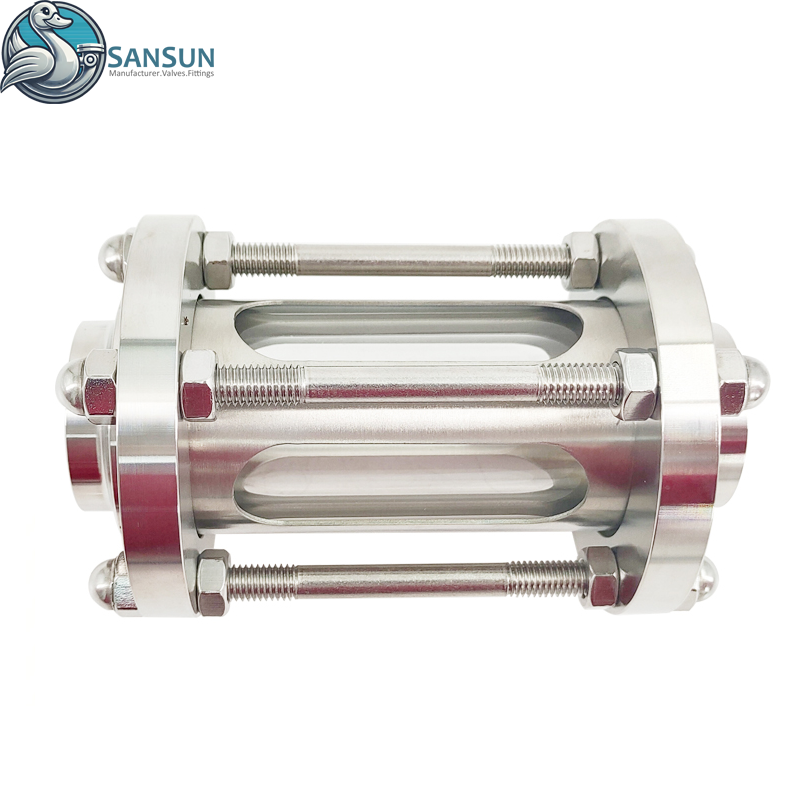

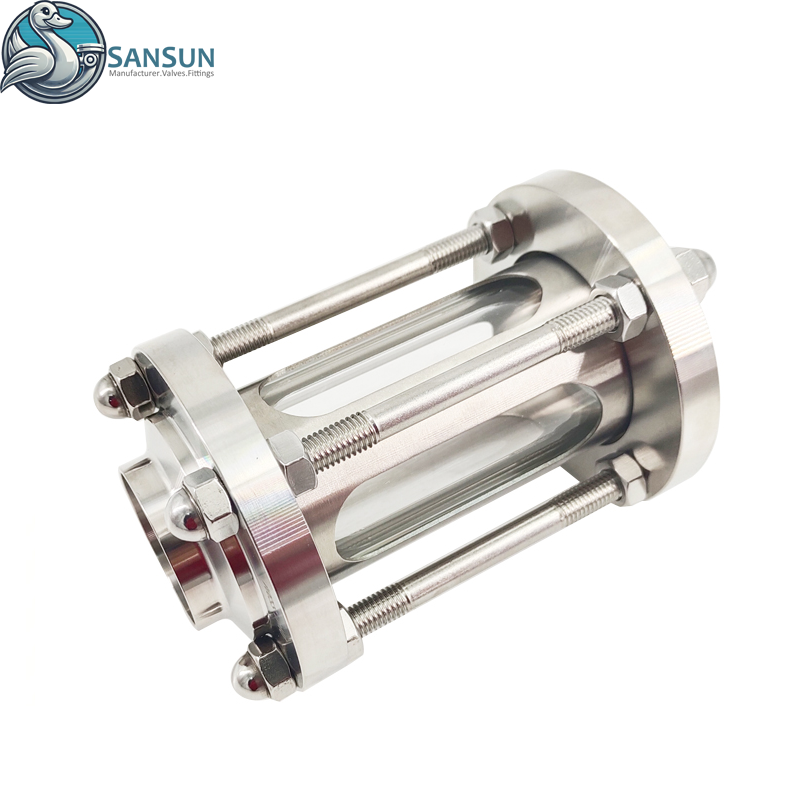

Data Center Liquid Cooling System Stainless Steel Welded Sight Glass with Protective Mesh

Sansun have many types of Sanitary Sight Glasses, include straight sight glass, aseptic sight glass, union sight glass, tri-clamp sight glass, four-way sight glass, flange sight glass. Constructed from hygienic stainless steel,resistant pressure up to 10bar, with FDA-approved gasket, full bore hygienic design, sight glass commonly used in the for Data center liquid cooling, Sight Glass for Direct-to-Chip (DTC) cooling，Sight Glass for CDU（Coolant Distribution Unit）

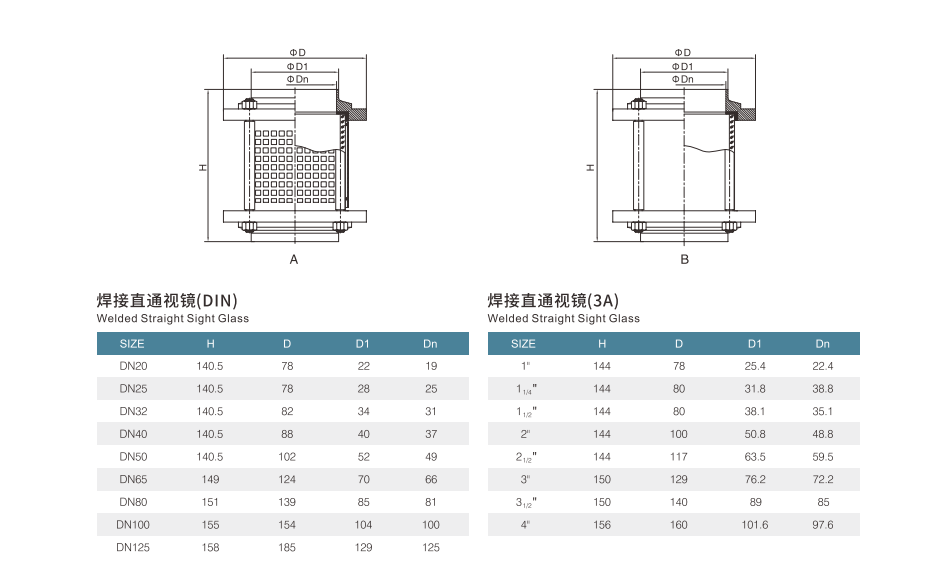

Size:
1"
1 1/4"
1 1/2"
2"
2 1/2"
3"
4"
DN20
DN25
DN32
DN40
DN50
DN65
DN80
DN100
DN125
Material:
SS304
SS316L
Availability:
Quantity:
Inquire Add to Basket

  • SANSUN

Size DN20-DN150,1"-4"
Valve Body Material: AISI304/AISI316L ,1.4404/1.4301   (Forged)
Vale Disc Material: AISI304/AISI316L ,1.4404/1.4301   (Forged)
Seal Material: EPDM
Surface Finishing： Ra < 0.4-0.8 µm (32 µin)
Max Working Pressure: 145psi(10ba)
Helium Leak Test: <1 × 10⁻⁹ mbar・l/s
Cleanliness: Passivation treatment, Conforms to ASTM A380 standard
Operating Principles: When pipeline pressue is bigger than valve spring pressure, the valve will open, when pipeline pressure is less or equal to the spring pressure, the valve will be closed.
Availably standard: DIN/3A
Connection type Clamp End, Thread End, Weld End，Flange End
Certification US 3-A, FDA, CE PED/2014/68/EC, Certification
Application scope:

sansun's Sight Glass  is comply with the OCP specification(Open Compute Project specification),    Sight Glass for Data center liquid cooling, Sight Glass for Direct-to-Chip (DTC) cooling，Sight Glass for CDU（Coolant Distribution Unit）.
