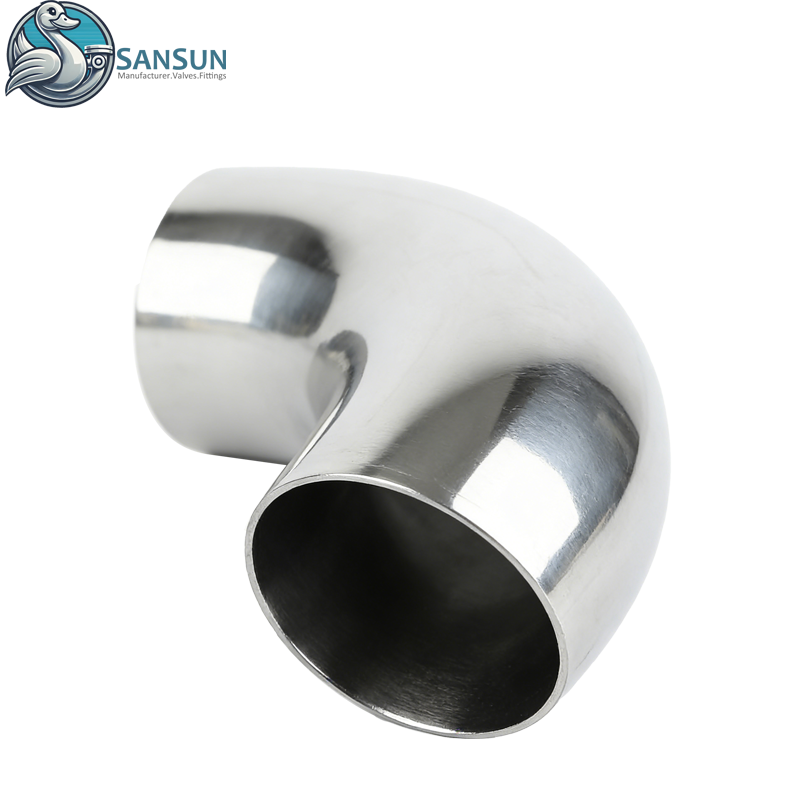

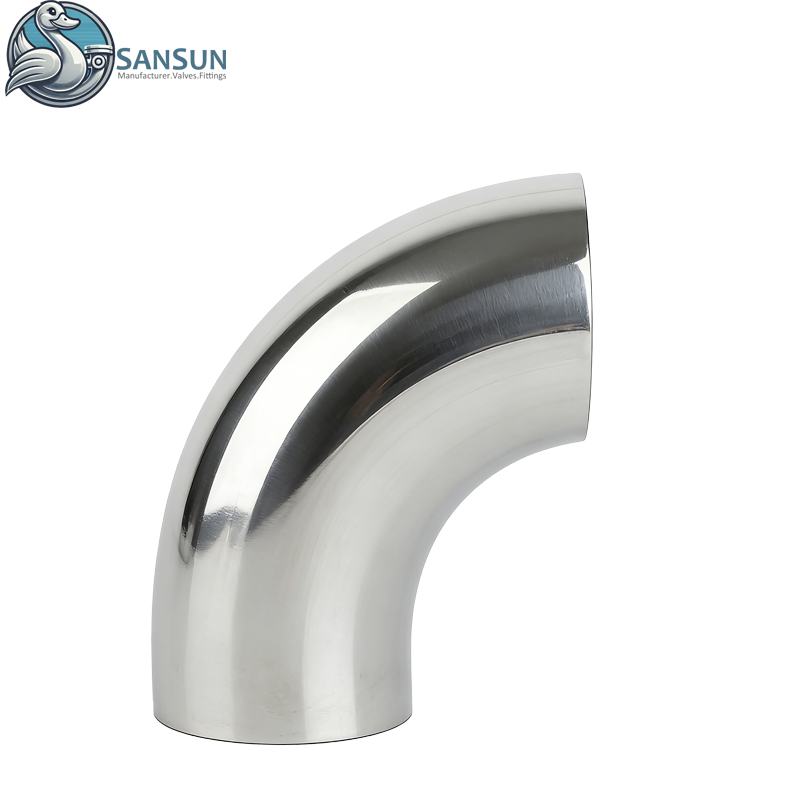

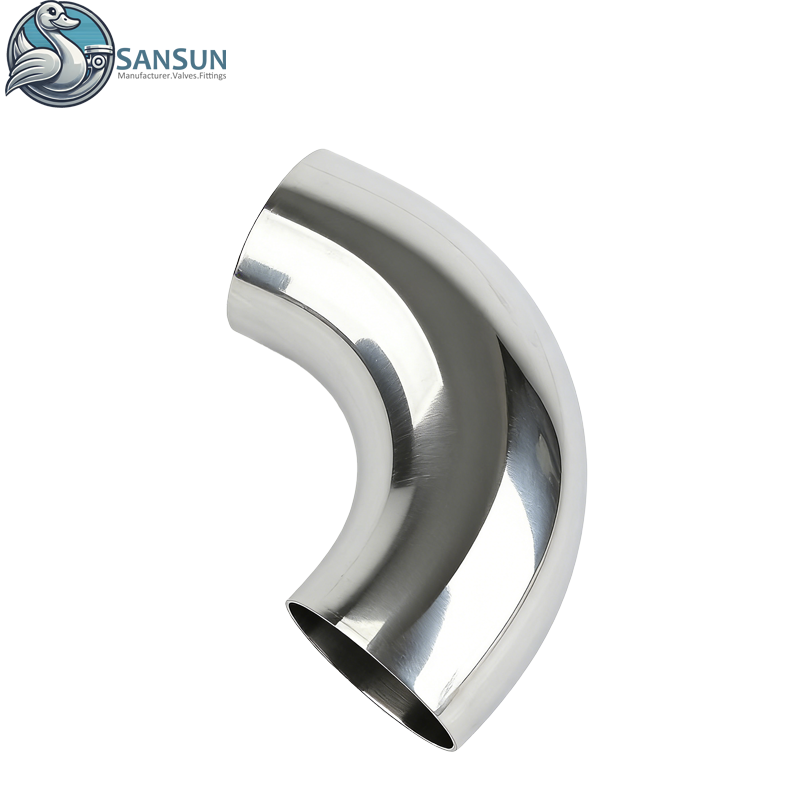

Data Center Liquid Cooling Stainless Steel 316L Welded 90° Elbow

Sansun Welded Elbow and fittings compliant with USA 3-A sanitary standard, constructed from sanitary stainless steel 304 or 316L, provide solid, durability, problem-free for weld or assemble, available in ASME BPE, 3-A, DIN, SMS, ISO, I-line standard,sansun's Elbow is comply with the OCP specification(Open Compute Project specification), Elbow for Data center liquid cooling, Elbow for Direct-to-Chip (DTC) cooling,Elbow for CDU(Coolant Distribution Unit).
Size:
Material:
Availability:
Quantity:
  • SANSUN

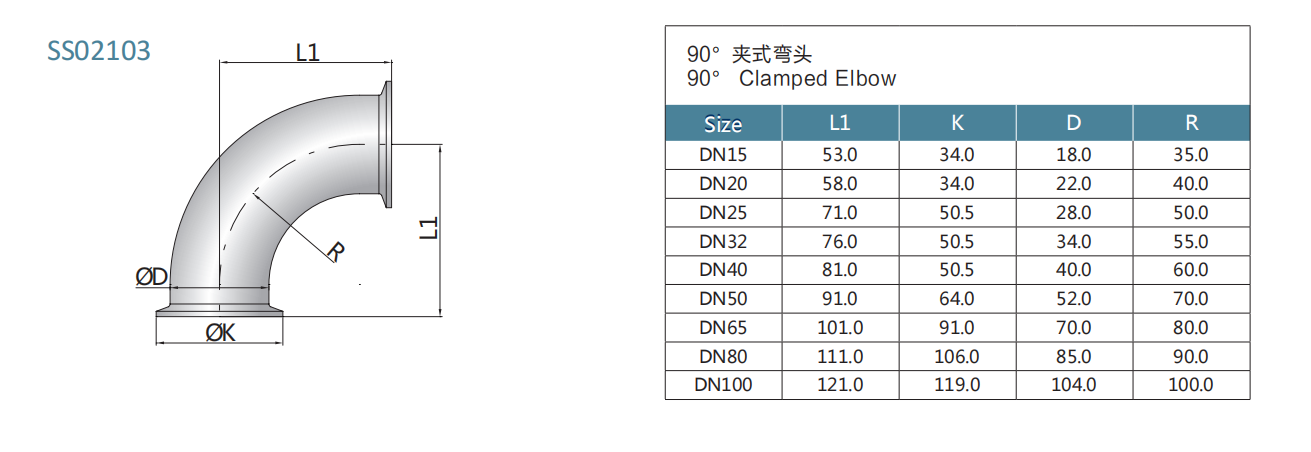

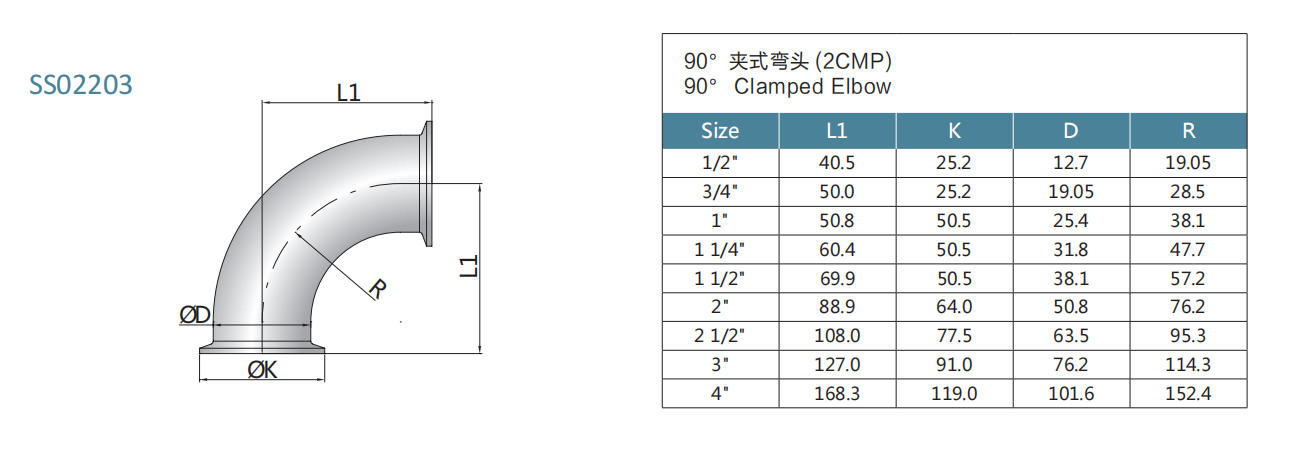

Size DN15-DN100,1/2"-4"
Valve Body Material: AISI304/AISI316L ,1.4404/1.4301   (Forged)
Vale Disc Material: AISI304/AISI316L ,1.4404/1.4301   (Forged)
Surface Finishing: Ra < 0.4-0.8 µm (32 µin)
Max Working Pressure: 145psi(10ba)
Helium Leak Test: <1 × 10⁻⁹ mbar・l/s
Cleanliness: Passivation treatment, Conforms to ASTM A380 standard
Availably standard: DIN/3A/ISO
Connection type Clamp End, Thread End, Weld End
Certification US 3-A, FDA, CE PED/2014/68/EC, Certification
Application scope:

sansun's Elbow  is comply with the OCP specification(Open Compute Project specification),    Elbow for Data center liquid cooling, Elbow for Direct-to-Chip (DTC) cooling,Elbow for CDU(Coolant Distribution Unit).
