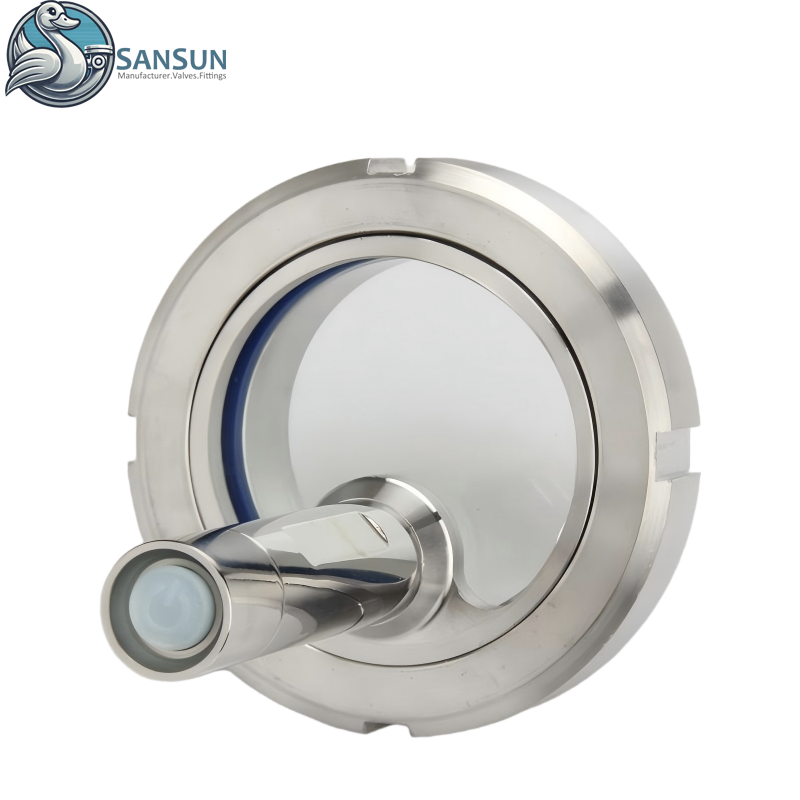

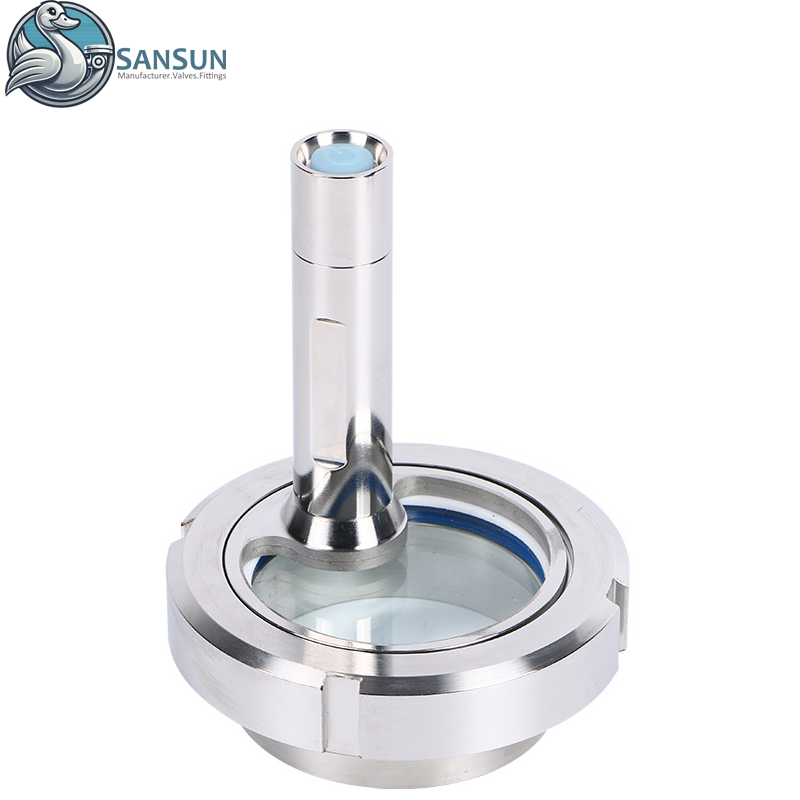

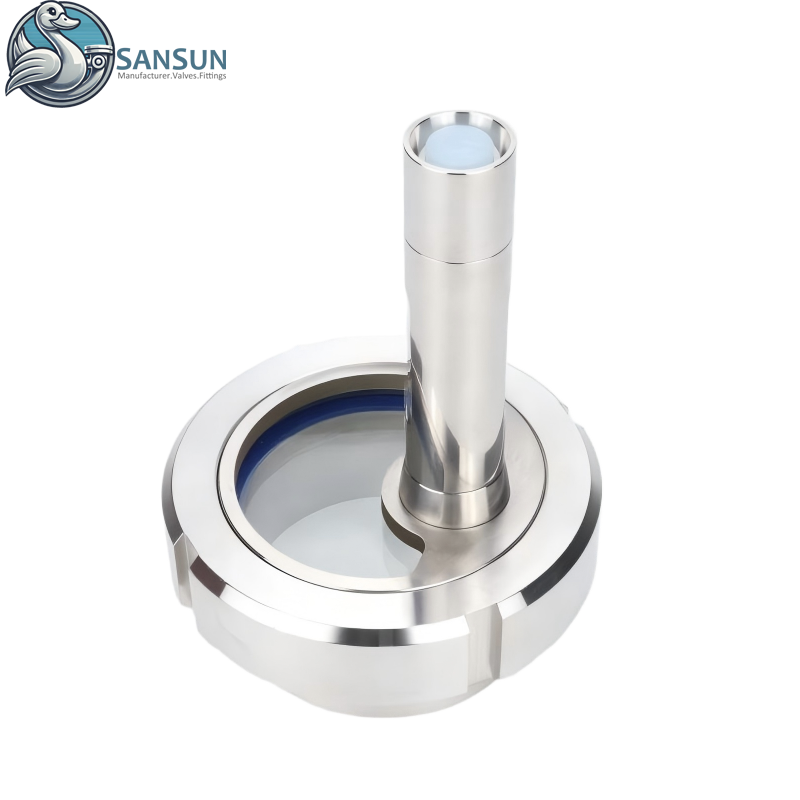

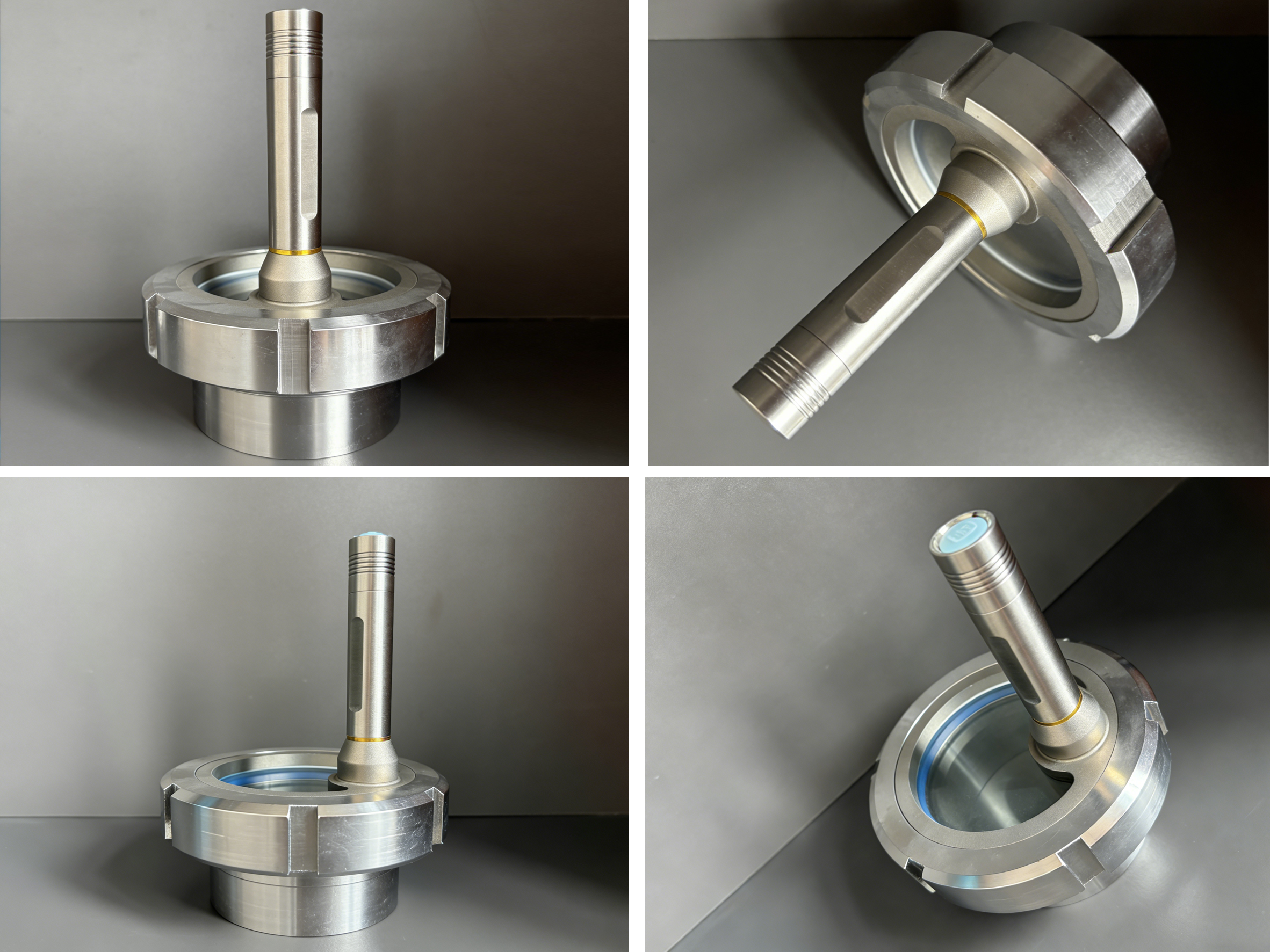

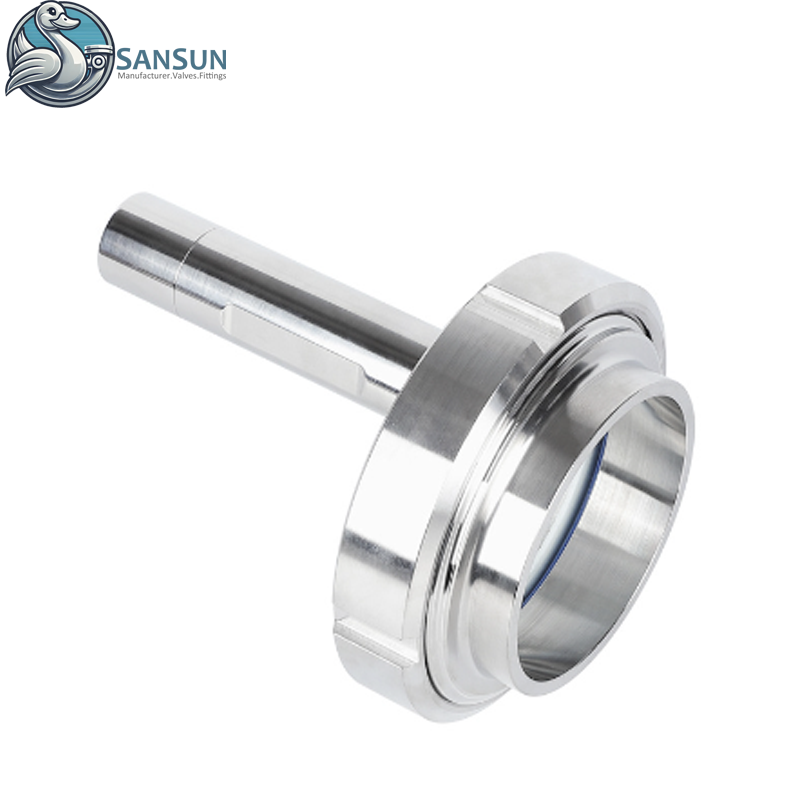

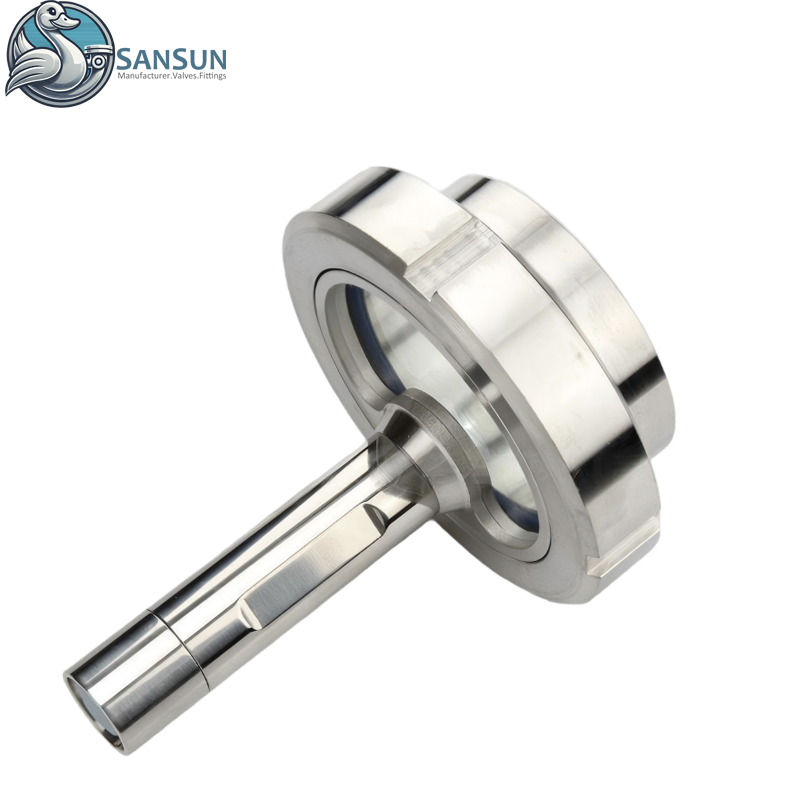

Data Center Liquid Cooling Solutions 316L Stainless Steel Luminaire Sight Glass

Sansun have many types of Sanitary Sight Glasses, include straight sight glass, aseptic sight glass, union sight glass, tri-clamp sight glass, four-way sight glass, flange sight glass. Constructed from hygienic stainless steel,resistant pressure up to 10bar, with FDA-approved gasket, full bore hygienic design, sight glass commonly used in the for Data center liquid cooling, Sight Glass for Direct-to-Chip (DTC) cooling，Sight Glass for CDU（Coolant Distribution Unit）
Size:
1"
1 1/4"
1 1/2"
2"
2 1/2"
3"
4"
DN20
DN25
DN32
DN40
DN50
DN65
DN80
DN100
DN150
Material:
SS304
SS316L
Availability:
Quantity:
Inquire Add to Basket

  • SANSUN

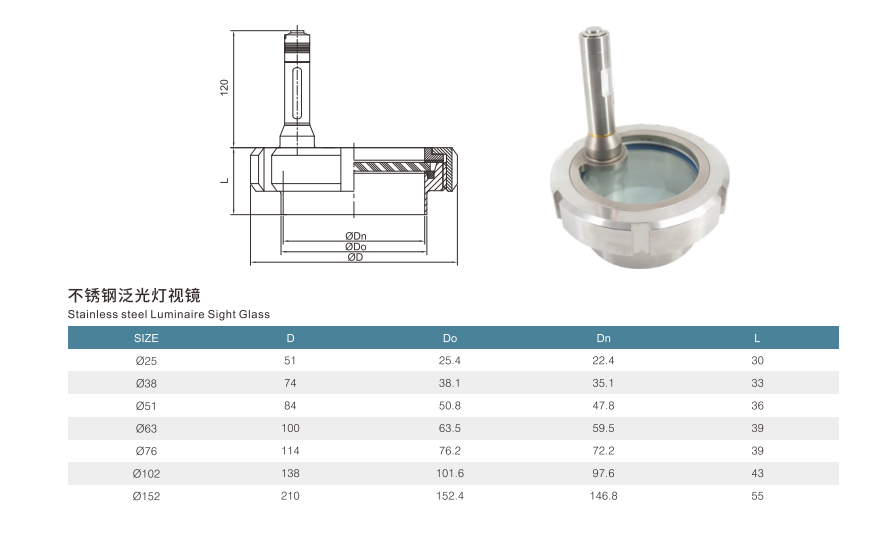

Size DN20-DN100,1"-4"
Valve Body Material: AISI304/AISI316L ,1.4404/1.4301   (Forged)
Vale Disc Material: AISI304/AISI316L ,1.4404/1.4301   (Forged)
Seal Material: EPDM
Surface Finishing： Ra < 0.4-0.8 µm (32 µin)
Max Working Pressure: 145psi(10ba)
Helium Leak Test: <1 × 10⁻⁹ mbar・l/s
Cleanliness: Passivation treatment, Conforms to ASTM A380 standard
Operating Principles: When pipeline pressue is bigger than valve spring pressure, the valve will open, when pipeline pressure is less or equal to the spring pressure, the valve will be closed.
Availably standard: DIN/3A
Connection type Clamp End, Thread End, Weld End，Flange End
Certification US 3-A, FDA, CE PED/2014/68/EC, Certification
Application scope:

sansun's Union Type Sight Glass  is comply with the OCP specification(Open Compute Project specification),    Union Type Sight Glass for Data center liquid cooling, Union Type Sight Glass for Direct-to-Chip (DTC) cooling，Union Type Sight Glass for CDU（Coolant Distribution Unit）.

421_sansun-factory-workshop-china-manufactuer-laser-marking (2)
