Data Center Liquid Cooling 316L Stainless Steel Tri-Clamp Butterfly Valves with Trigger Handle

Share to:

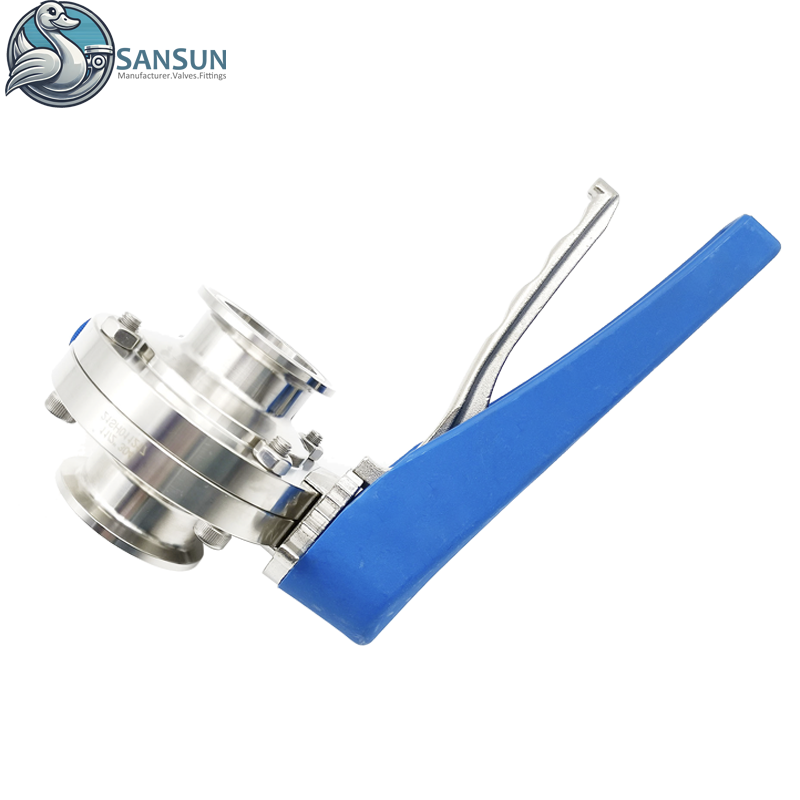

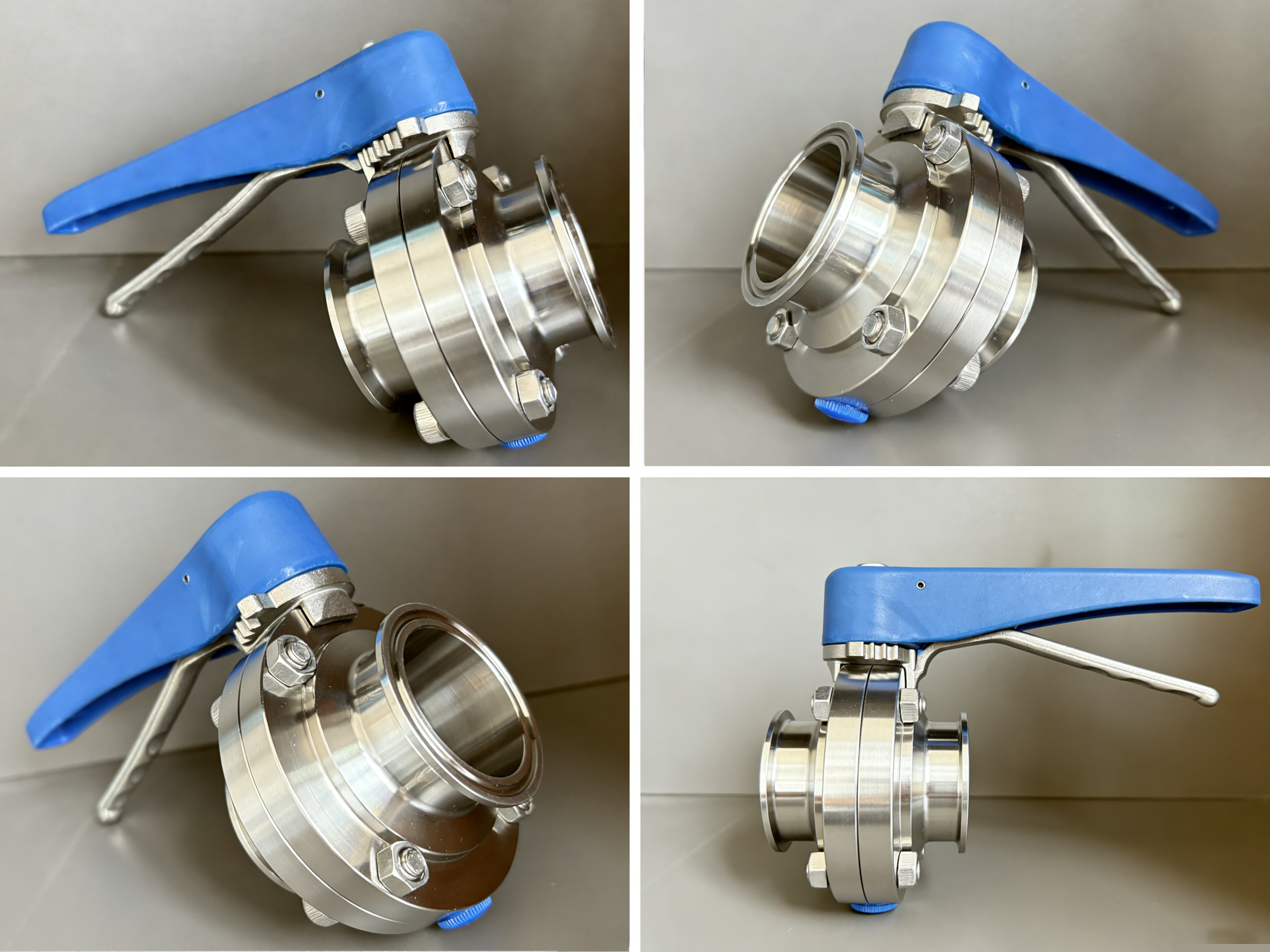

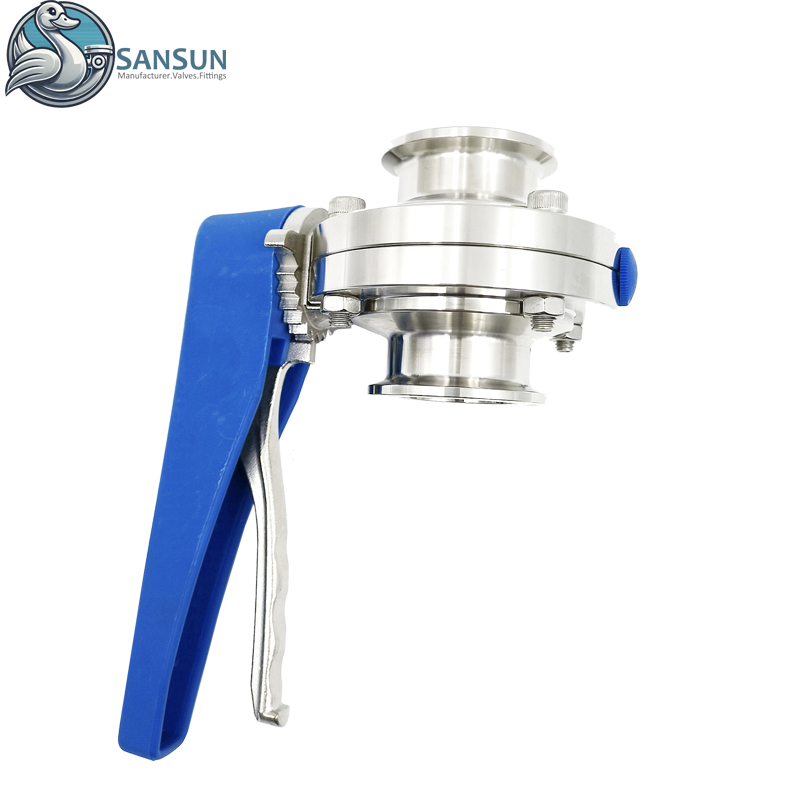

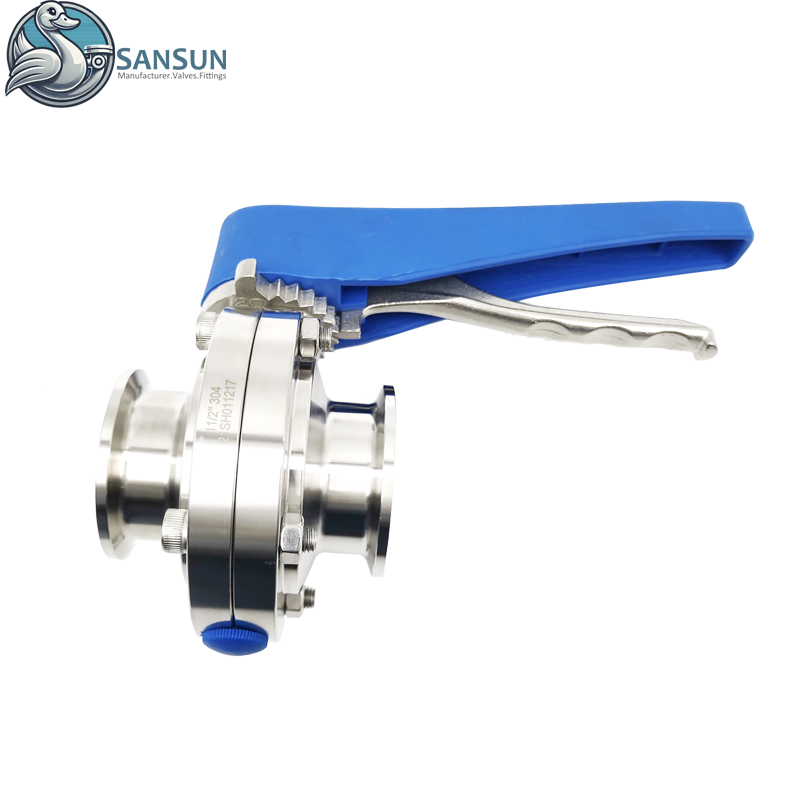

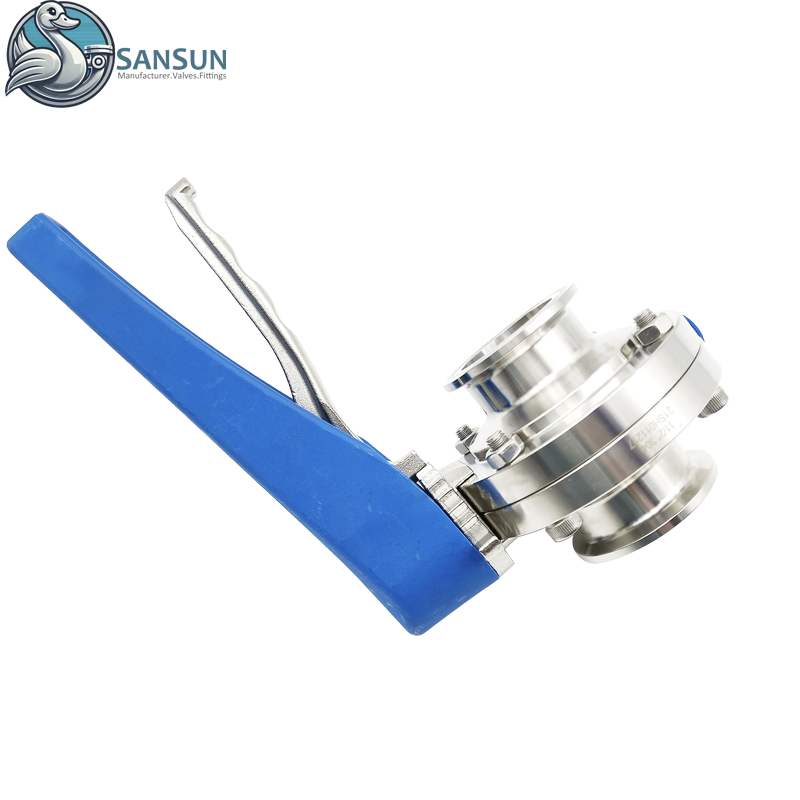

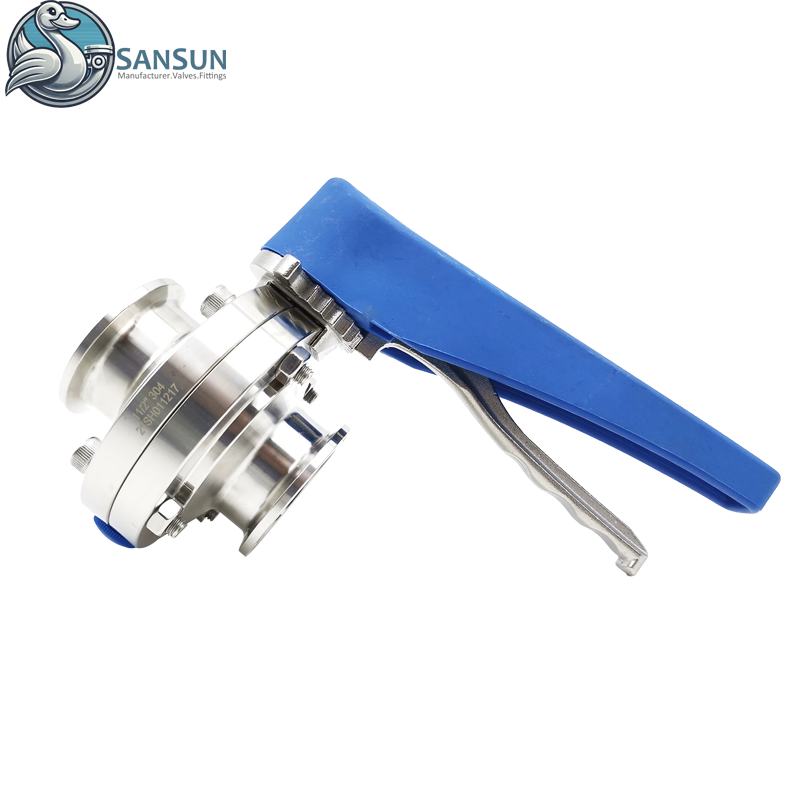

Data Center Liquid Cooling 316L Stainless Steel Tri-Clamp Butterfly Valves with Trigger Handle

Our clamp butterfly valve is an engineered fluid control solution designed for reliable shutoff, precise regulation, and seamless operation across industrial and sanitary-critical applications. Leveraging the advantages of clamp-style connections, this valve delivers unmatched convenience, durability, and compliance—making it the preferred choice for global buyers in food, pharmaceutical, chemical, and water treatment sectors.

Size:	1 1/2" 2" 2 1/2" 3" 4" DN10 DN15 DN20 DN32 DN40 DN50 DN65 DN80 DN100
Material:	SS304 SS316L
Availability:

Quantity:



Inquire Add to Basket

Brand:
SANSUN
Code:
SS-V1021

Size	1/2"-8"”(DN10-DN200)
Valve Body Material:	AISI304/AISI316L ,1.4404/1.4301 (Forged)
Valve Disc Material:	AISI304/AISI316L ,1.4404/1.4301 (Forged)
Seal Material:	EPDM,Silicone,FKM,FFKM,TEFLON,PTFE,HNBR,NBR
Surface Finishing：	Ra < 0.4-0.8 µm (32 µin)
Max Working Pressure:	145psi (10bar)
Helium Leak Test:	<1 × 10⁻⁹ mbar・l/s
Cleanliness:	Passivation treatment, Conforms to ASTM A380 standard
Operating Principles:	The handle blocks valve in Open or Close position,if with muti-position handle, other position is also available.
Availably standard:	DIN/3A/SMS/RJT/ISO/IDF
Manual Operation	Pull handle, Multi-position Plastic handle, Multi-position Stainless Steel Handle
Connection type	Clamp End,Thread End,Weld End
Pneumatic Operation	Sensor,Pneuamtic actuator(single acting,double acting),electric actuato,C-TOP, C-top controller(AS-1）
Certification	US 3-A, FDA, CE PED/2014/68/EC, Certification
Application scope:	sansun's butterfly valve is comply with the OCP specification(Open Compute Project specification), Butterfly valves for Data center liquid cooling, Butterfly valves for Direct-to-Chip (DTC) cooling，Butterfly valves for CDU（Coolant Distribution Unit）.
