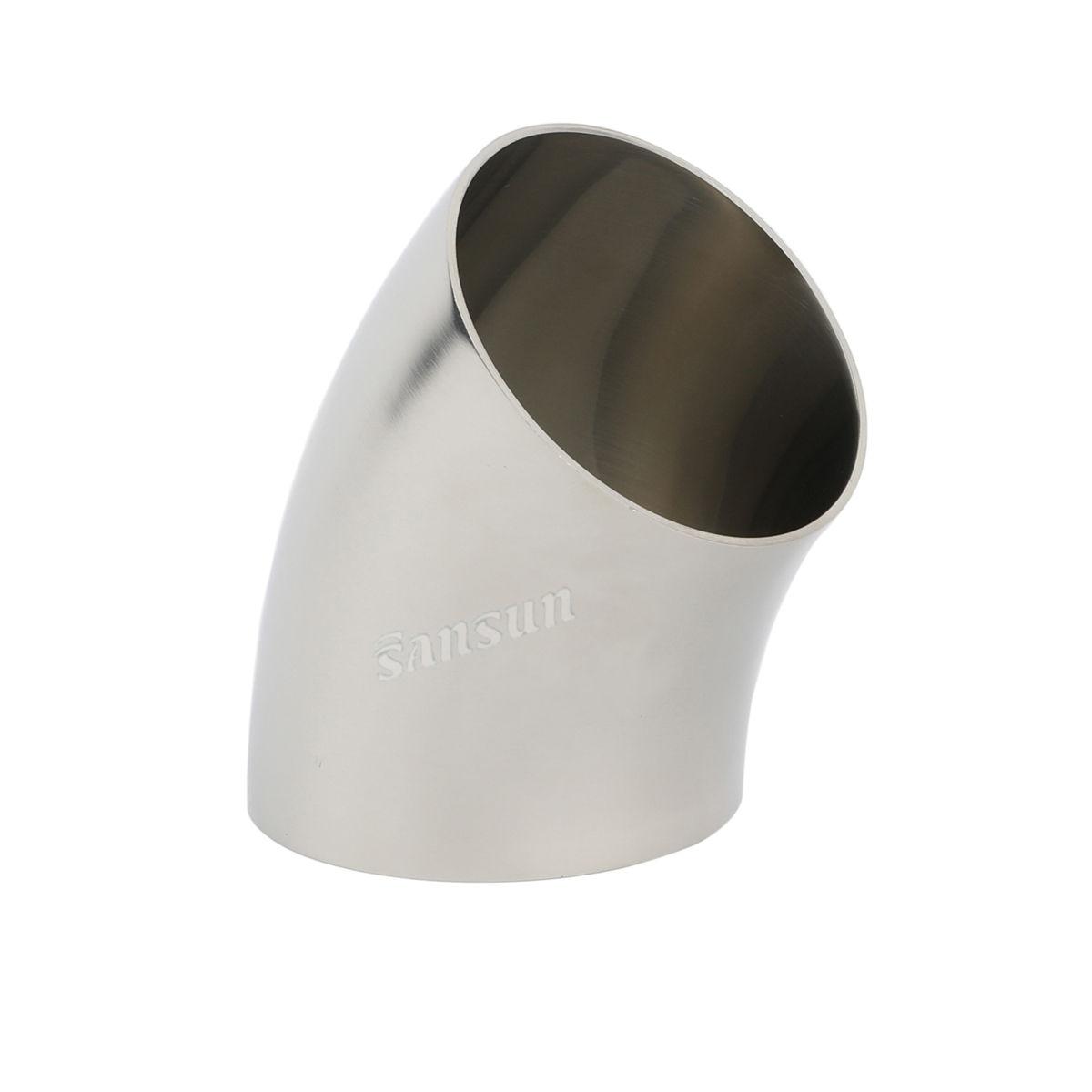

DIN Stainless Steel Sanitary Welded 45 Degree Elbow Bend

In the pipeline system, the elbow is a pipe fitting that changes the direction of the pipeline. According to the angle, there are three commonly used elbows of 45°, 90° and 180°, and other abnormal angle elbows such as 60° are also included according to engineering needs. The main difference between stainless steel elbows and carbon steel elbows is the difference in material. The chemical composition contained in the elbow will keep the surface of the elbow from rust and corrosion for a long time.
Size:
Quantity:
  • SANSUN
  • SS02104

Operating Principles

In the pipeline system, the elbow is a pipe fitting that changes the direction of the pipeline.

According to the angle, there are three commonly used elbows of 45°, 90° and 180°, and other abnormal angle elbows

such as 60° are also included according to engineering needs.

The main difference between stainless steel elbows and carbon steel elbows is the difference in material.

The chemical composition contained in the elbow will keep the surface of the elbow from rust and corrosion for a long time.

The elbow used in beer, beverage, dairy, fruit juice, pharmacy, bioengineering and other fields.

Materials

Materials: AISI-304 or AISI-316

Standard Design

Available sizes:DN 10-DN 150 or 3/4"-6"

Standards: DIN11850/DIN11852, SMS, ISO / IDF, BS / AS, ASME BPE

End connections: Weld

45 Degree Weld Elbow Applicable Occasions

45-degree-elbow-applicable-occasions

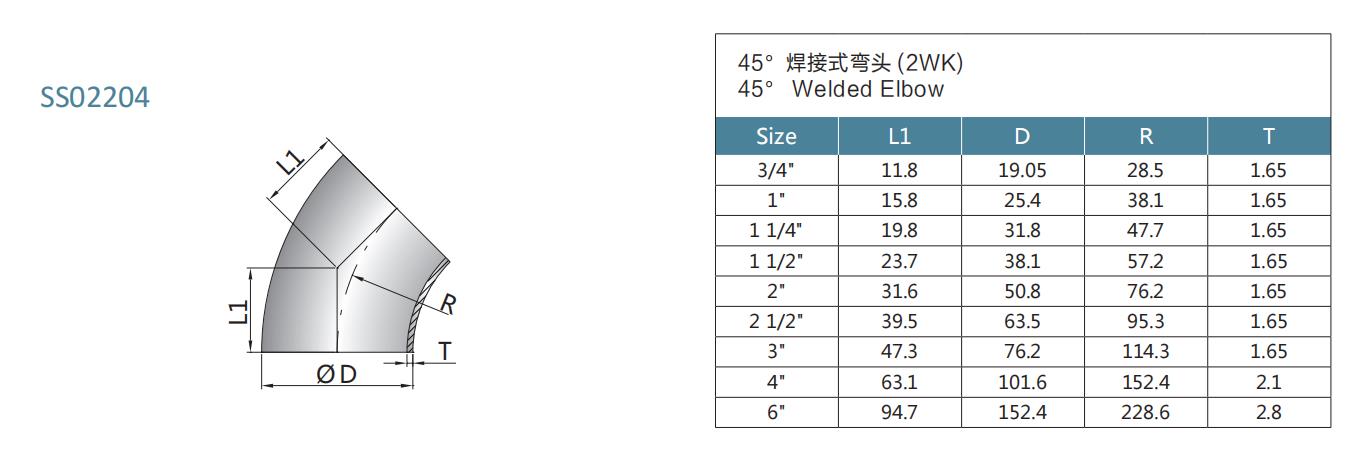

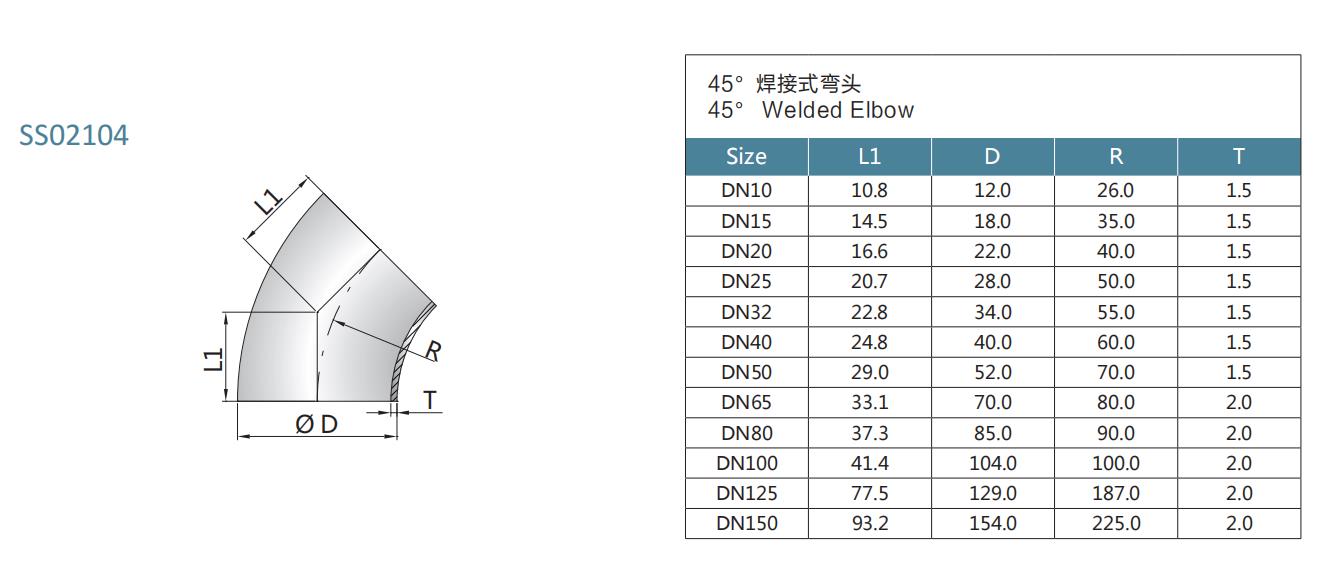

drawing of 3A weld 45 degree elbowdrawing-of-DIN-weld-45-degree-elbow
