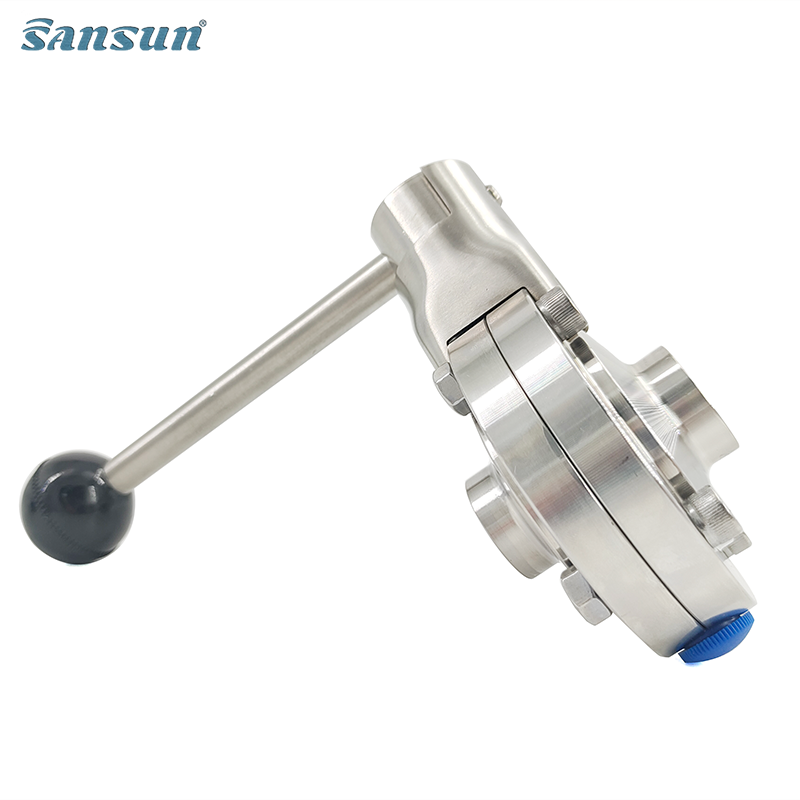

DIN Sanitary Butterfly Valve - Butt Weld End / Pull Handle

Operating Principles

Sanitary Steel Good Quality Welded Butterfly Valve

The Welded butterfly valves can be operated automatically through actuator or manually with the handle.

The handle blocks the valve in the "open" or "closed"position, of course there are the other position available.

The actuator push piston of axial movement into 90 °，which controls butterfly valve.

The butterfly valves used in beer, beverage, dairy, fruit juice, pharmacy, bioengineering and other fields.

Technical Specifications

Max.pressure: 10 bar (DN-25/100);8 bar (DN-125/150)

Min.pressure: 0.2 bar p.abs

Operating temperature:-10℃ to +120℃ (EPDM)

Materials

Butterfly plate: AISI316L/304(forged)

Valve body: AISI316L/304(forged)

Handle: AISI304/PP

Surface finishing: Ra=0.8

Standard Design

Available in sizes from DN10 / 1/2" to DN200/ 8"

The size of multi-position handle uo to DN100 / 4"

The size of pull handle up to DN125 / 150 / 6"

Standard Avaliable: DIN, SMS, ISO, IDF, RJT, IDF, 3A

Connection: weld, clamp, thread, single weld single thread, flange

Handle:Pulling handle/Multi-positon handle/multi-position stainless steel handle

Control: position sensor, C-TOP controller, C-TOP controller(AS-I)

Butterfly Valves Curve

Butterfly Valve Handle Style

Exploded view of Butterfly Valve with Pulling Handle

Package
