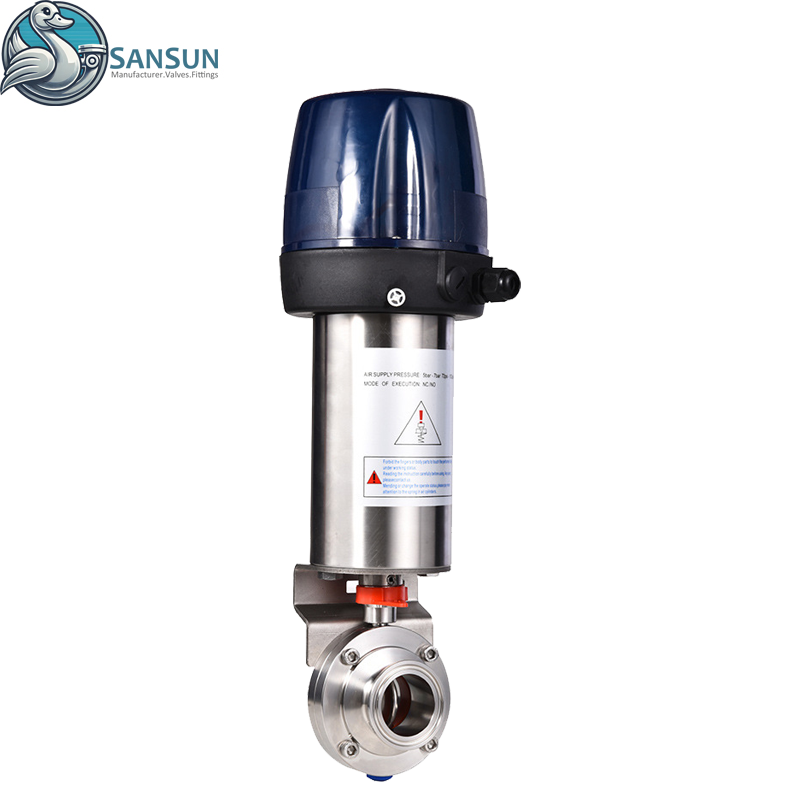

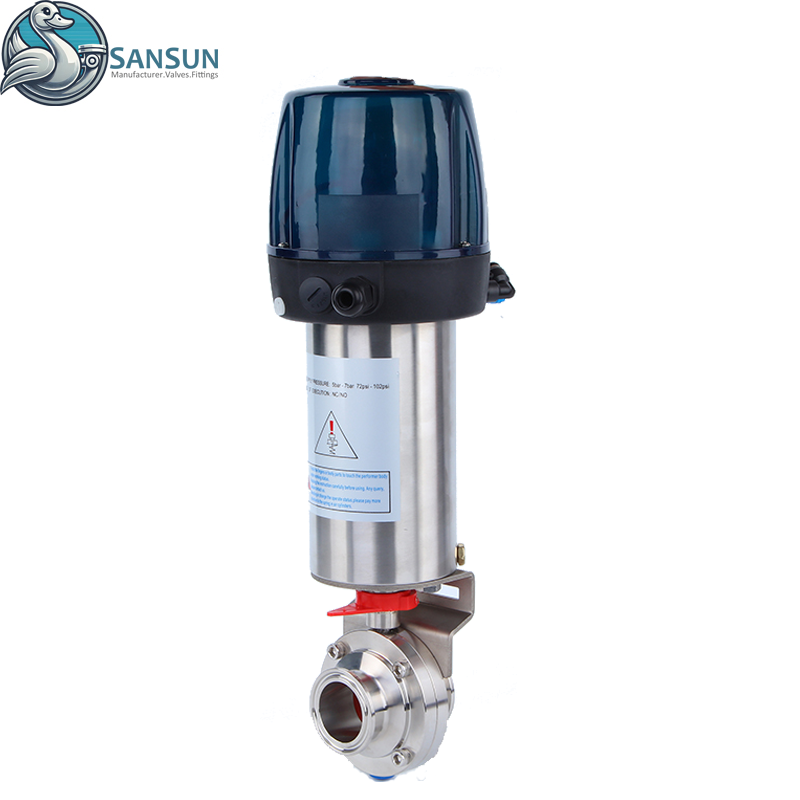

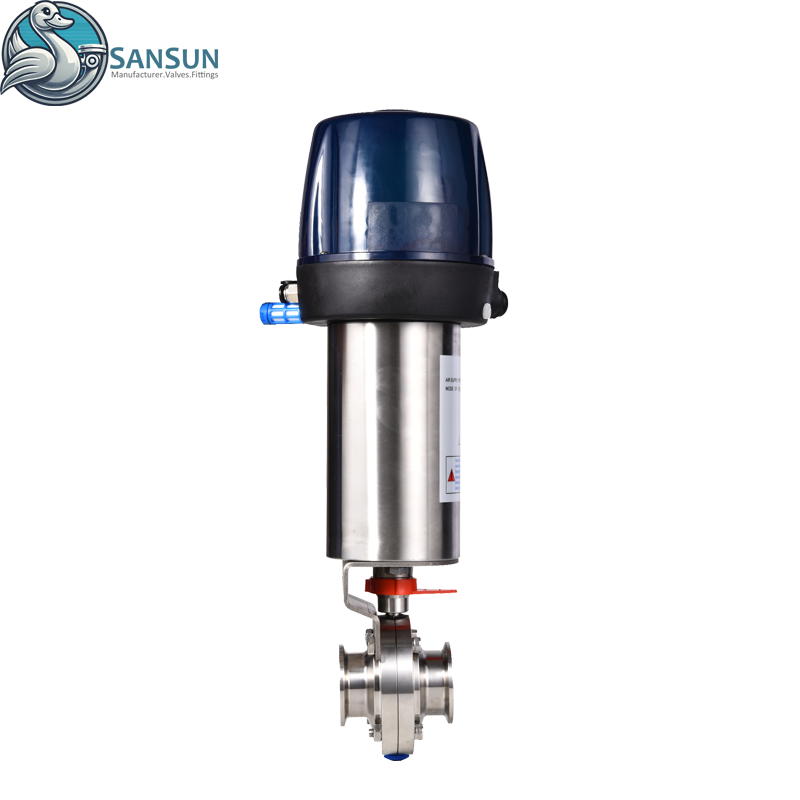

DIN PNEUMATIC CLAMP BUTTERFLY VALVE WITH PLASTIC C-TOP

Operating Principles

Pneumatic clamp butterfly valve can be automatically operated by actuator

The handle blocks the valve in the "open" or "closed"position, certainly there are the other position available.

The actuator push piston of axial movement into 90 degree so that it controls butterfly valve.

The butterfly valves used in beer, beverage, dairy, fruit juice, pharmacy, bioengineering and other fields.

Technical Specifications

Max.pressure: 10 bar (DN-25/100);8 bar (DN-125/150)

Min.pressure: 0.2 bar p.abs

Operating temperature:-10℃ to +120℃ (EPDM)

Materials

Butterfly plate: AISI316L/304(forged)

Valve body: AISI316L/304(forged)

Surface finishing: Ra=0.8

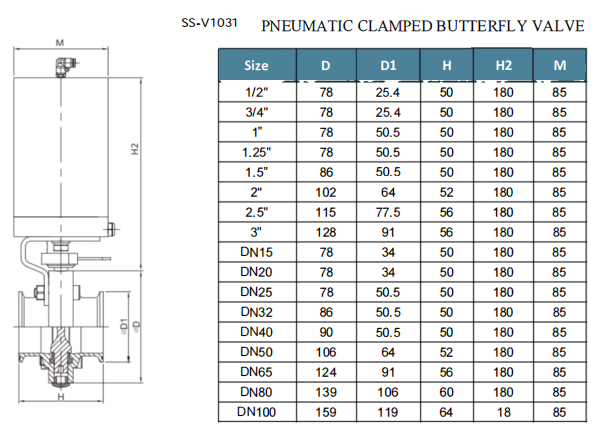

Standard Design

Available in sizes from DN15 / 1/2" to DN100 / 3"

Standard Avaliable: DIN, SMS, ISO, IDF, RJT, IDF, 3A

Connection: weld, clamp, thread, single weld single thread, flange

Actuator: pneumatic stainless steel actuator, pneumatic aluminum actuator, electric actuator

Control: position sensor, C-TOP controller, C-TOP controller(AS-I)

Butterfly Valves Curve

Different Drive Way of Pneumatic Butterfly Valve

Exploded view of Intelligent pneumatic butterfly valve

Inspection

All kinds of non-standard products are customized according to the requirements of customers.

Products can be traced back to the manufacturing and time of each process to ensure the quality of products.
