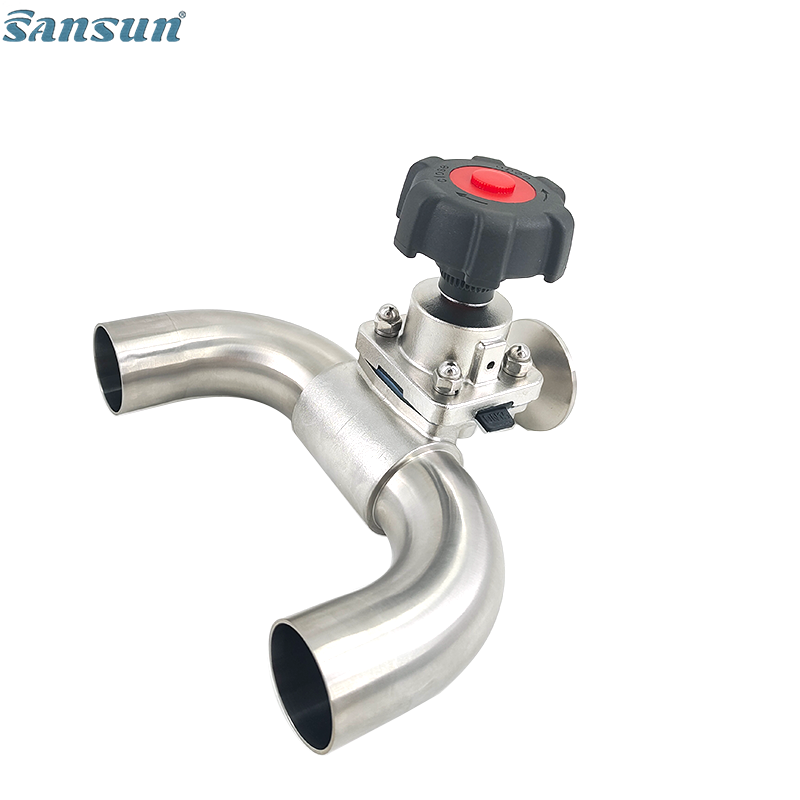

DIN Hygienic three way U-Type Diaphragm Valve

The diaphragm seal the body and seat, can't touch the outside environment, so diaphragm valve is suitbale for aseptic process. When Valve closed, the pressure press the valve to seal, then the pressure board moves down to the centre of the body.
Size:
10/20
20/25
20/32
20/40
20/50
20/65
25/32
25/40
25/50
25/65
32/40
32/50
32/65
40/50
40/65
50/65
50/80
Material:
SS316L
Availability:
Quantity:
Inquire Add to Basket

  • SANSUN

Operating Principles

The diaphragm valves can be operated automatically through actuator or manually with the handwheel.

The handwheel blocks the valve in the "open" or "closed"position, certainly there are the other position available.

The closing and opening of the actuator is realized by the pressure from the pipeline acting on the reinforced rubber diaphragm.

The diaphragm valves used in beer, beverage, dairy, fruit juice, pharmacy, bioengineering and other fields.

Technical Specifications

Max.pressure: 147psi (10bar)

Operating temperature:-10℃ to +120℃ (EPDM)

Available for CIP/SIP

Materials

Valve body: AISI316L

Diaphragm: EPDM+PTFE or EPDM

Standard Design

Available in sizes from DN10/10  / 1/2-1/2" to DN50/80 / 2-3"

Standard Avaliable: DIN, SMS, ISO / IDF, BS / RJT, ASME / BPE

Connection: weld, clamp, or others upon request

Body type: T-type tee, U type tee, Mini type, tank bottom type, etc

The Diaphragm of Diaphragm Valve

the-diaphragm-of-diaphragm-valve

Package

U Type Three Way Diaphrgam Valve1

U three diaphragm valve

U Type Three Way Diaphrgam Valve
