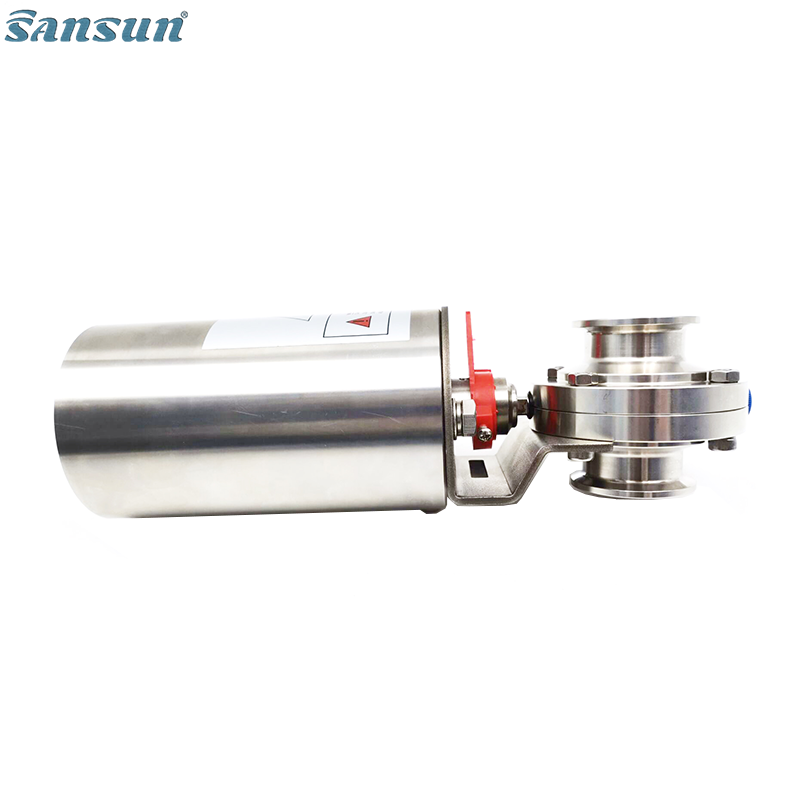

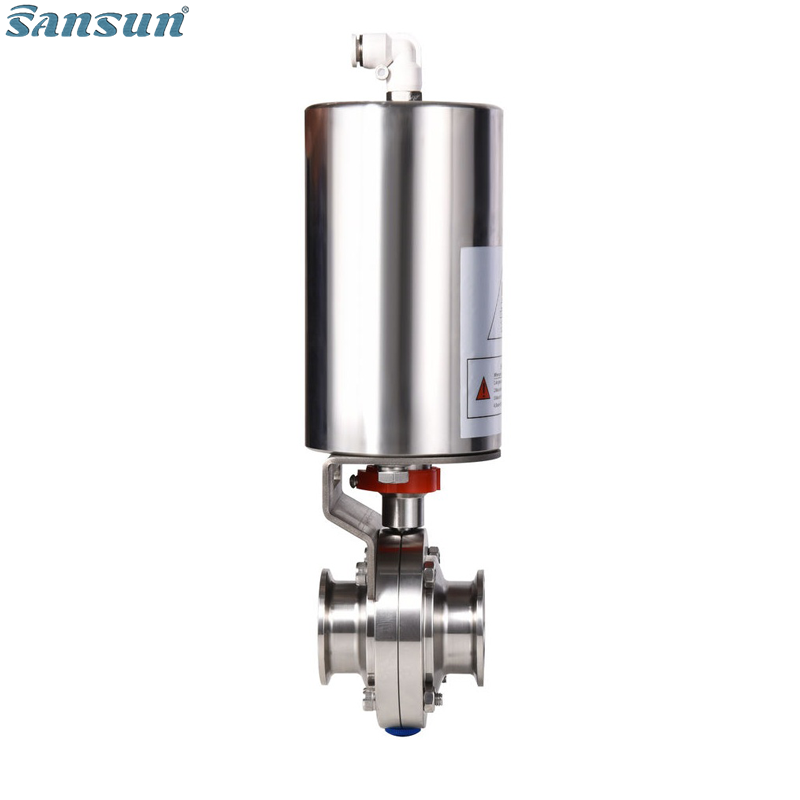

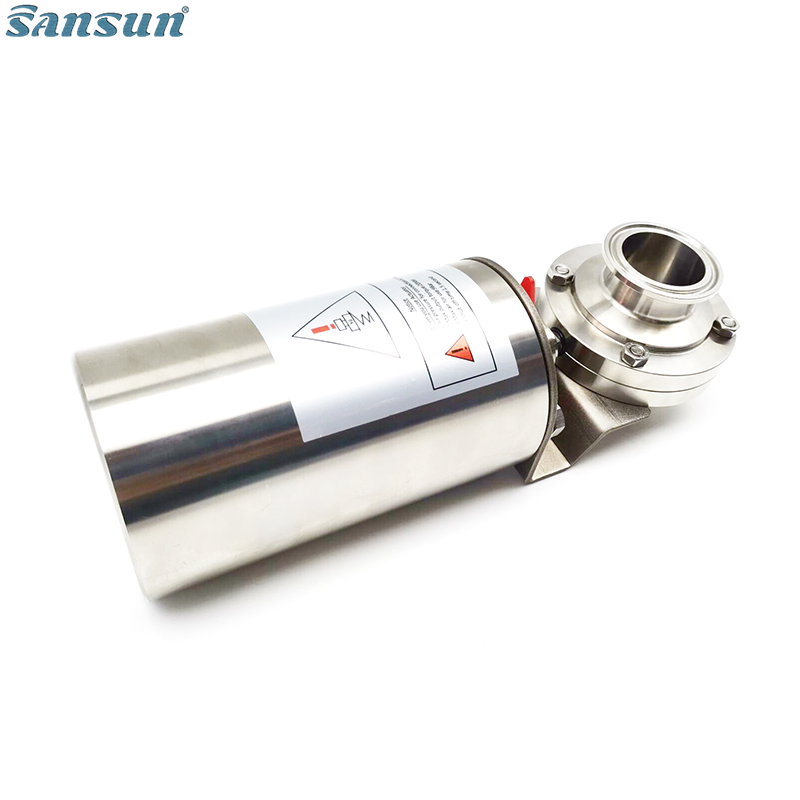

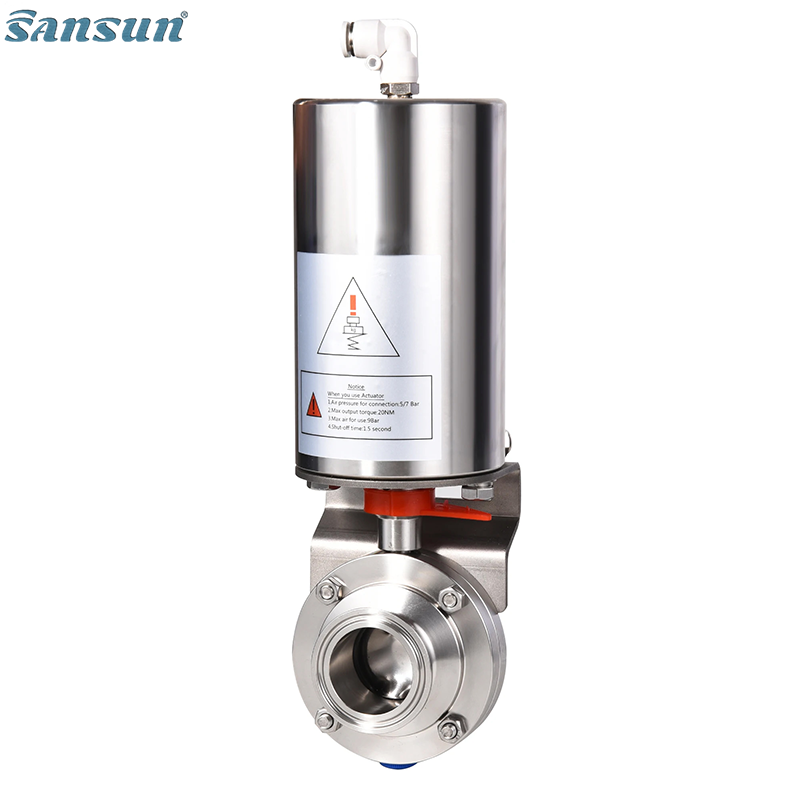

Clamp single acting pneumatic operated sanitary butterfly valve

Operating Principles

Pneumatic clamp butterfly valve can be automatically operated by actuator

The actuator push piston of axial movement into 90 degree so that it controls butterfly valve.

The butterfly valves used in beer, beverage, dairy, fruit juice, pharmacy, bioengineering and other fields.

Technical Specifications

Max.pressure: 10 bar (DN-25/100);8 bar (DN-125/150)

Min.pressure: 0.2 bar p.abs

Operating temperature:-10℃ to +120℃ (EPDM)

Materials

Butterfly plate: AISI316L/304(forged)

Valve body: AISI316L/304(forged)

Surface finishing: Ra=0.8

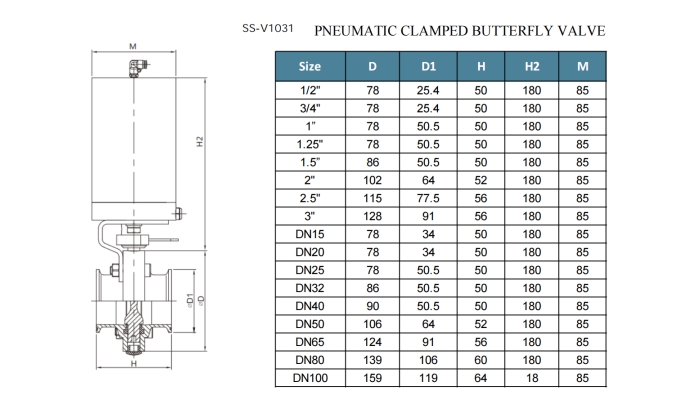

Standard Design

Available in sizes from DN15 / 1/2" to DN100 / 3"

Standard Avaliable: DIN, SMS, ISO, IDF, RJT, IDF, 3A

Connection: weld, clamp, thread, single weld single thread, flange

Actuator: pneumatic stainless steel actuator, pneumatic aluminum actuator, electric actuator

Control: position sensor, C-TOP controller, C-TOP controller(AS-I)

PNEUMATIC ACTUATOR

Different Drive Way of Pneumatic Butterfly Valve

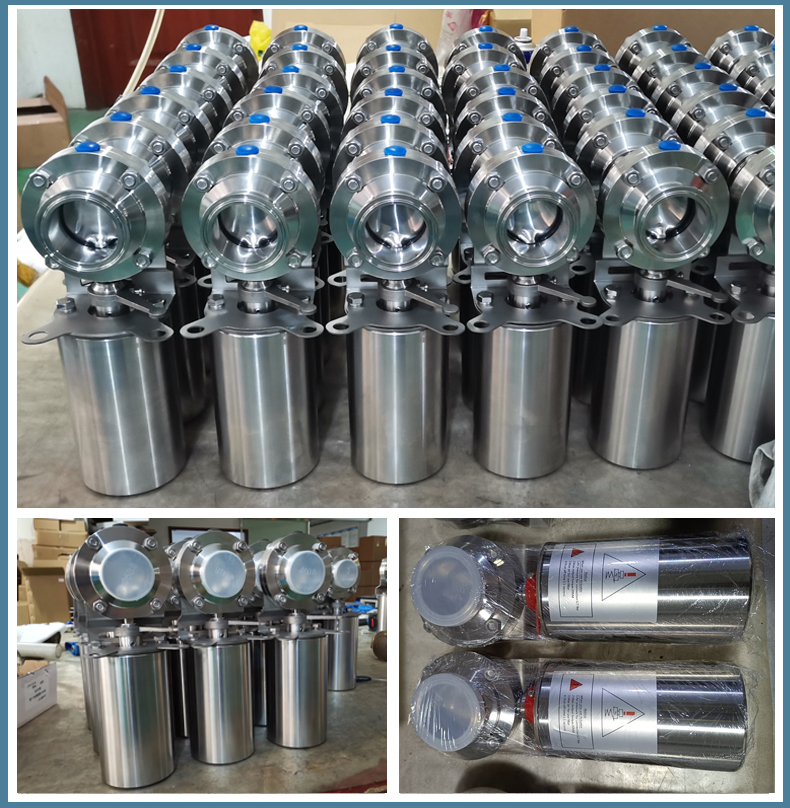

Package
