SANSUN
Operating Principles

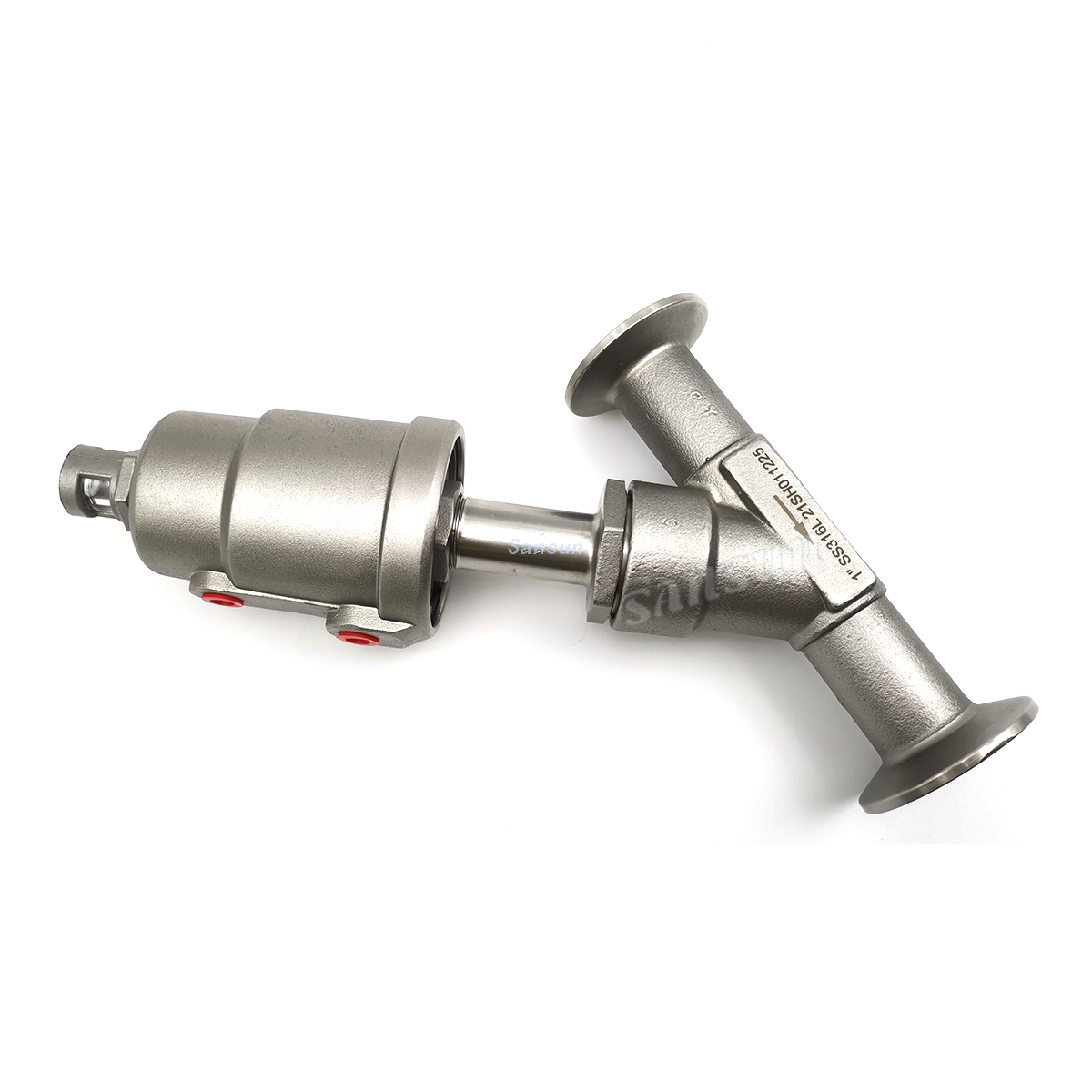

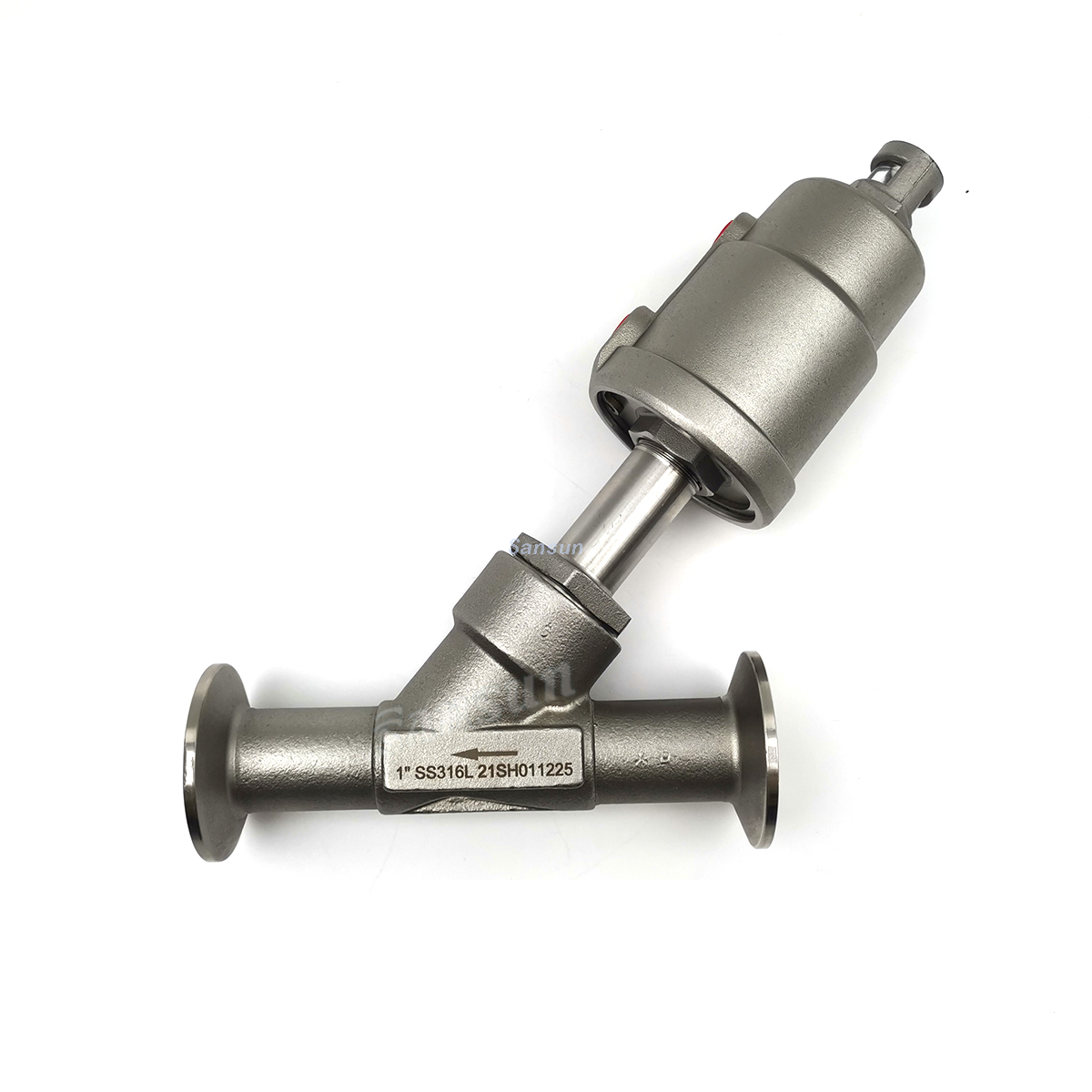

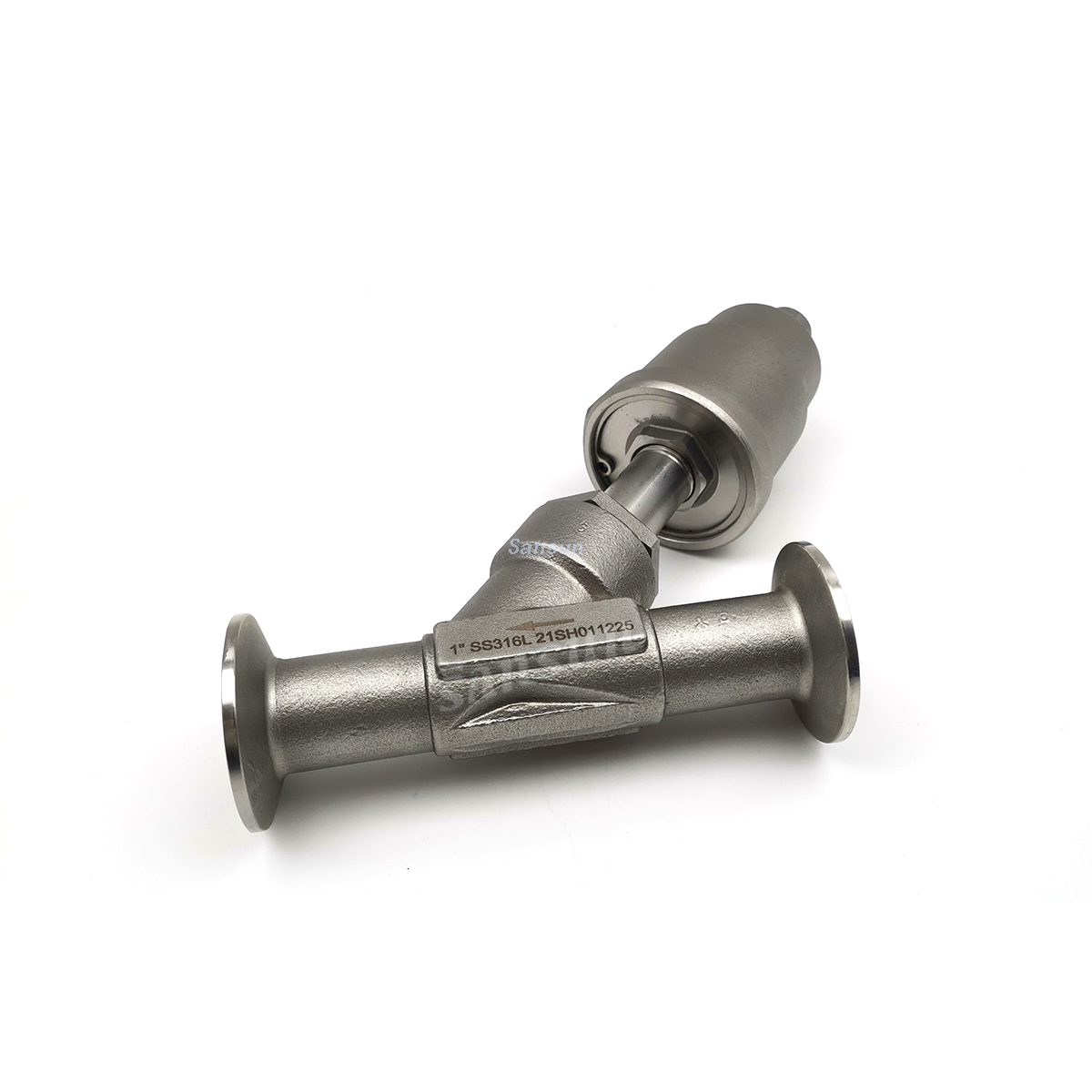

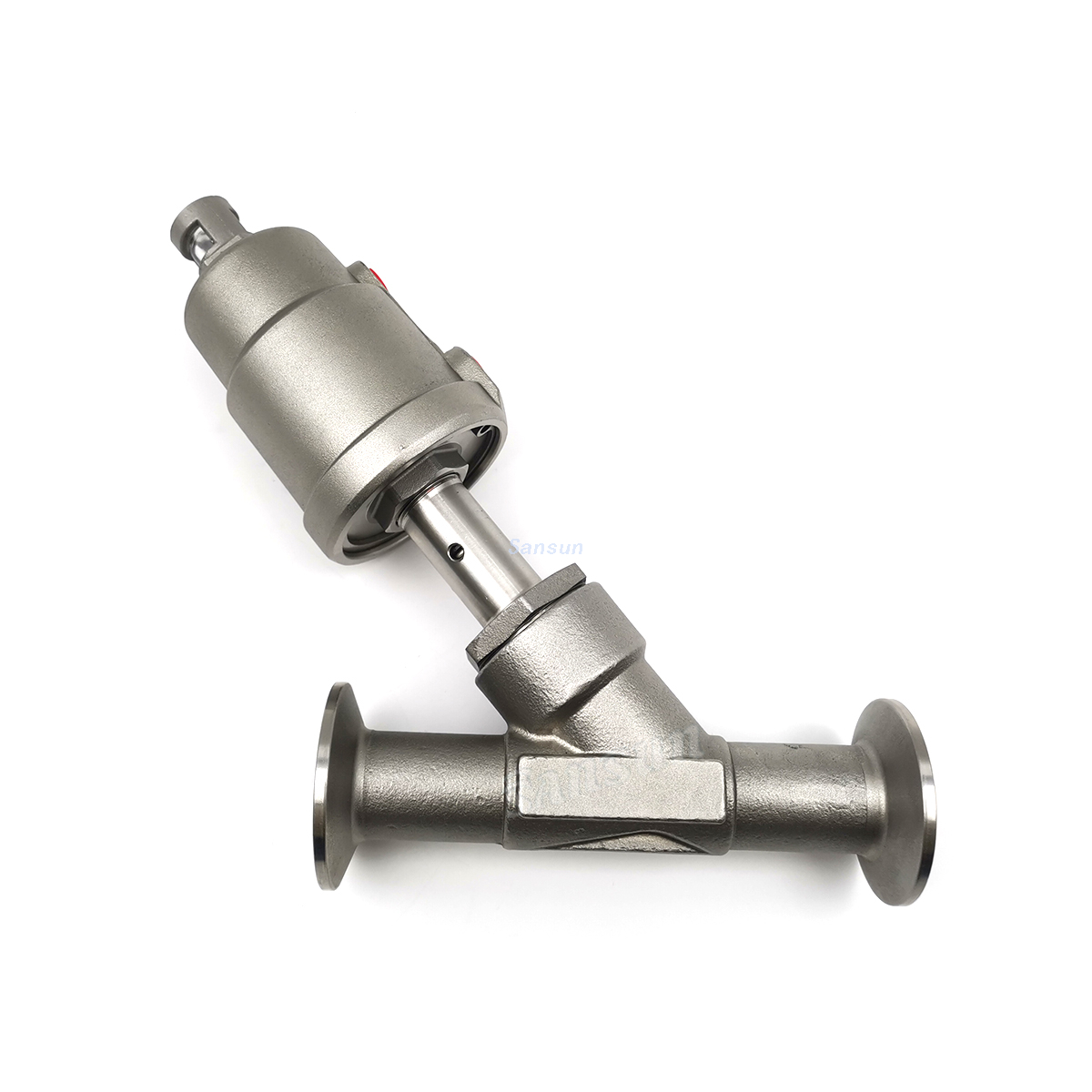

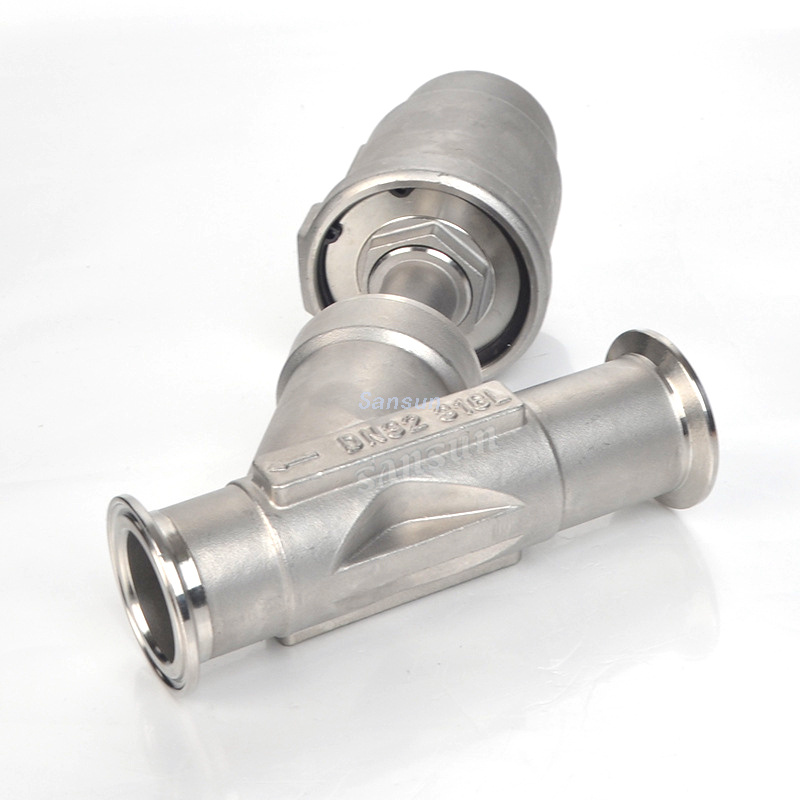

Clamp Pneumatic Angle Seat Valve stainless steel Head
Pneumatic angle seat valve can save space by maintaining flow rate. It adopts guided angle seat valve operated by single-acting
pneumatic actuator with spring safety protection. It has a unique appearance and compact structure. With soft sealing function, it is not
controlled by the flow direction of the medium. It can be used as a cut-off function, but also as a flow adjustment function. Pneumatic
angle seat valve is widely used for frequent start in a short time, and has the characteristics of sensitive response and accurate action.
The angle seat valves used in beer, beverage, dairy, fruit juice, pharmacy, bioengineering and other fields.
Technical Specifications
Fluid Pressure: Max 1.6MPa (232psi)
Control Pressure: 0.3-0.8MPa (43.5-116Psi)
Media Temerature: -10℃-+180℃
Ambient Temperature: -10℃-+55℃
Body Materials: CF8M(SS316),CF8(SS304)
Actuator Material: PA polyamide, CF8(SS304)
Seals Material: PTFE
Materials
Valve body: AISI316L/304
Seals material: EPDM+PTFE or EPDM
Standard Design
Available Size: DN20-DN65
Standard Avaliable: DIN, SMS, ISO / IDF, BS / RJT, ASME / BPE
Connection End: Female, Weld, Tri-clamp, Flanged or on request
Operation: Normally Closed, Normally Open, Double-acting or Manually
Inspection
All kinds of non-standard products are customized according to the requirements of customers. Products can be traced back
to the manufacturing and time of each process to ensure the quality of products.
Package for Clamp Pneumatic Angle Seat Valve stainless steel Head
