SANSUN
Operating Principles
The manway is a ideal way to check or clean tank inside, also can beused as feed port.
There are round, rectangular,elliptical, and pressure type,1-5 bar pressure is common use,customized is available.

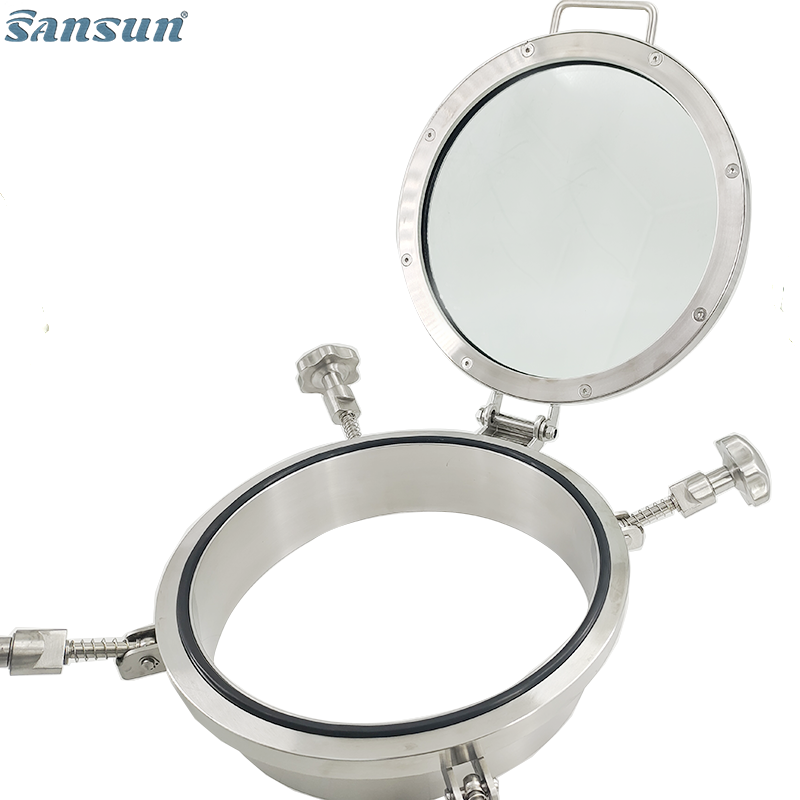

When need repair the tank,first to unscrew the handwheel(use to fixed manhole cover and supply the force to axial seal),
then open the manhole cover by the handle which fixed in the manhole cover (manhole cover is jointed together by hinge
and frame,to ensure accuately closure when the manhole cover close,and the hinge can let the opened manhole cover stop
above 30 degree angle of upright position),thus the serviceman can check the storage tank,when the manhole cover closed,
both of the seal of manhole cover and the tank can ensure complete sealing ,so we can avoid leakage of the tank.
The whole glass pressure type manhole is mainly used in a variety of food, wine, beverage, pharmaceutical and other industrial fields of pressure vessel
Technical Specifications

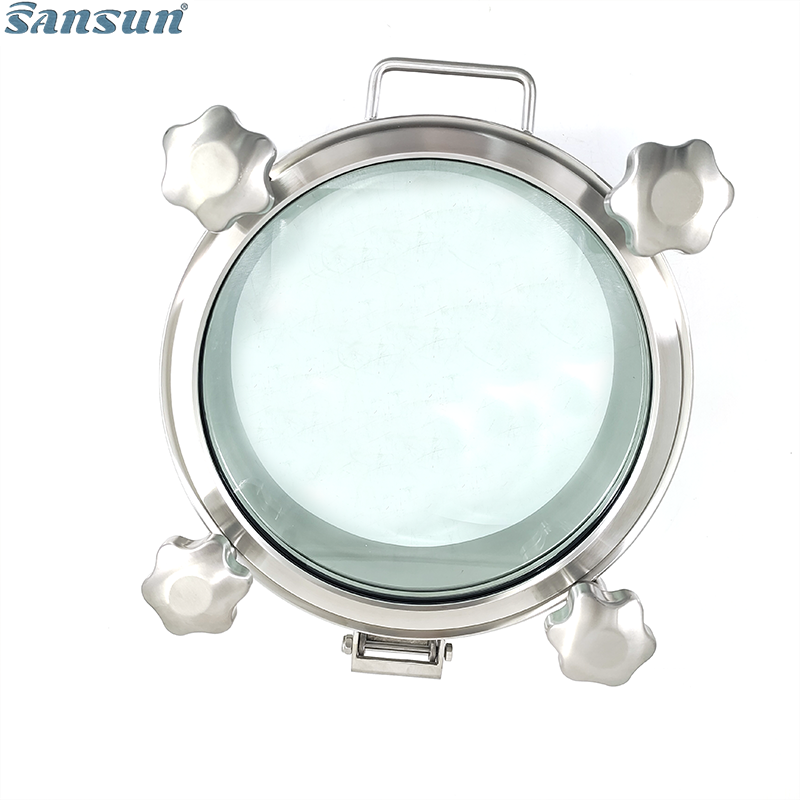

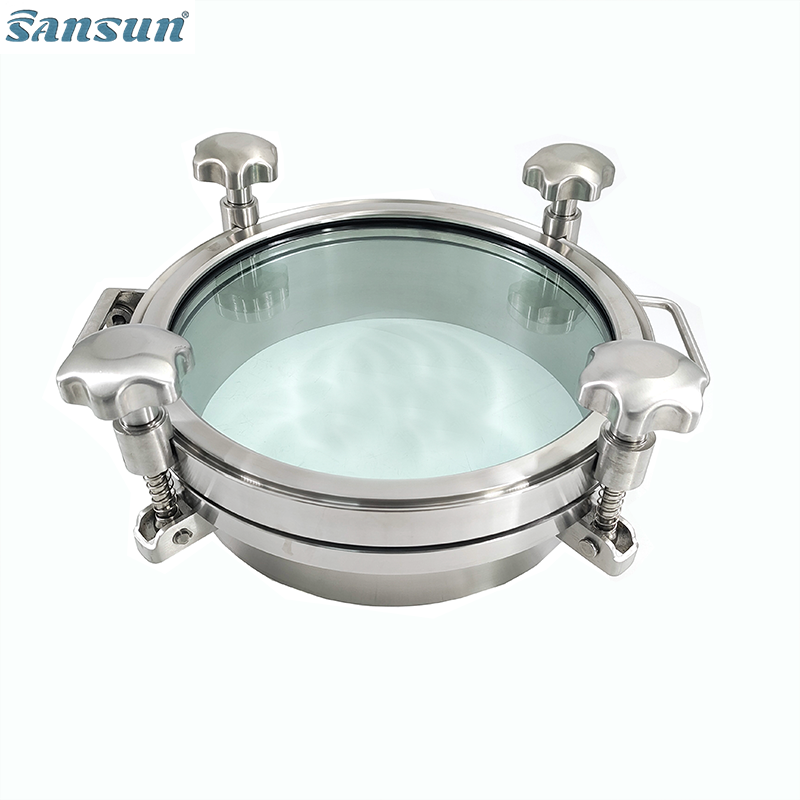

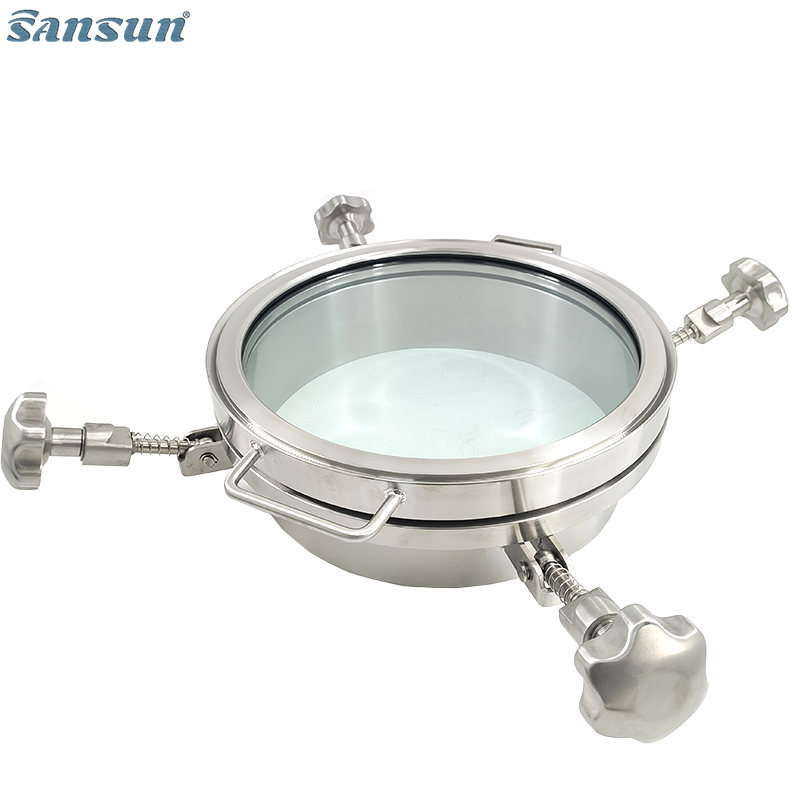

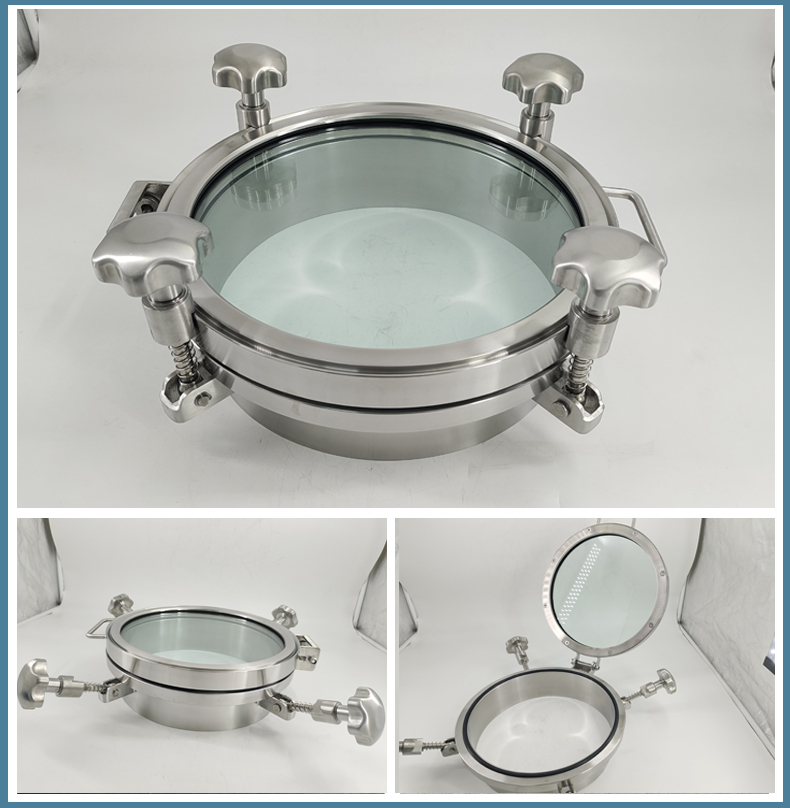

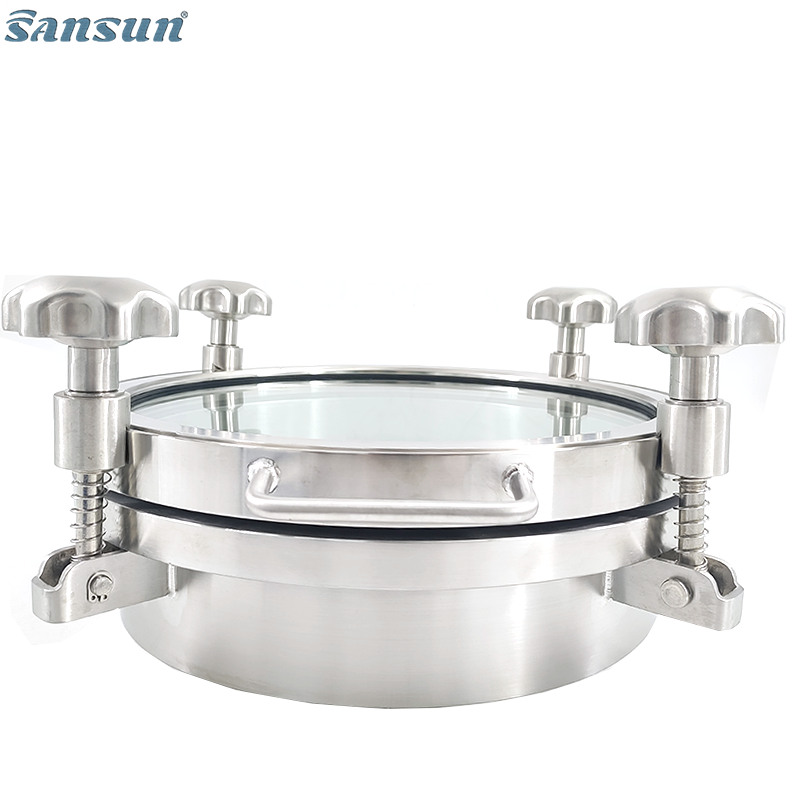

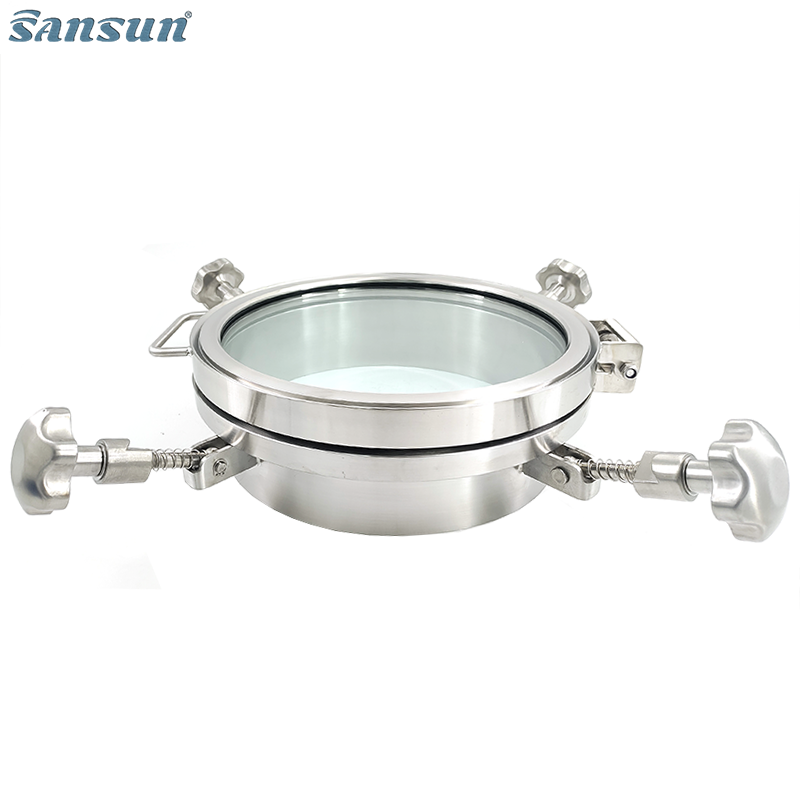

Whole glass manhole cover
Working Pressure: 2-5bar
lnternal surface: Ra0.8um-0.5um
Outside surface: Mirror polish, matt finish, sand-blasting finished.
Materials
Material:AISI304(1.4301)/316L(1.4404)
Gasket: EPDM,NBR,SLICON,FPM conform to FDA117.1600
Standard Design

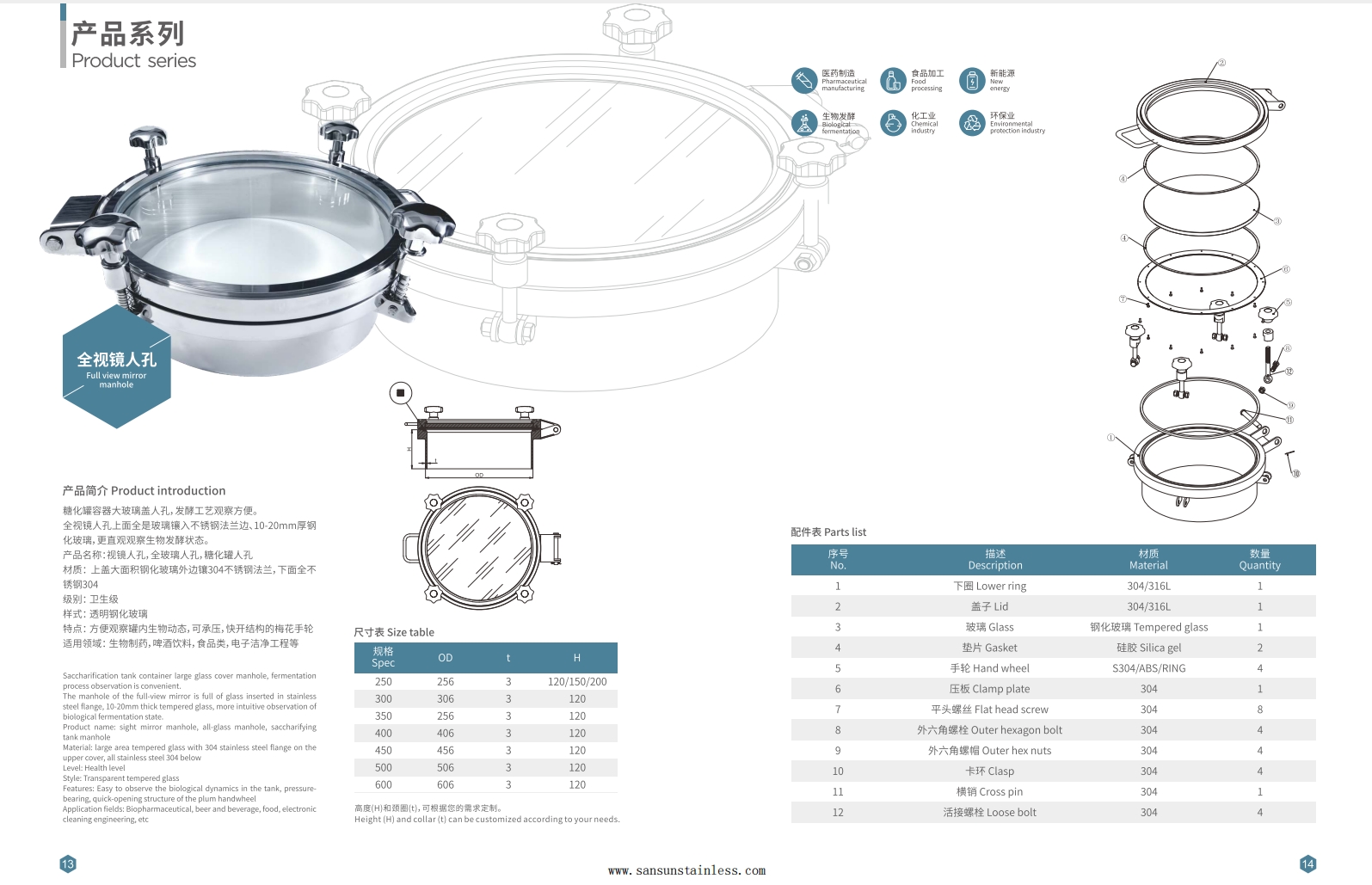

Saccharification tank container large glass cover manhole
fermentationpocess obserwatwn is conwenlentTho manhole of the full.vicw mirror is full of glass insortod in stainlesssteel flange
10-20mm thick tempered glass, more intuitive observation ofbiological femmentation state
Available in size from 250mm to 600mm
Standard height: 120mm, or specific height upon on requirement
Standard thickness: 3mm
Self-sealing double lip seal to prevent fluids spraying out.
Package
