SANSUN
Operating Principles

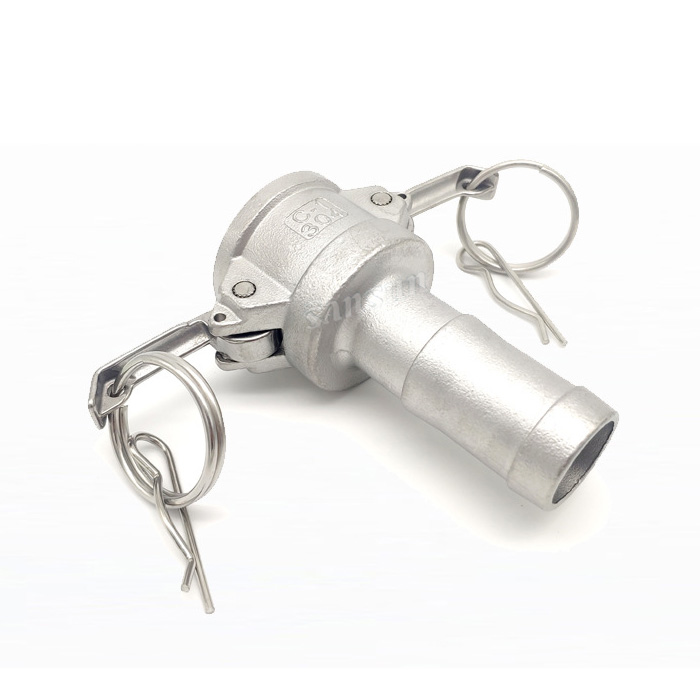

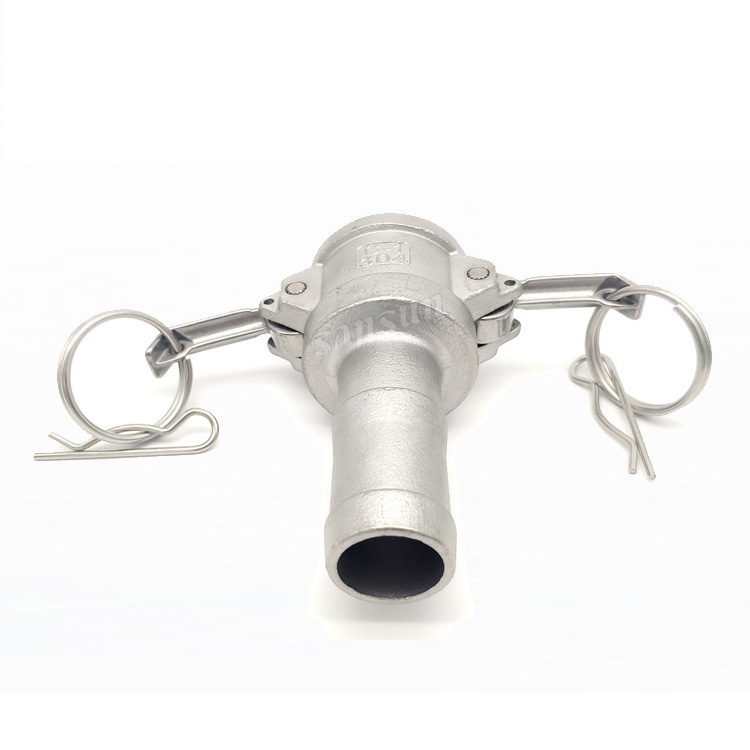

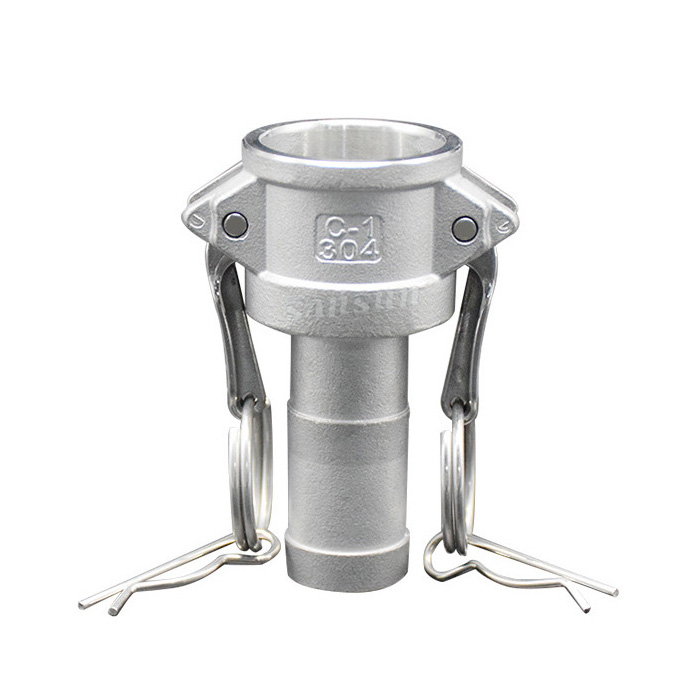

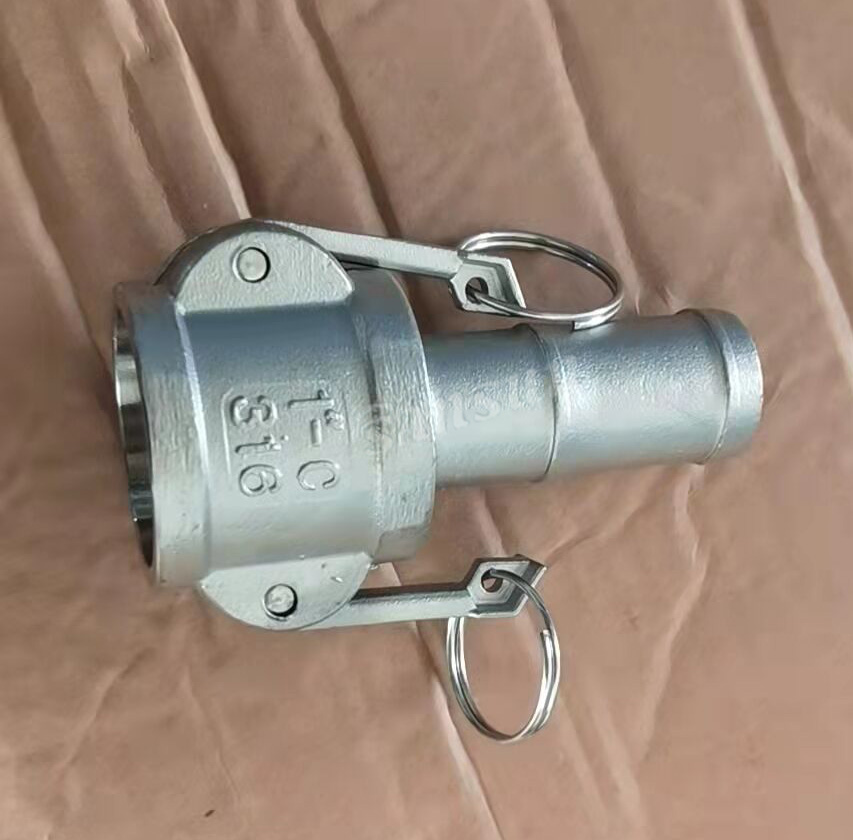

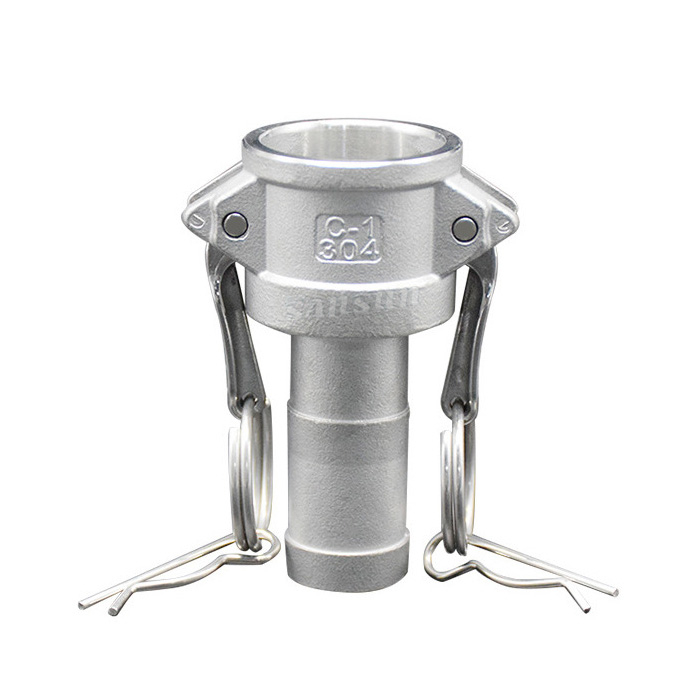

Type C Coupler - Stainless Steel Cam and Groove Coupler x Hose Barb.Type C couplers are generally used with
the same size Type E adapters, however, Type A and F adapters are compatible, as well as the DP (Dust Plug).
High quality stainless steel camlocks, also known as stainless steel cam and groove couplings are offered in 1/2” up to 4" sizes,
with other sizes like 6" available upon request,manufactured in high grade Stainless Steel 316. Our SS camlock fittings are
interchangeable with Dixon stainless steel camlocks and PT stainless steel couplings.
These SS Camlock Fittings are low in cost, highly durable and are used in all industries from the food and beverage markets,
to the fuel and oil Industry. All Stainless Steel Camlocks are now also offered in Stainless Steel 304.

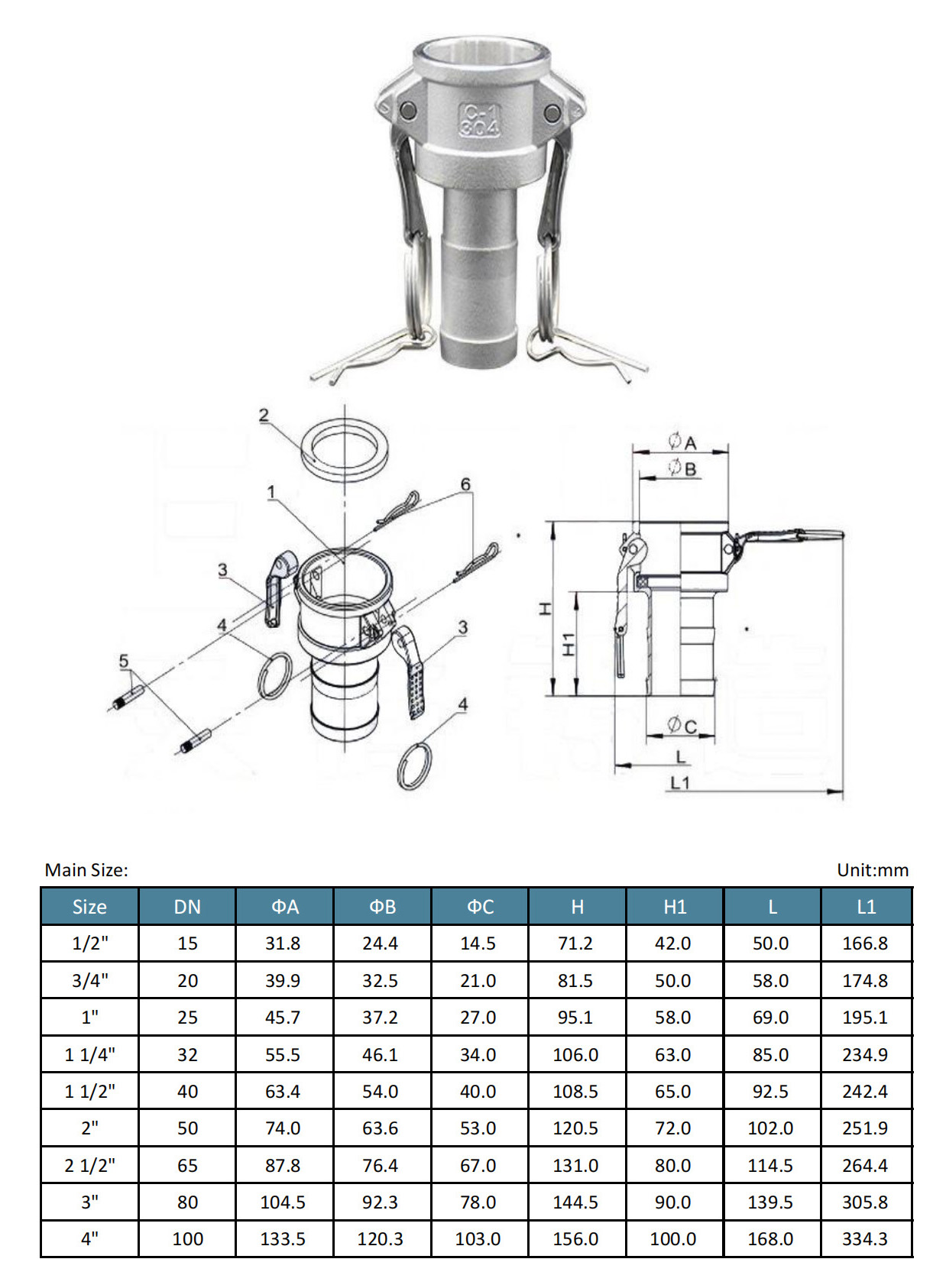

Technical Specifications
Max Pressure:150 psi
Maximum Temperature: 185° F
Materials
Materials: AISI-304 or AISI-316L
Standard Design
Available sizes:1/2"-4",DN15-DN100
Coupling Type: "C" Quick Disconnect
Inspection
All kinds of non-standard products are customized according to the requirements of customers. Products can be traced back to the
manufacturing and time of each process to ensure the quality of products.
Operating Principles
Type C Coupler - Stainless Steel Cam and Groove Coupler x Hose Barb.Type C couplers are generally used with
the same size Type E adapters, however, Type A and F adapters are compatible, as well as the DP (Dust Plug).
High quality stainless steel camlocks, also known as stainless steel cam and groove couplings are offered in 1/2” up to 4" sizes,
with other sizes like 6" available upon request,manufactured in high grade Stainless Steel 316. Our SS camlock fittings are
interchangeable with Dixon stainless steel camlocks and PT stainless steel couplings.
These SS Camlock Fittings are low in cost, highly durable and are used in all industries from the food and beverage markets,
to the fuel and oil Industry. All Stainless Steel Camlocks are now also offered in Stainless Steel 304.
Technical Specifications
Max Pressure:150 psi
Maximum Temperature: 185° F
Materials
Materials: AISI-304 or AISI-316L
Standard Design
Available sizes:1/2"-4",DN15-DN100
Coupling Type: "C" Quick Disconnect
Inspection
All kinds of non-standard products are customized according to the requirements of customers. Products can be traced back to the
manufacturing and time of each process to ensure the quality of products.
