CIP Cleaning Leakage Mixproof Butterfly Valve

The sanitary mix-proof 3pc weld end butterfly valve is operated by pneumatic or manual type. The materials are: 304, 316L. It is widely used in beer, beverage, dairy, fruit juice, pharmacy, bioengineering and other fields.
Size:
Availability:
Quantity:
  • SANSUN

Operating Principles

The mix-proof 3pc weld end butterfly valves can be operated automatically through actuator or manually with the handle.

The handle blocks the valve in the "open" or "closed"position, certainly there are the other position available.

The actuator push piston of axial movement into 90 degree so that it controls butterfly valve.

The butterfly valves used in beer, beverage, dairy, fruit juice, pharmacy, bioengineering and other fields.

Technical Specifications

Max.pressure: 10 bar (DN-25/100);8 bar (DN-125/150)

Min.pressure: 0.2 bar p.abs

Operating temperature:-10℃ to +120℃ (EPDM)

Materials

Butterfly plate: AISI316L/304(forged)

Valve body: AISI316L/304(forged)

Handle: AISI304/PP

Surface finishing: Ra=0.8

Standard Design

Available in sizes from DN50 to DN100

The size of multi-position handle uo to DN100 / 4"

The size of pull handle up to DN125 / 150 / 6"

Standard Avaliable: DIN, SMS, ISO, IDF, RJT, IDF, 3A

Connection: weld, clamp, thread, single weld single thread, flange

Handle: two-position handle, three-position handle, four-position pulling handle,multi-position plastic triggle handle

and multi-position stainless steel triggle handle

Control: position sensor, C-TOP controller, C-TOP controller(AS-I)

Butterfly Valves Curve

Drawing-of-Butterfly-Valves-Curve

Butterfly Valve Handle Style

Drawing-of-butterfly-valve-Handle-style

Exploded view of Butterfly Valve with Pulling Handle

Exploded-view-of-Butterfly-Valve-with-Pulling-Handle

Mix-Proof 3PC Butterfly Valve Applicable Occasions

mix-proof 3PC butterfly valve applicable occasions

Package for Butterfly Valve

pasksge-of-butterfly-valve 1

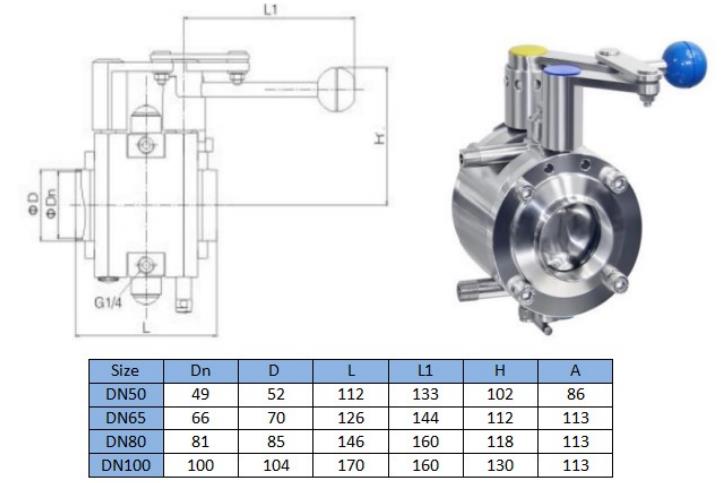

drawing of mix-proof butterfly valve
