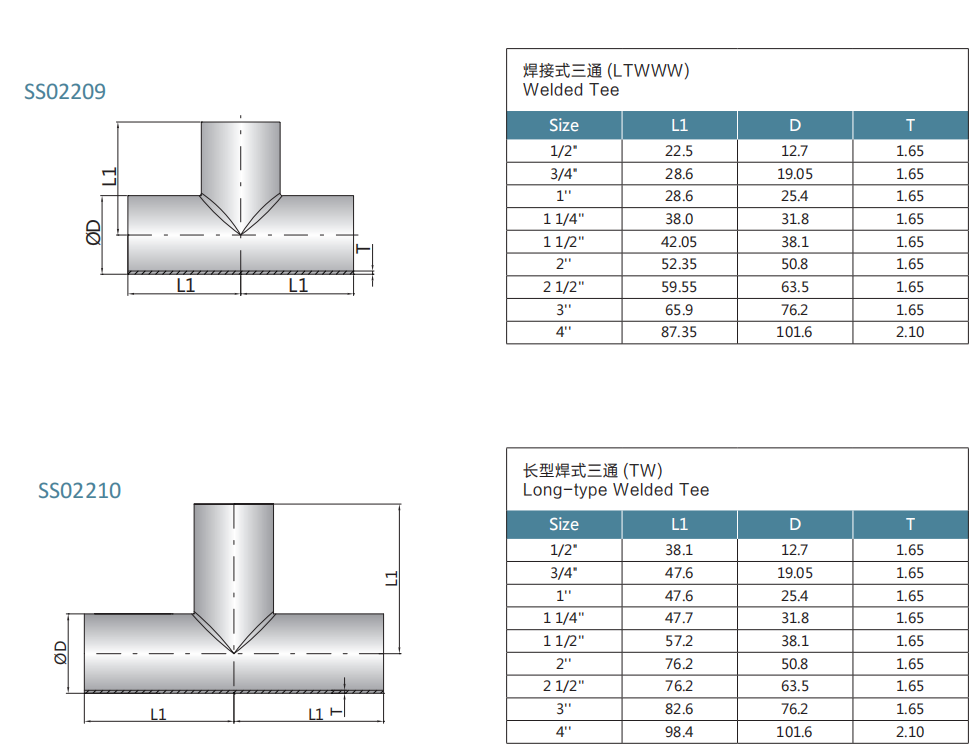

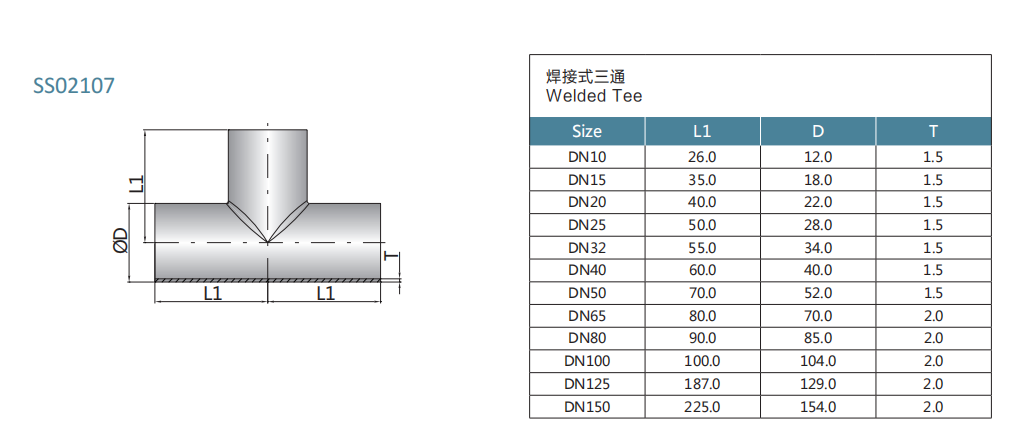

| Size | DN10-DN150(1/2''-4'') |
| Valve Body Material: | AISI304/AISI316L ,1.4404/1.4301 (Forged) |
| Valve Disc Material: | AISI304/AISI316L ,1.4404/1.4301 (Forged) |
| Surface Finishing： | Ra < 0.4-0.8 µm (32 µin) |
| Max Working Pressure: | 145psi (10bar) |
| Helium Leak Test: | <1 × 10⁻⁹ mbar・l/s |
| Cleanliness: | Passivation treatment, Conforms to ASTM A380 standard |
| Ofcores： | Metal Mesh,Pertorated Plate,Wedge Wire |
| Connection type | Clamp End,Weld End |
| Certification | US 3-A, FDA, CE PED/2014/68/EC, Certification |

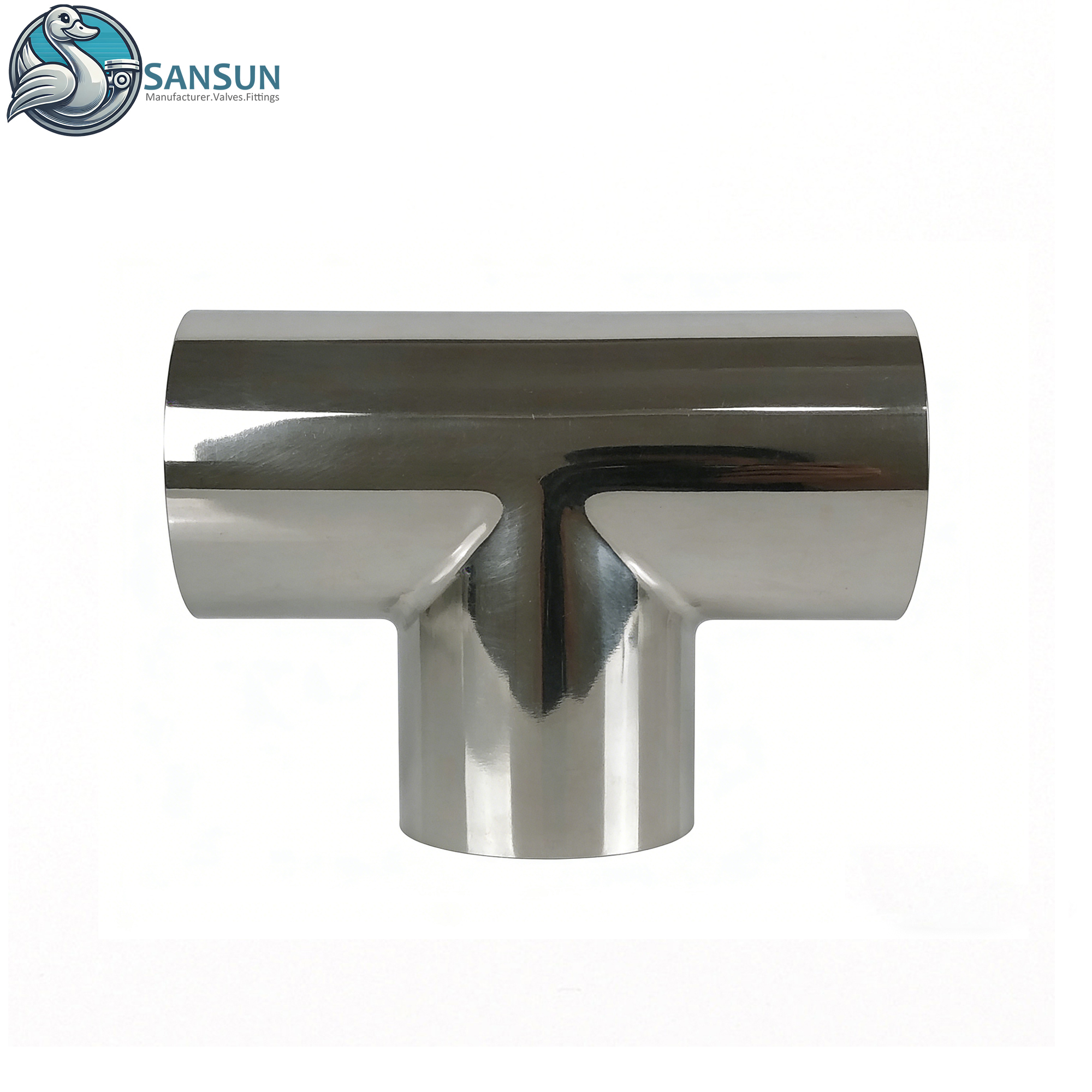

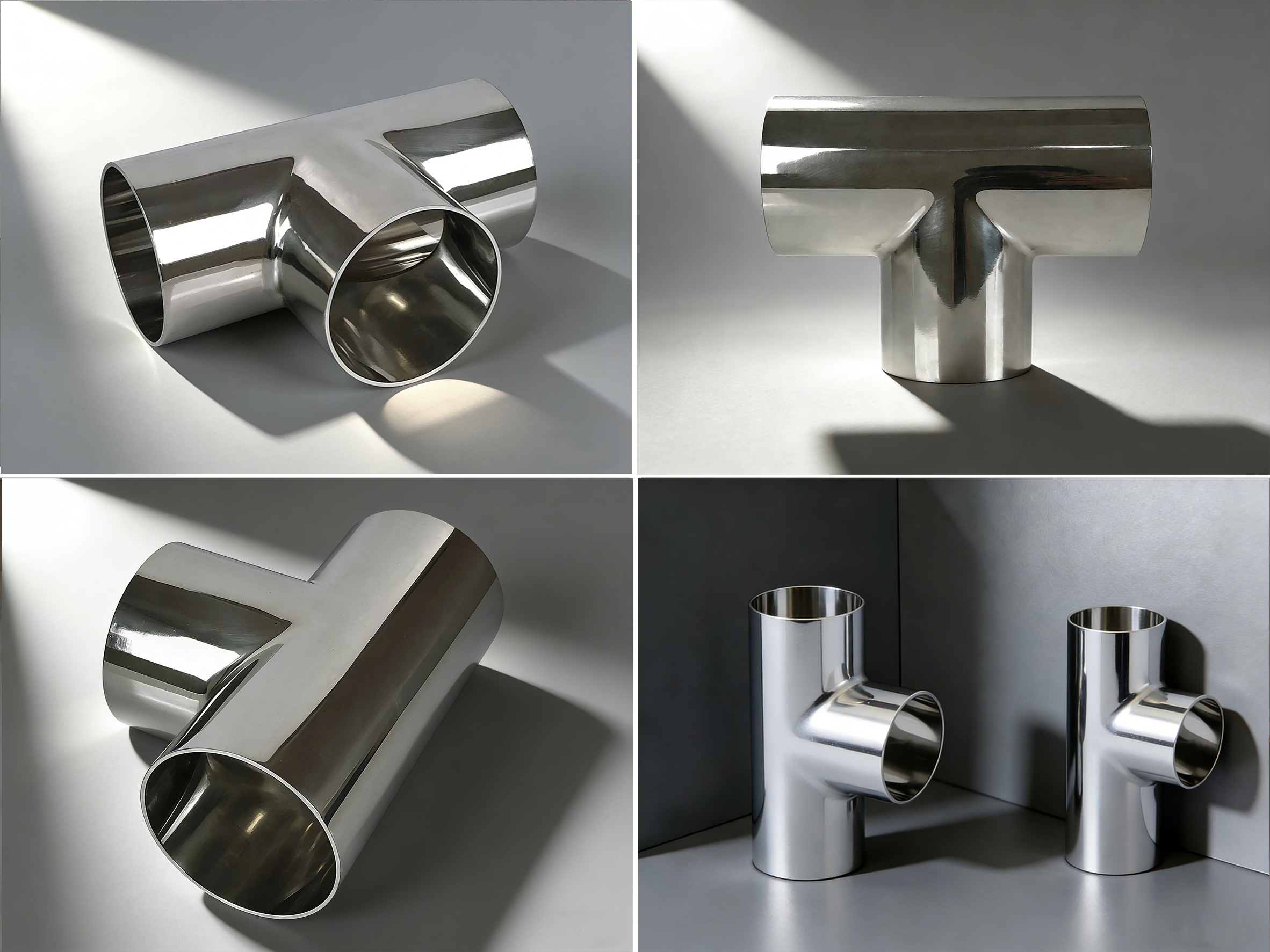

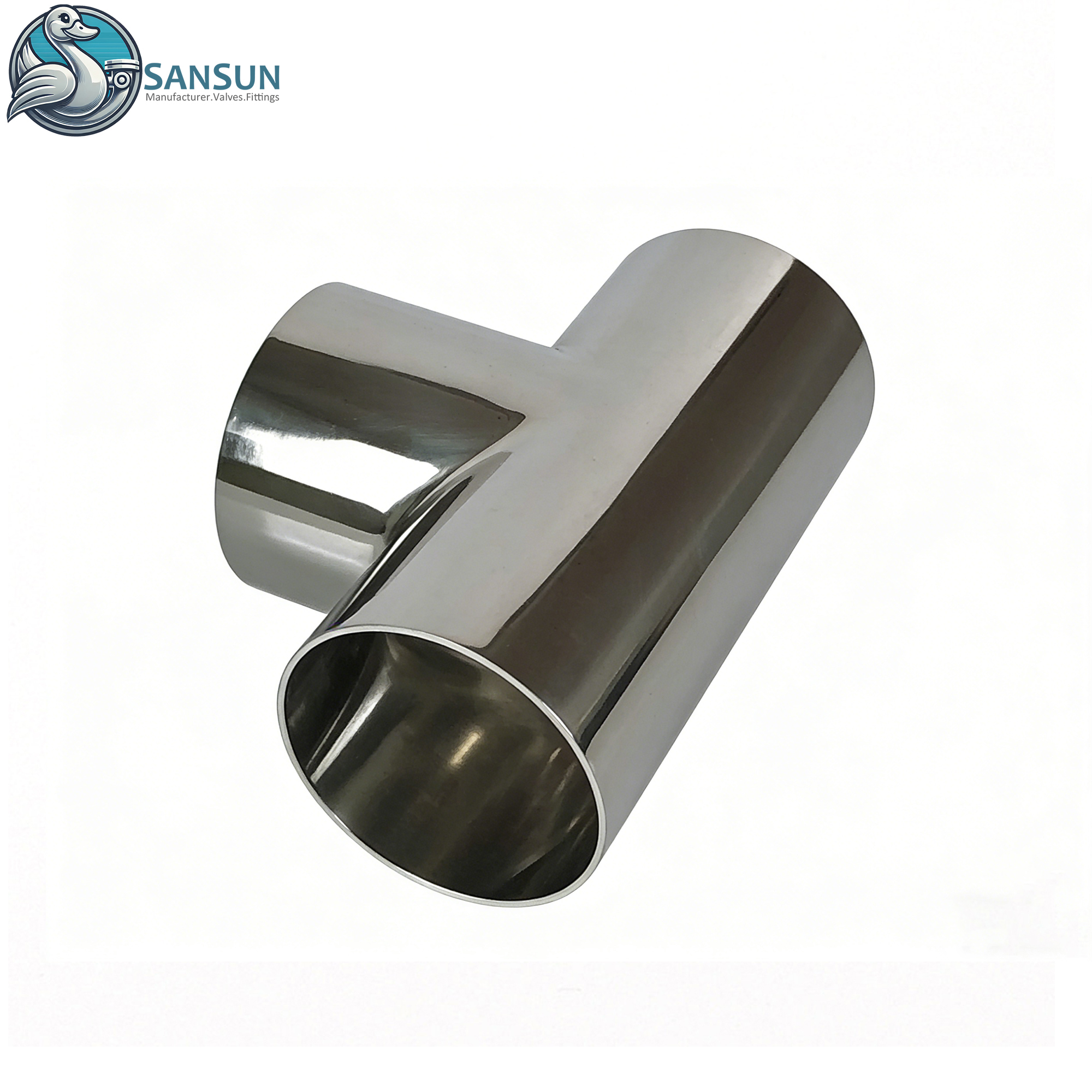

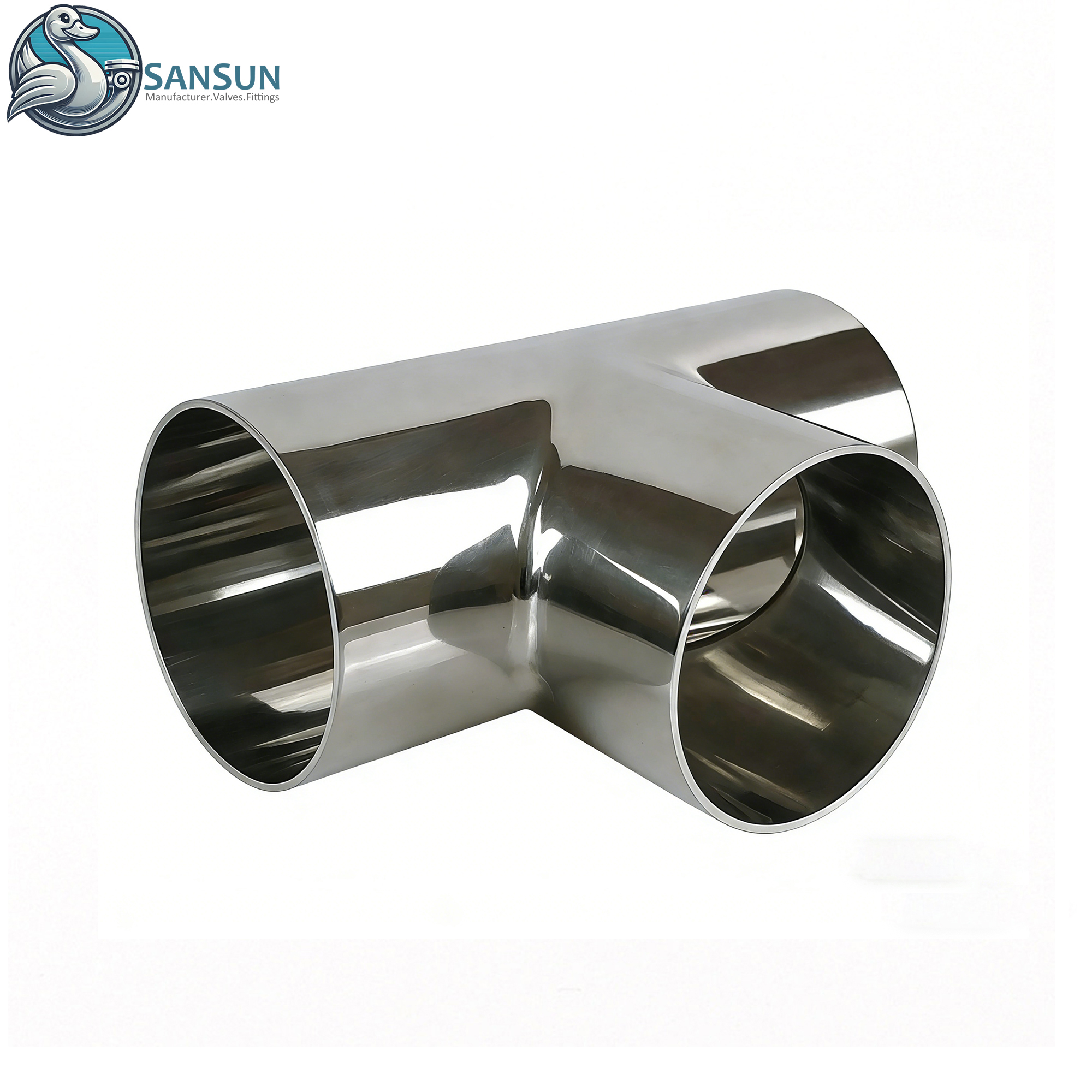

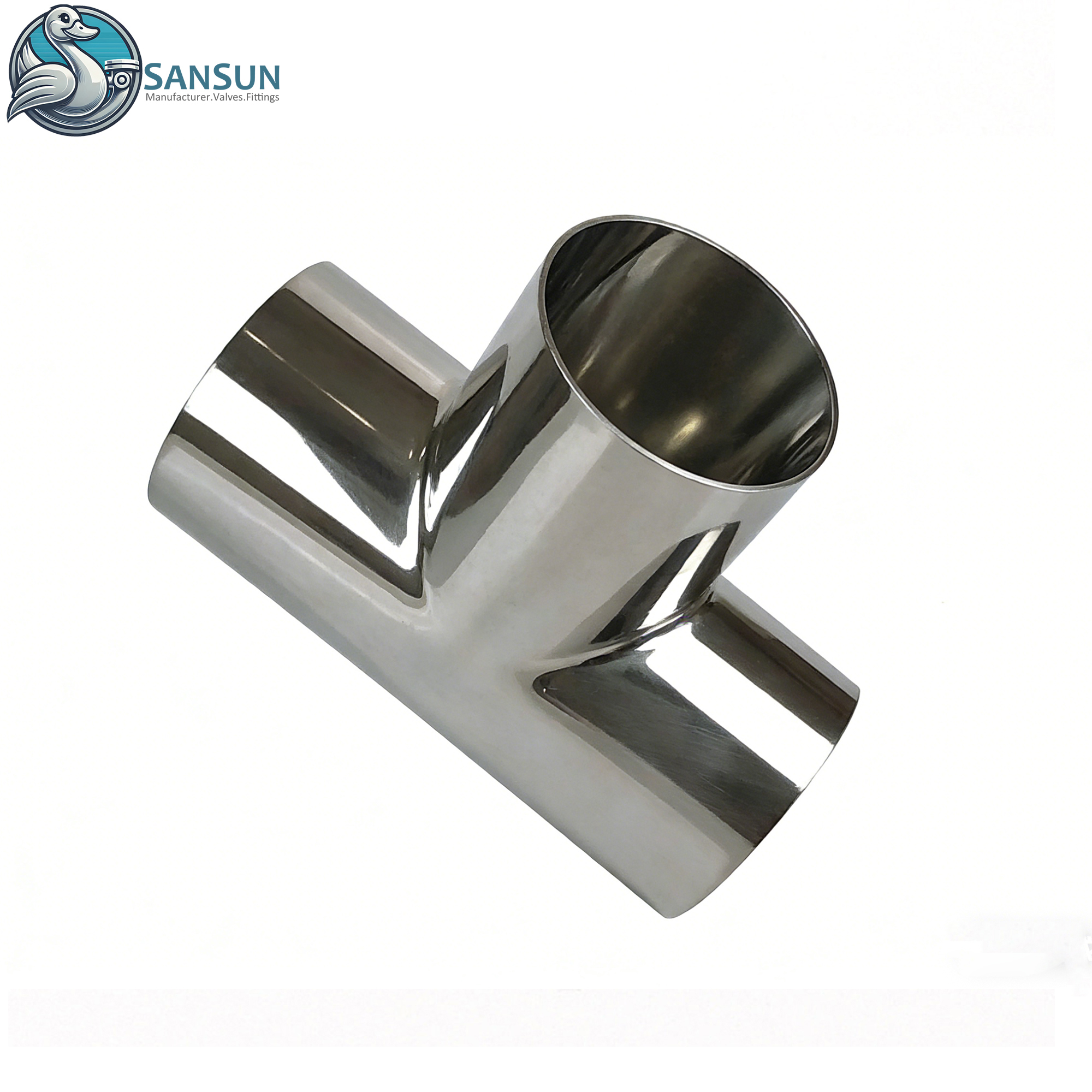

| Application scope: | Our stainless steel butt‑weld tee is specially designed for liquid‑cooling systems of data centers and energy‑storage equipment. Available in SS304 & SS316L. Adopt orbital TIG welding to achieve smooth, slag‑free inner wall. Support hydrostatic pressure test and helium leak detection. Suitable for deionized water, ethylene‑glycol cooling fluid. Offer equal tee and reducing tee, custom sizes are acceptable.
|
