SANSUN
Application

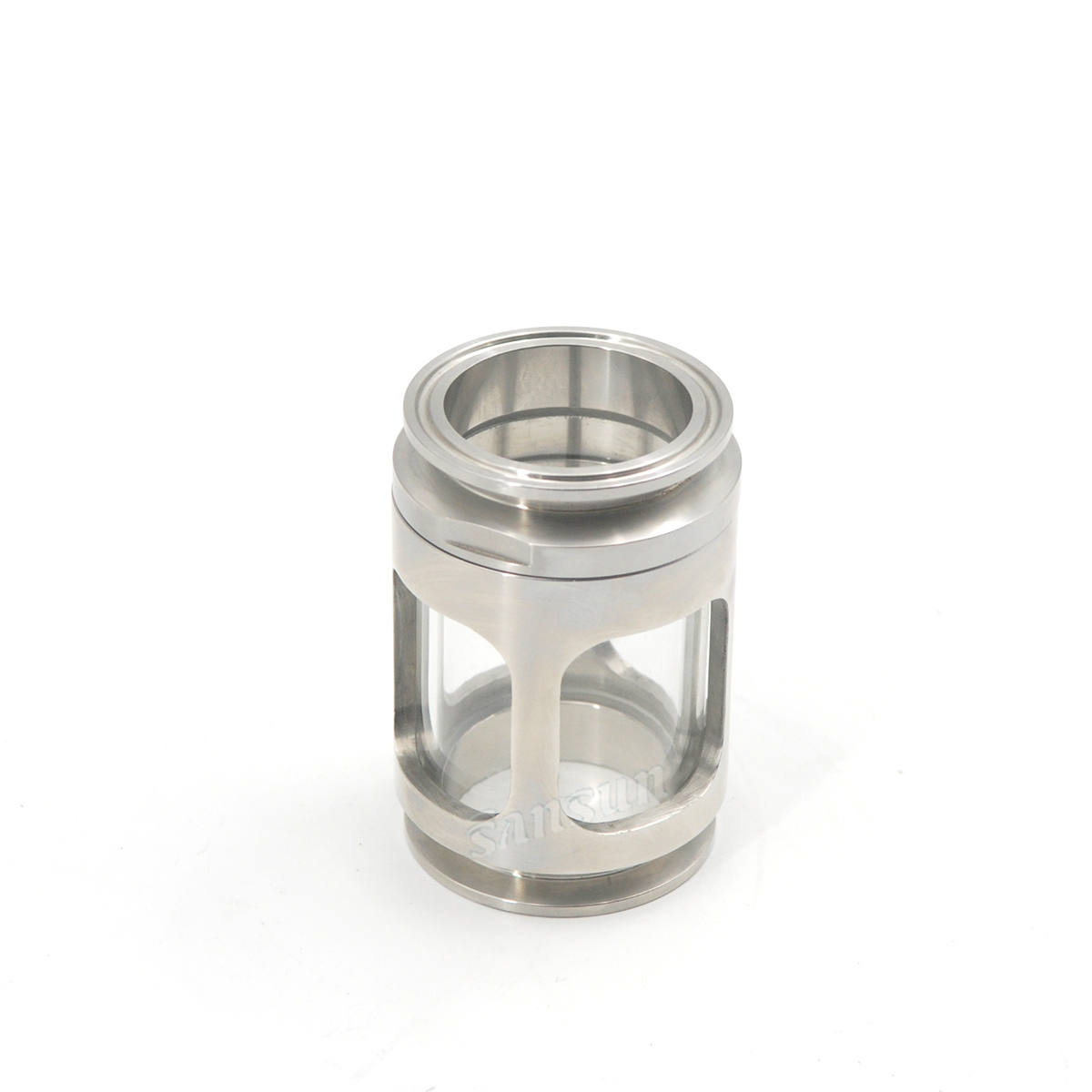

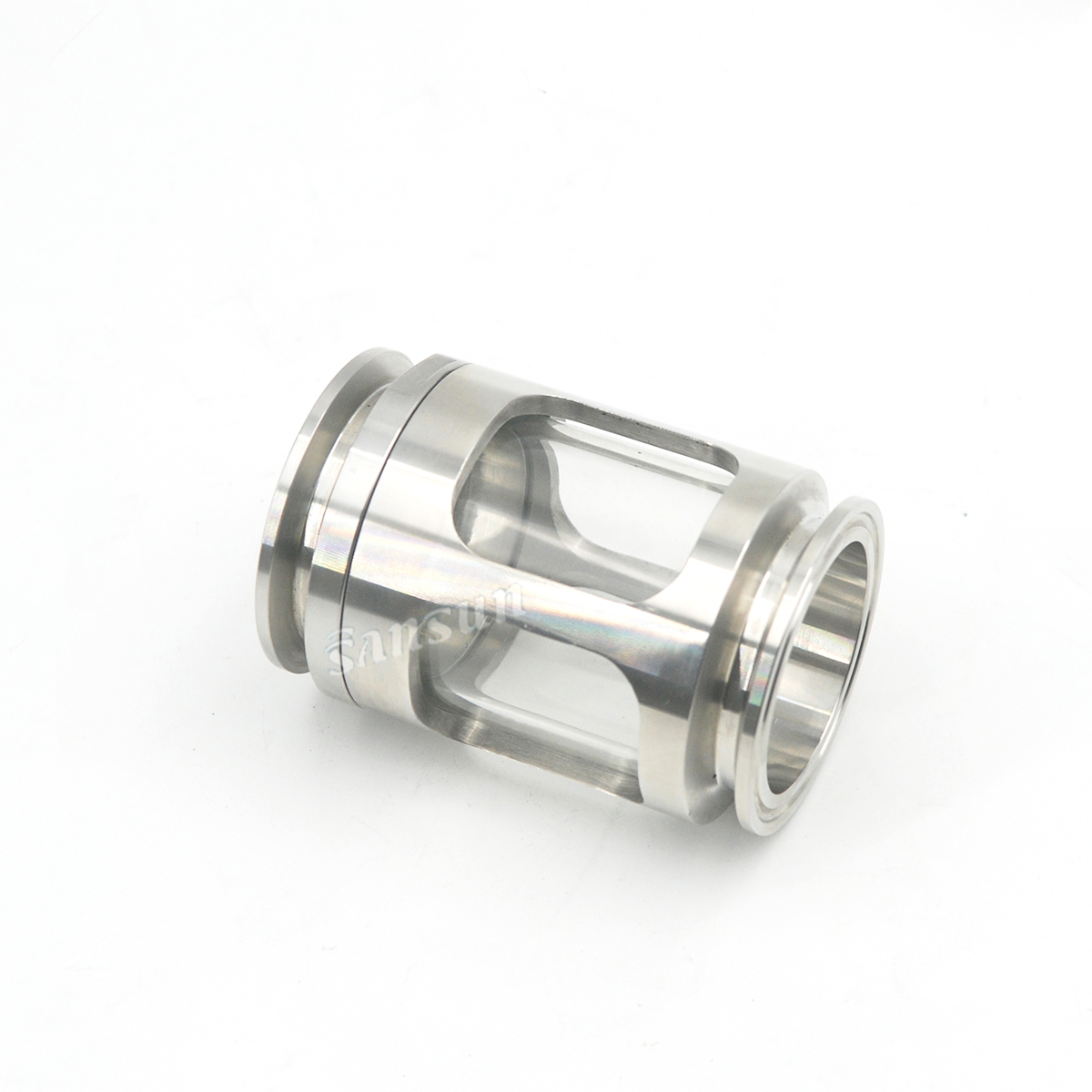

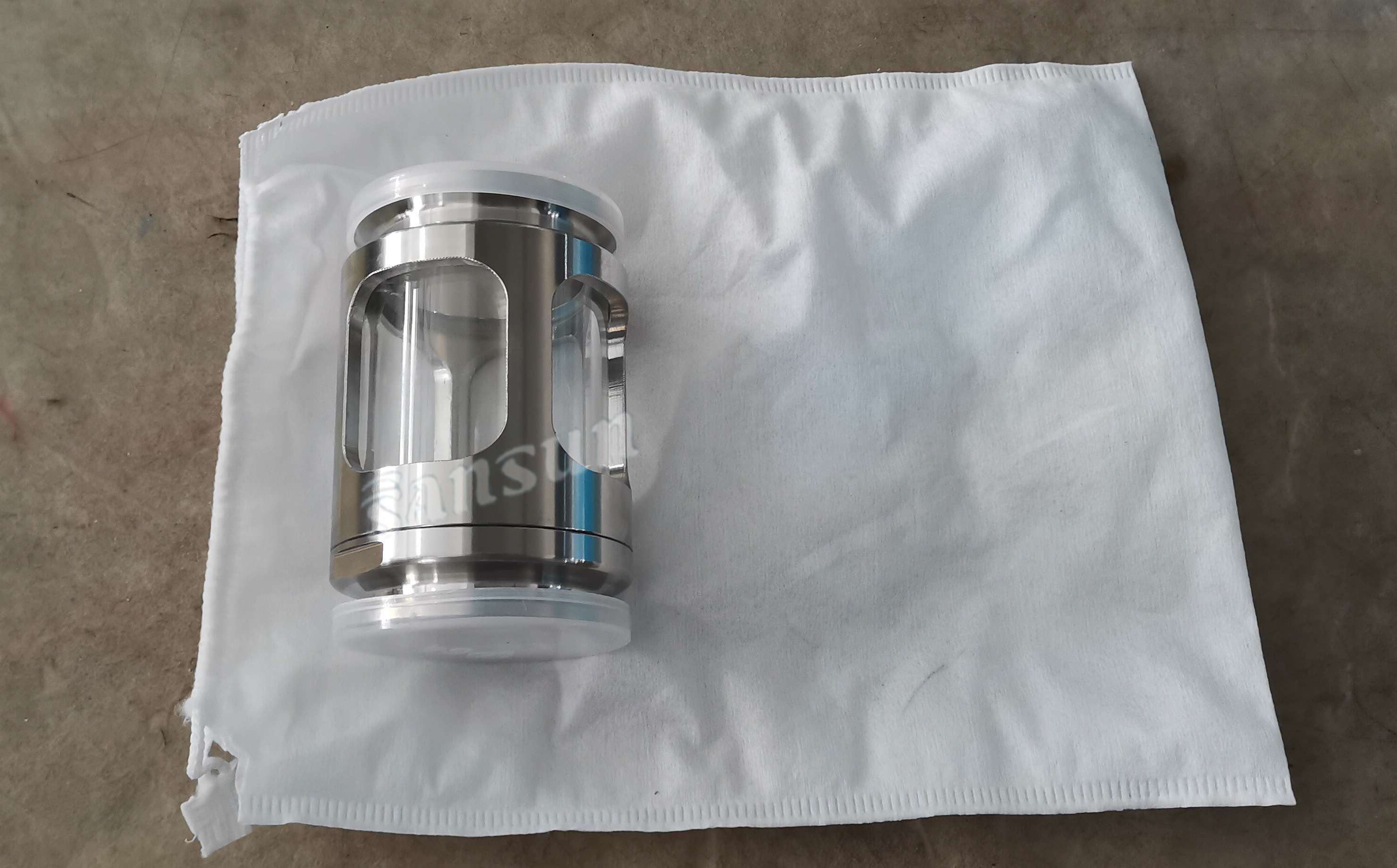

clamp sight glass is widely used in food, wine-producing, beverage and pharmacy industries etc.
For it is convenient to view the condition of equipment running state and system work state.
Materials
Body Materials: AISI-304 or AISI-316L
Tempered glass
Gasket Material:Silicon, EPDM, FRM
Seat and gasket comply with FDA 21CFR177.2600
Standard Design
Available in size from 1"-4", DN25-DN100 or others upon requirement
Standards: DIN, SMS, ISO / IDF, BS / RJT, ASME / BPE.
End connections: butt-welded, sanitary clamp, or others upon request
Vertical or horizontal installation
Technical Specification
Temperature range: 14 ~ 248℉ (-10 ~ 120℃), Silicon
Surface treatment: CNC machining
1.Inspection
All kinds of non-standard products are customized according to the requirements of customers. Products can be traced back to the manufacturing and time of each process to ensure the quality of products.
Application
clamp sight glass is widely used in food, wine-producing, beverage and pharmacy industries etc.
For it is convenient to view the condition of equipment running state and system work state.
Materials
Body Materials: AISI-304 or AISI-316L
Tempered glass
Gasket Material:Silicon, EPDM, FRM
Seat and gasket comply with FDA 21CFR177.2600
Standard Design
Available in size from 1"-4", DN25-DN100 or others upon requirement
Standards: DIN, SMS, ISO / IDF, BS / RJT, ASME / BPE.
End connections: butt-welded, sanitary clamp, or others upon request
Vertical or horizontal installation
Technical Specification
Temperature range: 14 ~ 248℉ (-10 ~ 120℃), Silicon
Surface treatment: CNC machining
1.Inspection
All kinds of non-standard products are customized according to the requirements of customers. Products can be traced back to the manufacturing and time of each process to ensure the quality of products.
