SANSUN
Operating Principles

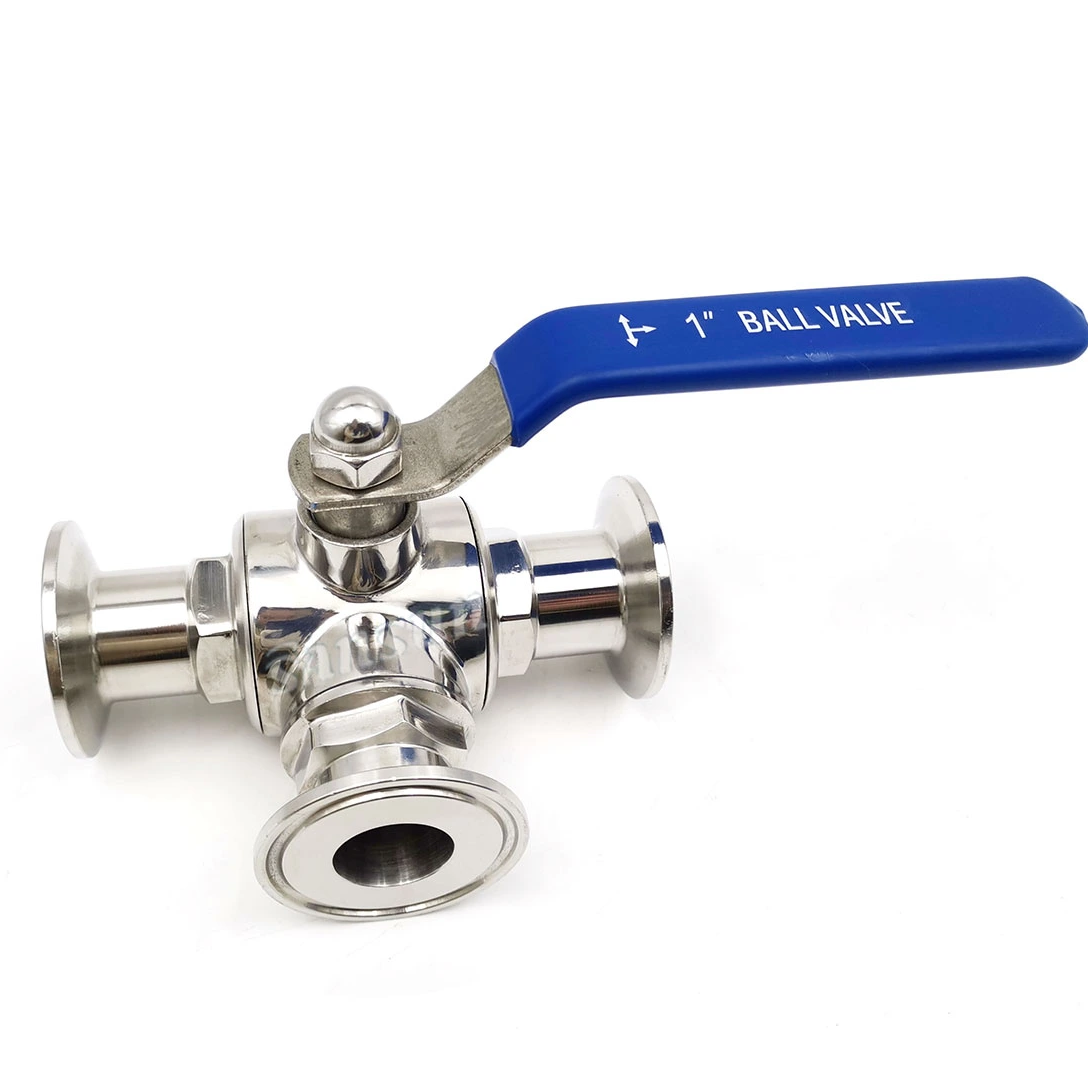

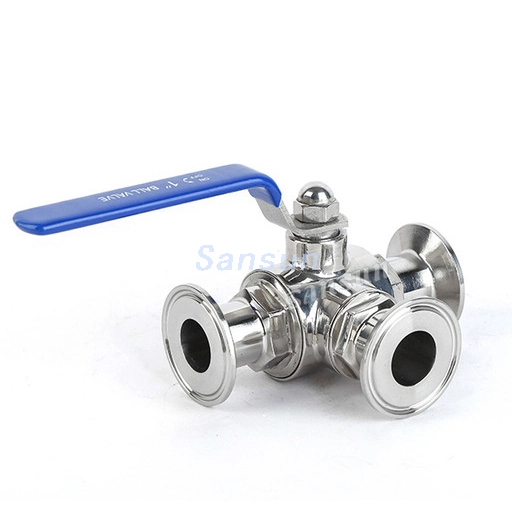

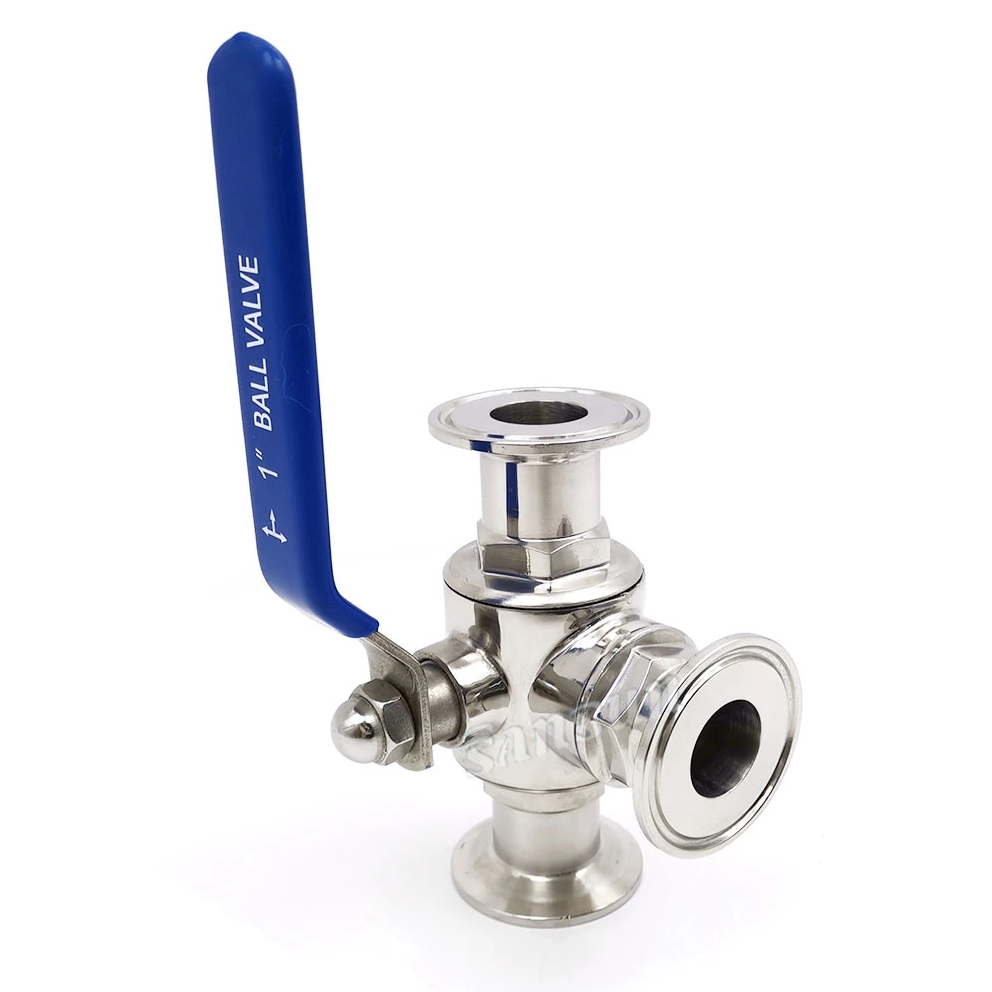

Sanitary Stainless Steel Tri Clover Ball Valve
The ball valves can be operated automatically through actuator or manually with the handle.
The ball valves used in beer, beverage, dairy, fruit juice, pharmacy, bioengineering and other fields.
With clamped connection,this 3 way ball valve is convenient to detach and install.
Technical Specifications
Max.pressure: 10 bar (DN-25/100);8 bar (DN-100/150)
Min.pressure: 0.2 bar p.abs
Operating temperature:-10℃ to +120℃ (PTFE)
Materials
Valve body: AISI316L/304(forged)
Handle: AISI304/PP
Surface finishing: Ra=0.8
Standard Design
Available in sizes from DN10 / 1/2" to DN100 / 4"
Standard Avaliable: DIN, SMS, RJT, 3A, FIL
Connection: weld, clamp, thread, flange
Type of valves: One way ball valve, three-piece ball valve, Three-way ball valve
Type of cores: T type,L type, direct type
Actuator: pneumatic stainless steel actuator, electric actuator

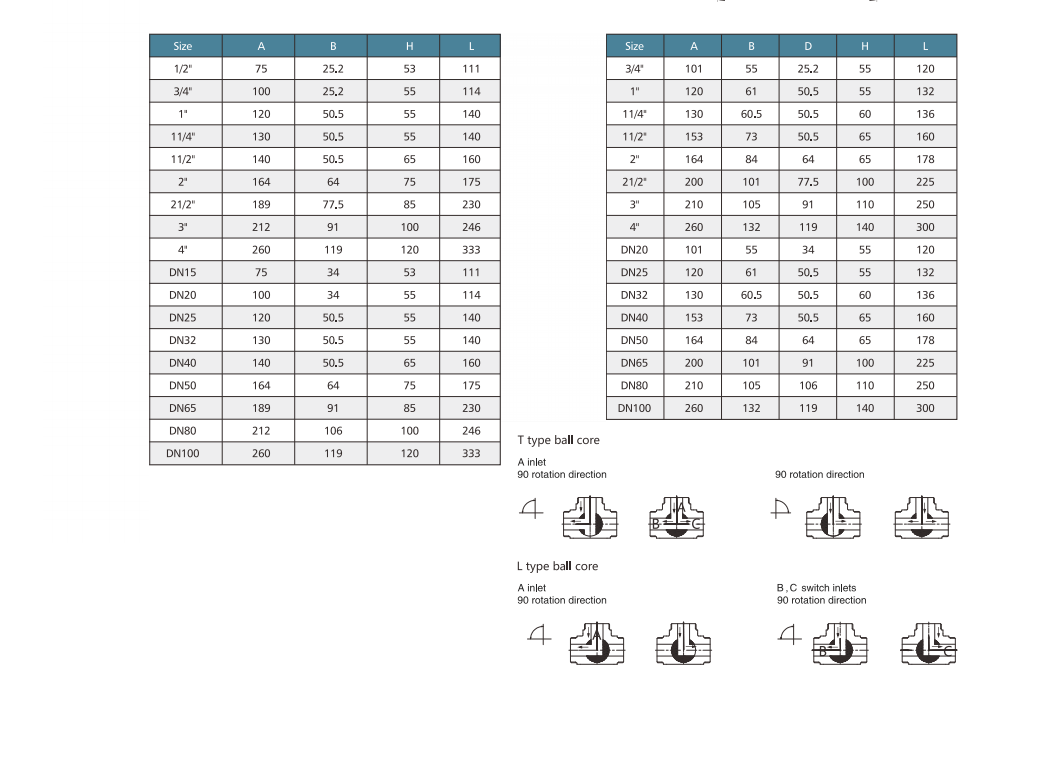

Three Way Ball Valve Type of Cores
Exploded View of Three Way Ball Valve
Inspection
All kinds of non-standard products are customized according to the requirements of customers. Products can be traced back to the manufacturing and time of each process to ensure the quality of products.
Package for ball valve
