SANSUN
Application
clamp sight glass is widely used in food, wine-producing, beverage and pharmacy industries etc.
For it is convenient to view the condition of equipment running state and system work state.
Materials
Body Materials: AISI-304 or AISI-316L
Tempered glass
Gasket Material:Silicon, EPDM, FRM
Seat and gasket comply with FDA 21CFR177.2600

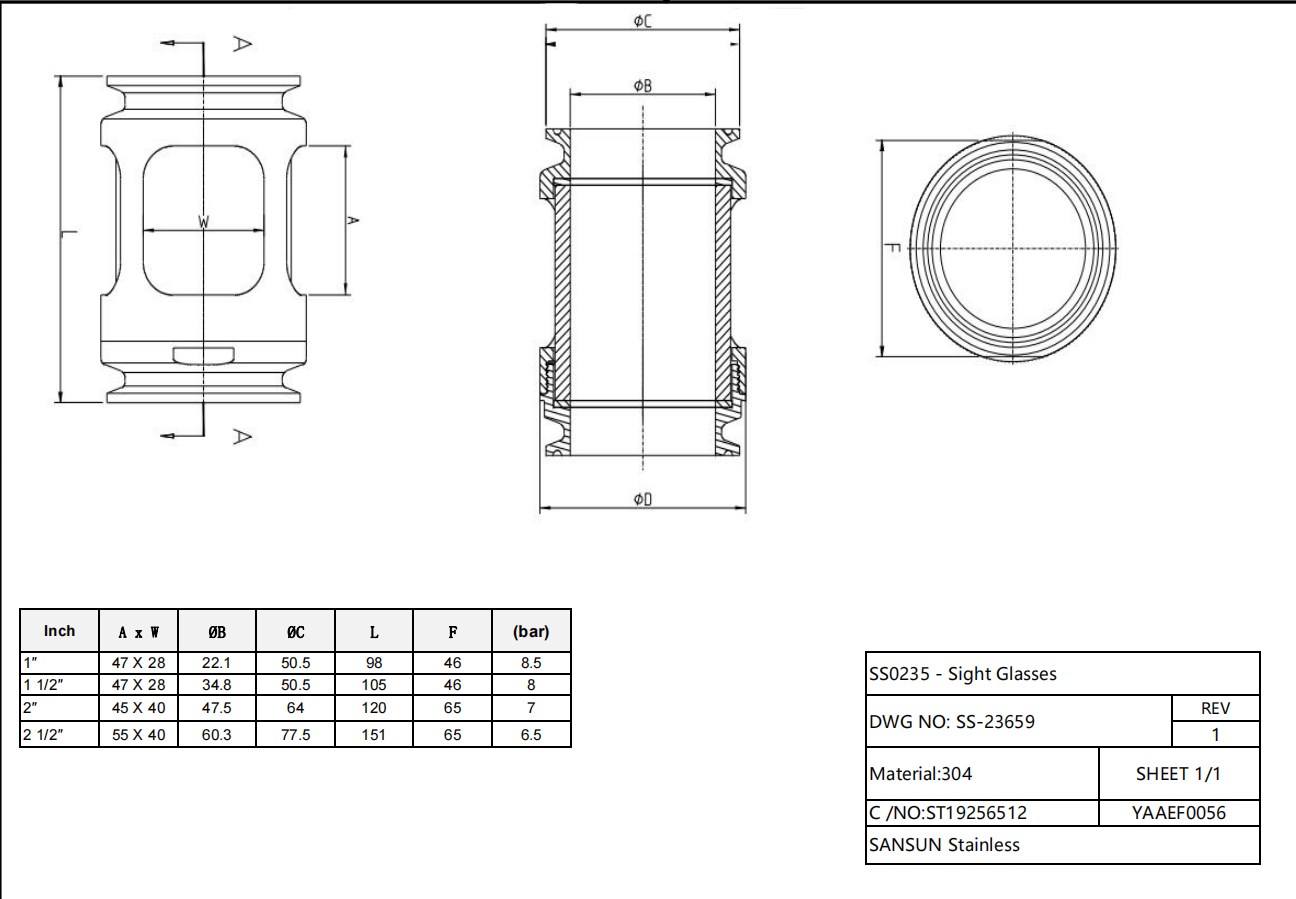

Standard Design
Available in size from 1"-2 1/2" or others upon requirement
Standards: DIN, SMS, ISO / IDF, BS / RJT, ASME / BPE.
End connections: butt-welded, sanitary clamp, or others upon request
Vertical or horizontal installation
Technical Specification
Temperature range: 14 ~ 248℉ (-10 ~ 120℃), Silicon
Surface treatment: CNC machining
Package
Application
clamp sight glass is widely used in food, wine-producing, beverage and pharmacy industries etc.
For it is convenient to view the condition of equipment running state and system work state.
Materials
Body Materials: AISI-304 or AISI-316L
Tempered glass
Gasket Material:Silicon, EPDM, FRM
Seat and gasket comply with FDA 21CFR177.2600
Standard Design
Available in size from 1"-2 1/2" or others upon requirement
Standards: DIN, SMS, ISO / IDF, BS / RJT, ASME / BPE.
End connections: butt-welded, sanitary clamp, or others upon request
Vertical or horizontal installation
Technical Specification
Temperature range: 14 ~ 248℉ (-10 ~ 120℃), Silicon
Surface treatment: CNC machining
Package
