| Size | 1 1/2"-4" (DN40-DN100) |
| Valve Body Material: | AISI304/AISI316L ,1.4404/1.4301 (Forged) |
| Valve Disc Material: | AISI304/AISI316L ,1.4404/1.4301 (Forged) |
| Helium Leak Test: | <1 × 10⁻⁹ mbar・l/s |
| Cleanliness: | Passivation treatment, Conforms to ASTM A380 standard |

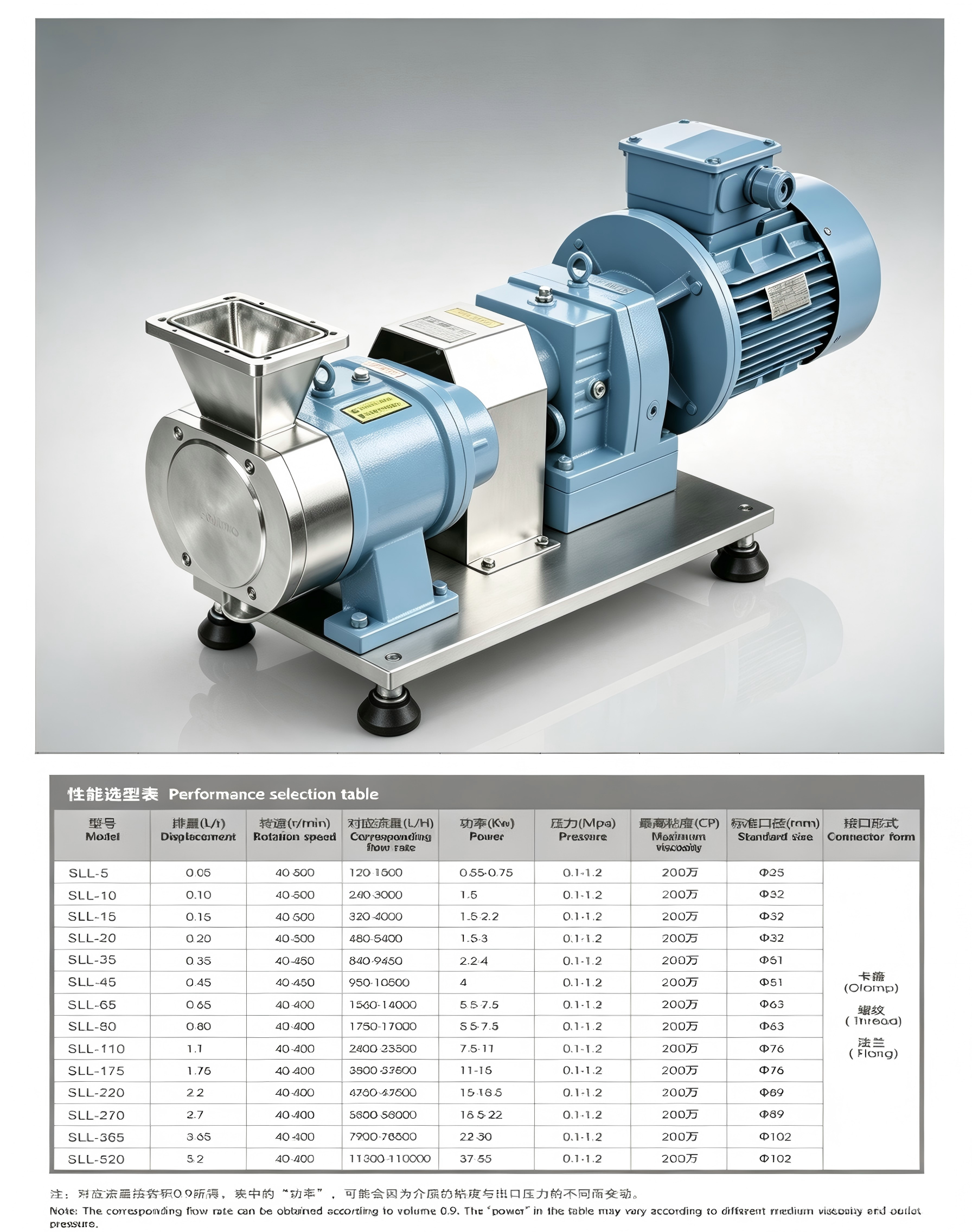

| Specification: | 1T-500T,0.55KW-55KW |
| Seal: | single seal (standard), double mechanical seal (option), SIC/C, SIC/SIC |
| Motor Brand: | ABB motor, Simens |
| Availably standard: | DIN/3A/SMS |
| Certification | US 3-A, FDA, CE PED/2014/68/EC, Certification |

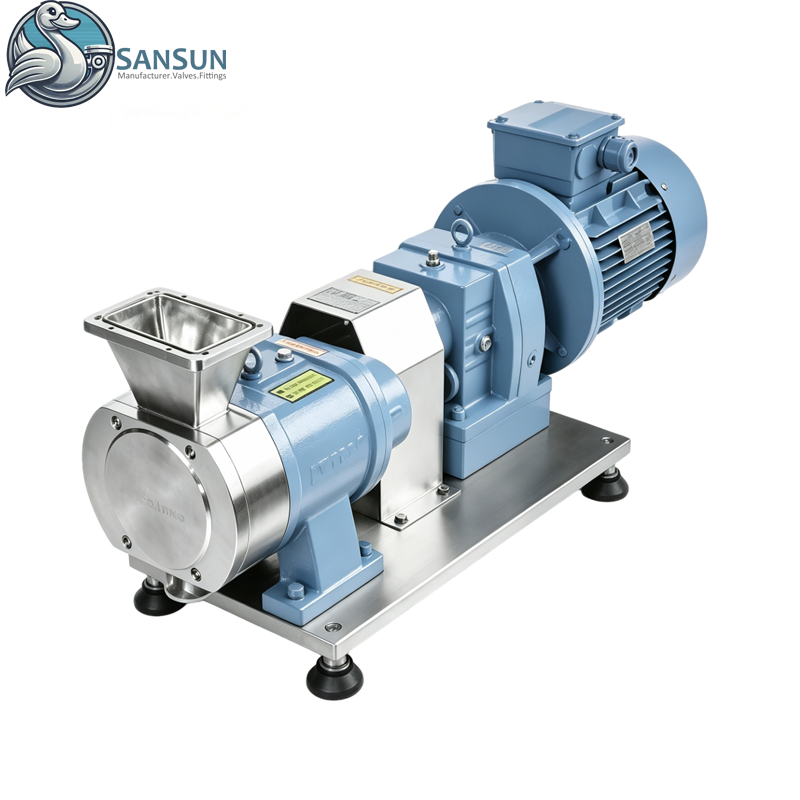

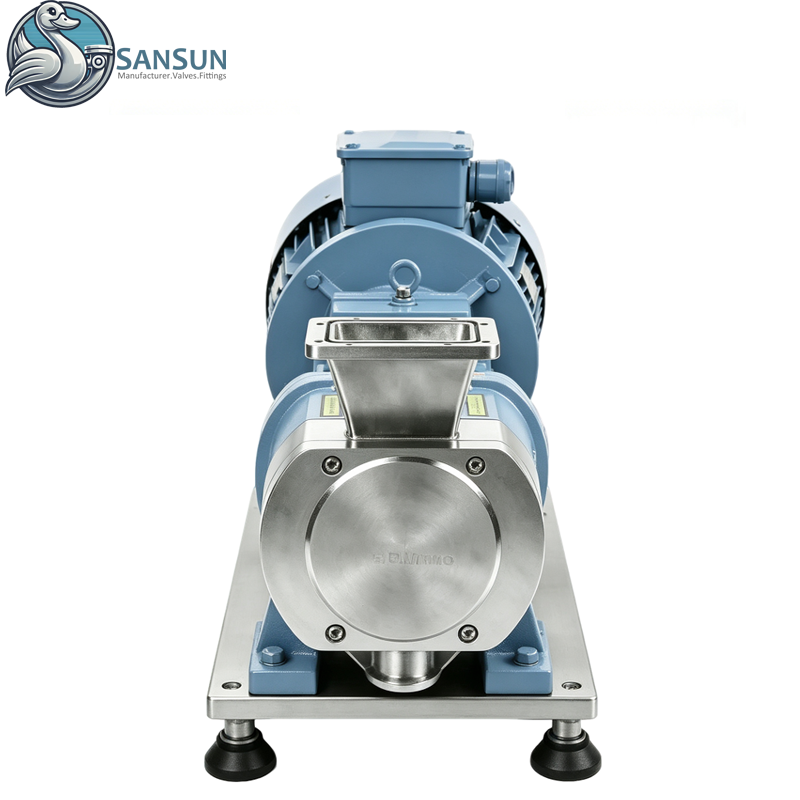

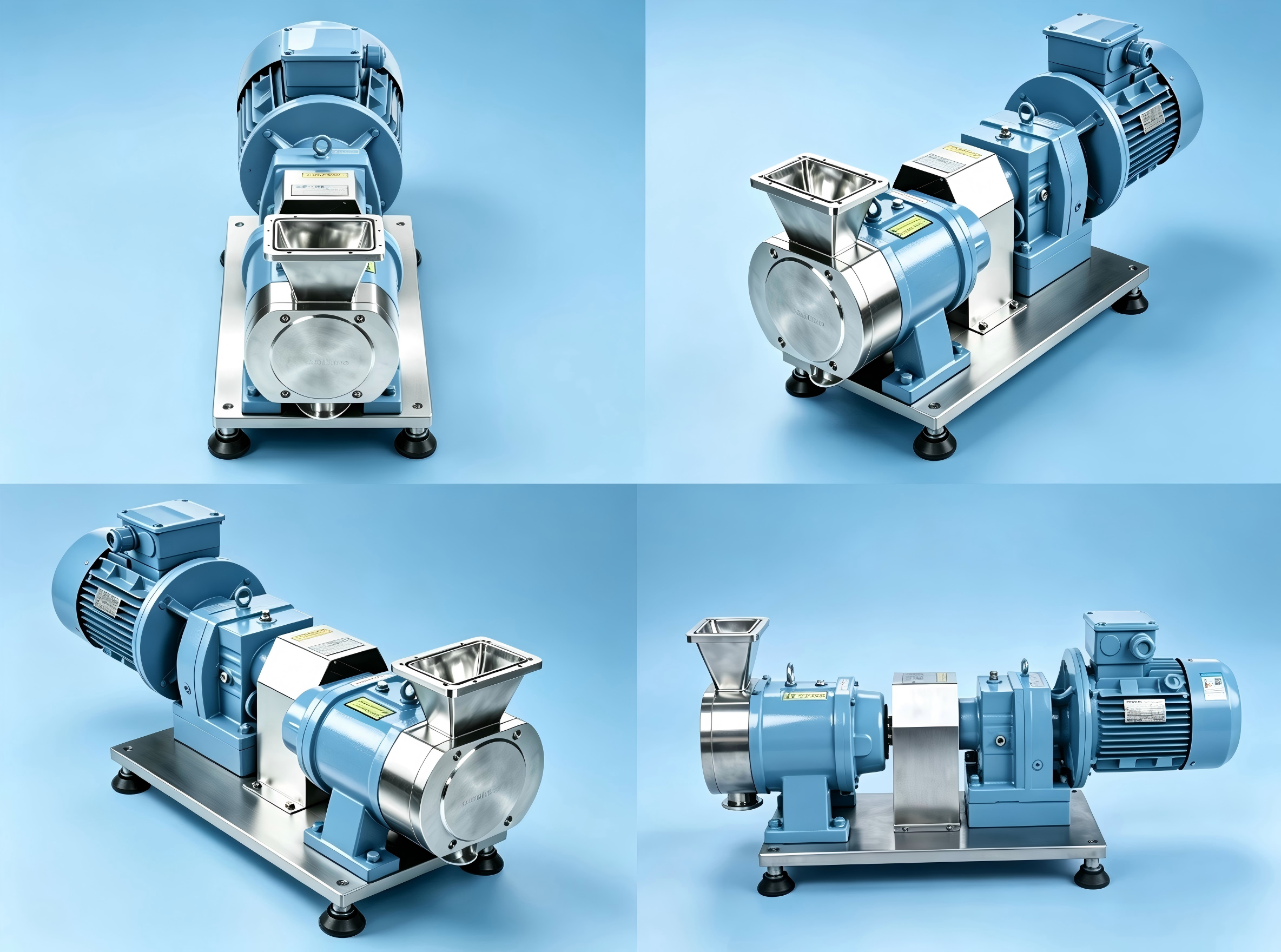

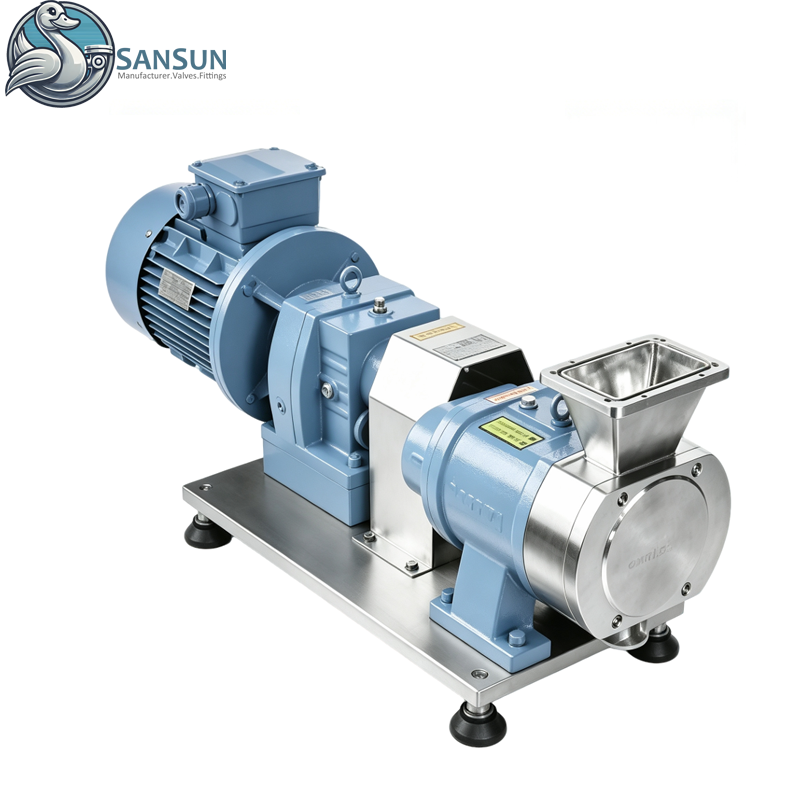

| Application scope: | Sansun's rotary lobe pumps fully comply with OCP specifications. They are widely used for industrial fluid delivery and circulation in various piping systems. |
