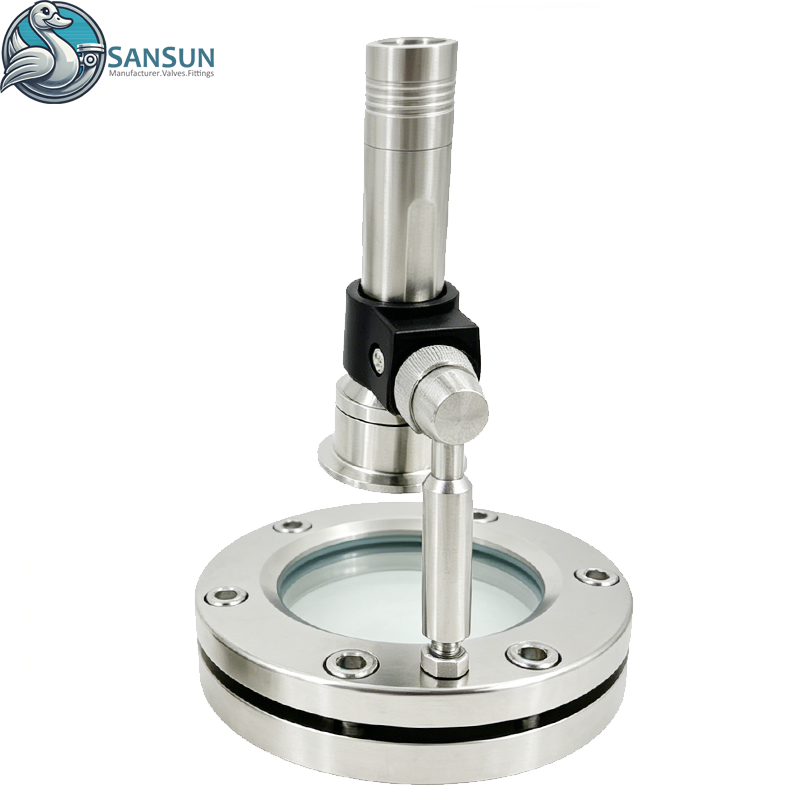

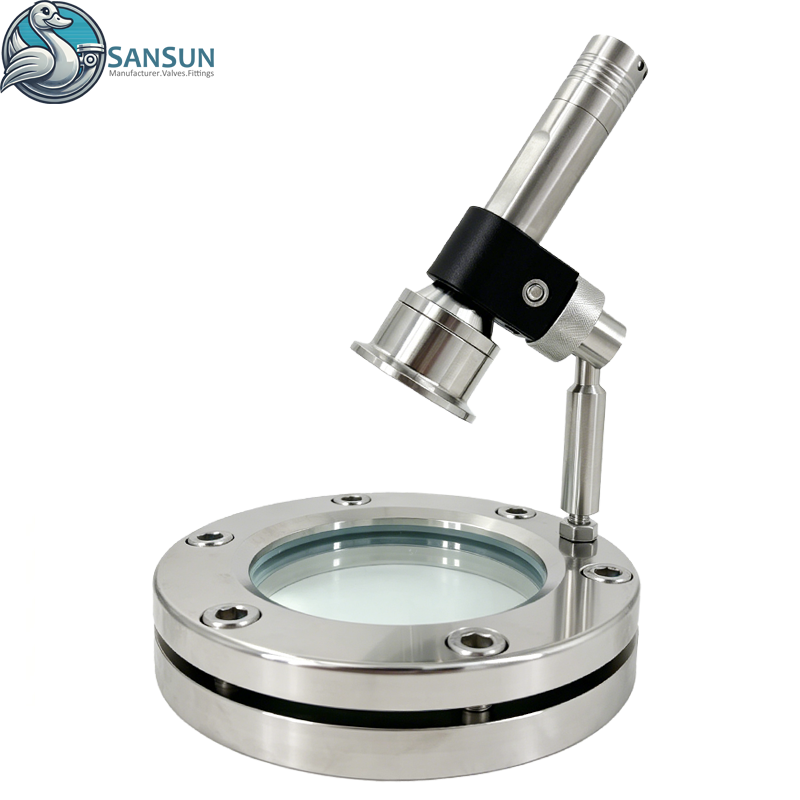

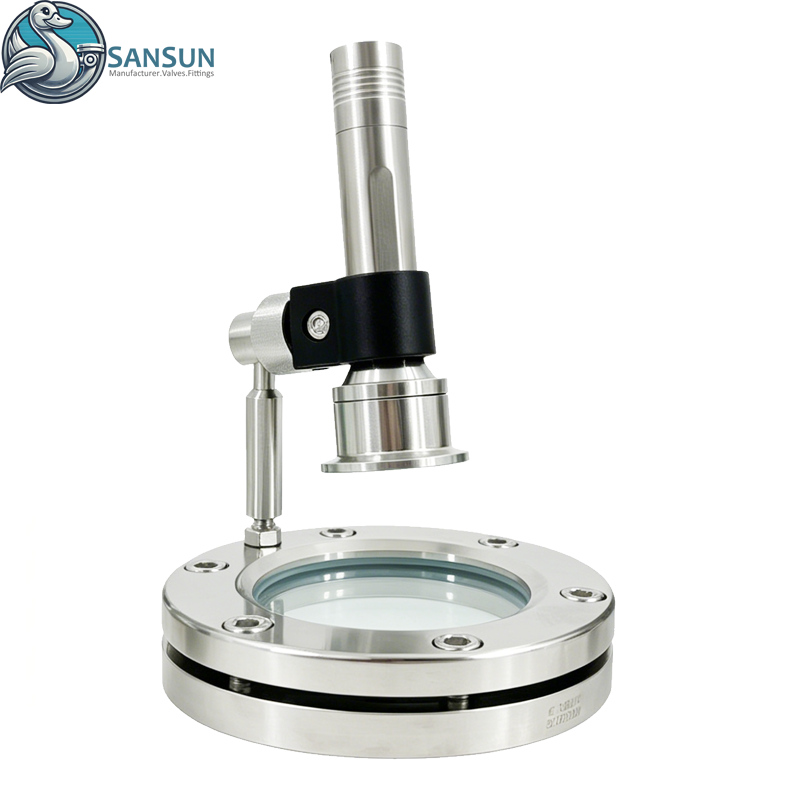

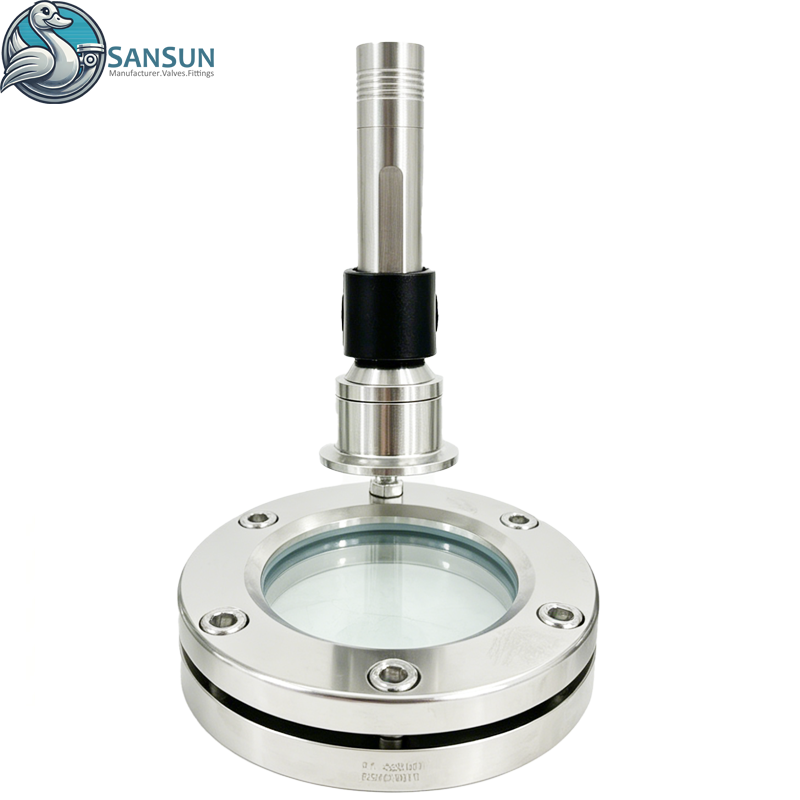

316L Stainless Steel Flanged Sight Glass with Integrated Rechargeable Light

Sansun offers a full range of sanitary sight glasses, including straight, aseptic, union, tri-clamp, four-way and flange types. Made of hygienic stainless steel, these units withstand pressure up to 10 bar and are fitted with FDA-approved gaskets. Featuring a full-bore sanitary design, they are widely applied in food, beverage, dairy, pharmaceutical and fine chemical industries.

Size:	1" 1 1/4" 1 1/2" 2" 2 1/2" 3" 4" DN20 DN25 DN32 DN40 DN50 DN65 DN80 DN100 DN150
Material:	SS304 SS316L
Availability:

Quantity:



Inquire Add to Basket

Brand:
SANSUN

Product Description

Size	DN25-DN100,1"-4"
Valve Body Material:	AISI304/AISI316L ,1.4404/1.4301 (Forged)
Vale Disc Material:	AISI304/AISI316L ,1.4404/1.4301 (Forged)
Seal Material:	EPDM
Surface Finishing：	Ra < 0.4-0.8 µm (32 µin)
Max Working Pressure:	145psi(10ba)
Helium Leak Test:	<1 × 10⁻⁹ mbar・l/s
Cleanliness:	Passivation treatment, Conforms to ASTM A380 standard
Availably standard:	DIN/3A
Connection type	Clamp End, Thread End, Weld End，Flange End
Certification	US 3-A, FDA, CE PED/2014/68/EC, Certification
Application scope:	Sansun's Union Type Sight Glass complies with OCP specifications. It is widely used for fluid observation in industrial and sanitary piping systems.

421_sansun-factory-workshop-china-manufactuer-laser-marking (2)

flanged sight glass sanitary sight glass rechargeable sight glass sight glass with LED light stainless steel sight glass
