| Size | 1''-4''(DN25-DN200) |
| Material: | AISI304/AISI316L ,1.4404/1.4301 (Forged) |
| Seal Material: | EPDM |
| Surface Finishing： | Ra < 0.4-0.8 µm (32 µin) |
| Max Working Pressure: | 145psi (10bar) |
| Helium Leak Test: | <1 × 10⁻⁹ mbar・l/s |
| Cleanliness: | Passivation treatment, Conforms to ASTM A380 standard |
| Availably standard: | DIN/3A |
| Connection type | Clamp End,Thread End,Weld End |
| Certification | US 3-A, FDA, CE PED/2014/68/EC, Certification |

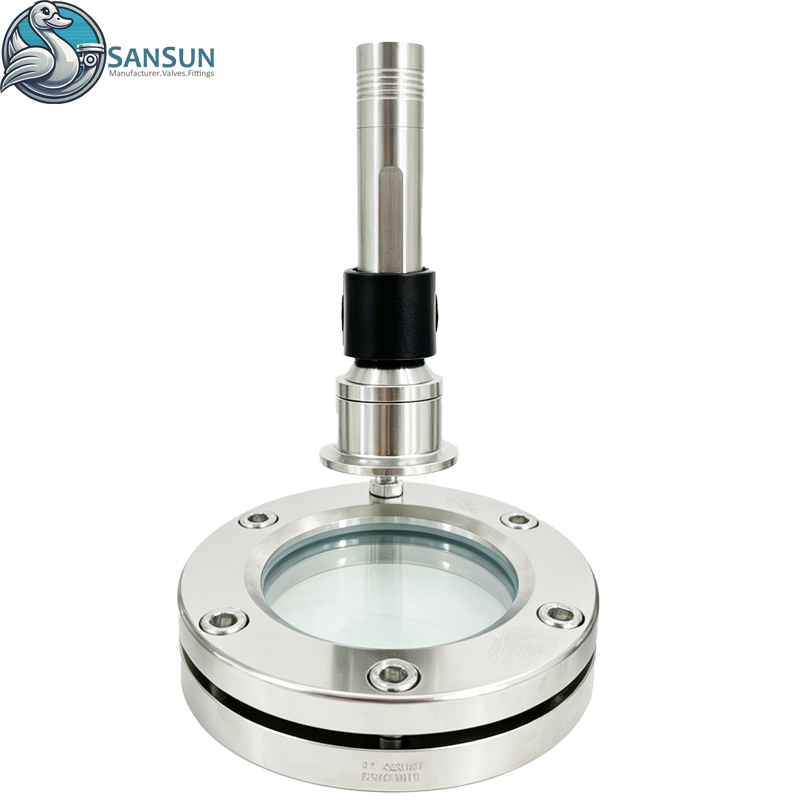

| Application scope: | SANSUN's LED flange sight glass features thick tempered glass and full sealing to stop medium leakage. Its smooth dead-corner-free body supports full CIP & SIP sanitary cleaning. Real-time visual flow observation simplifies pipeline inspection and lowers potential faults. Equipped with high-brightness built-in LED lamp for clear observation in dim workshops. Perfect matching sanitary single seat valves, widely used for automatic brewery, dairy, beverage and food processing sanitary pipelines. |
