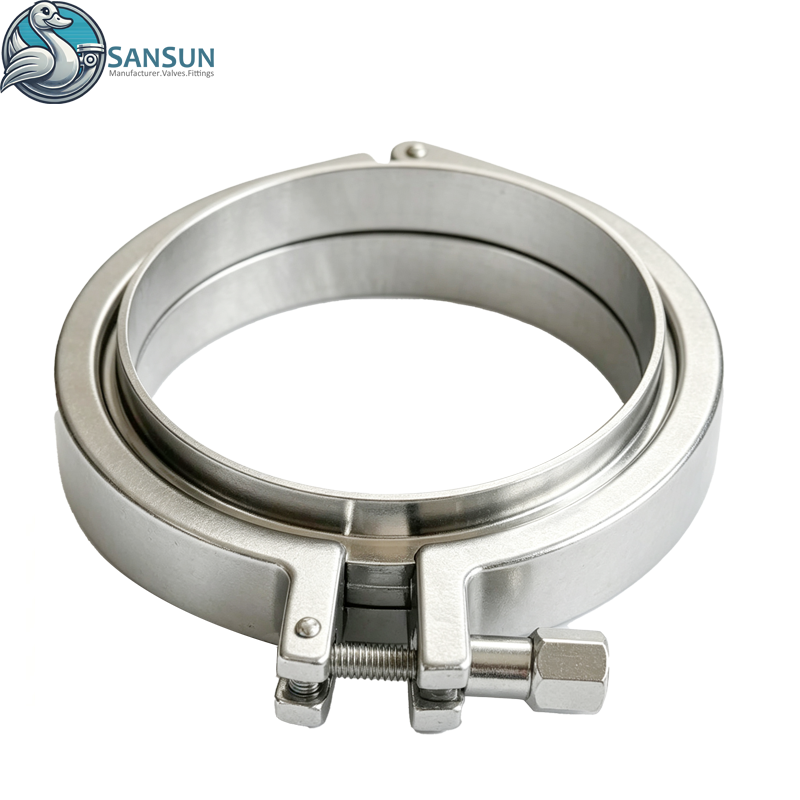

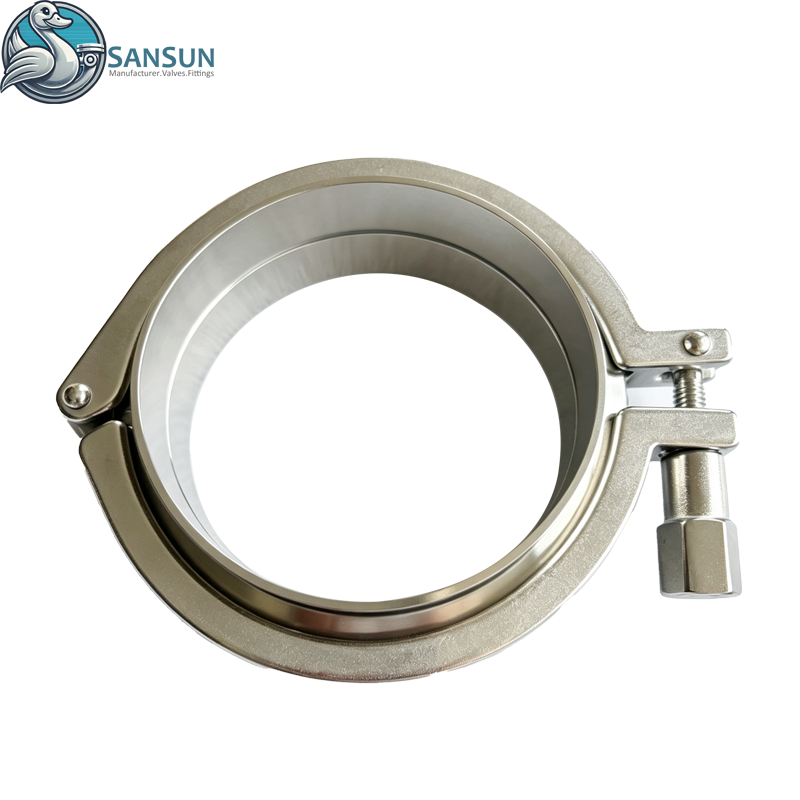

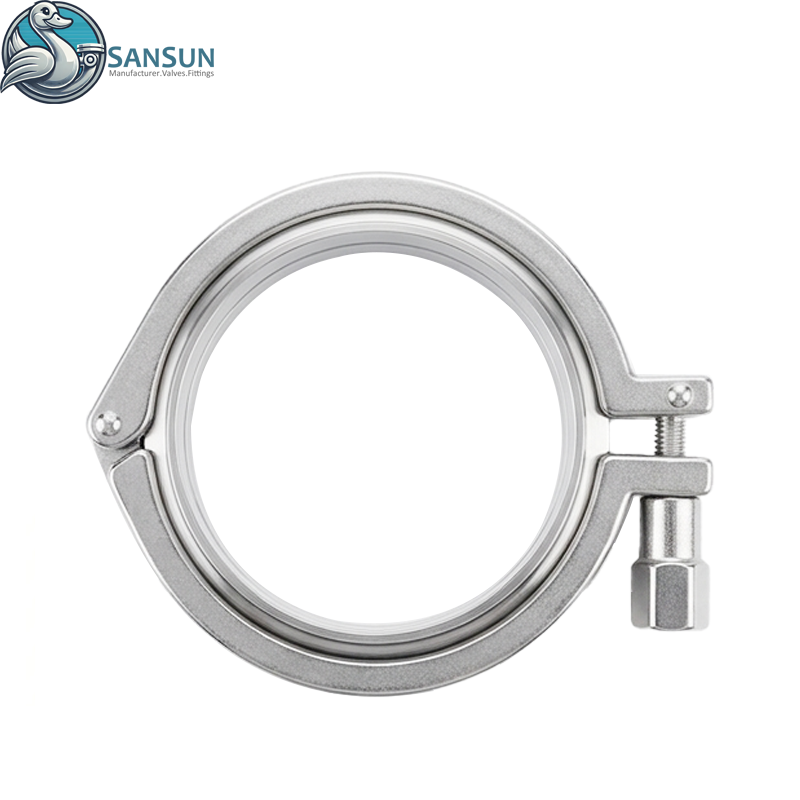

316L Sanitary Stainless Steel Tri Clamp Union Ferrule

Our 316L stainless steel sanitary Tri Clamp Union consists of two matching ferrules, a silicone/EPDM gasket and a tri-clamp fastener. All wetted surfaces are mirror polished with no dead corners to prevent liquid residue and bacterial buildup, fully meeting 3-A and ASME BPE sanitary standards.
It allows quick tool-free disassembly for convenient CIP and SIP cleaning, greatly simplifying pipeline inspection and maintenance. Available in multiple standard sizes, this tri clamp union delivers tight leak-proof connections, widely used in dairy, beverage, brewing, pharmaceutical and cosmetic hygienic pipeline systems.
Size:
1"
1 1/2"
2"
2 1/2"
3"
3 1/2"
4"
Material:
SS304
SS316L
Availability:
Quantity:
Inquire Add to Basket

  • SANSUN

Size 1/2"-12" ,DN15-DN150
Valve Body Material: AISI304/AISI316L ,1.4404/1.4301   (Forged)
Valve Disc Material: AISI304/AISI316L ,1.4404/1.4301   (Forged)
Seal Material: Silicone、EPDM,NBR,PTFE
Helium Leak Test: <1 × 10⁻⁹ mbar・l/s
Cleanliness: Passivation treatment, Conforms to ASTM A380 standard
Availably standard: DIN/3A/SMS
Certification US 3-A, FDA, CE PED/2014/68/EC, Certification
Application scope:

sansun's Single Clamp  is comply with the OCP specification(Open Compute Project specification),    Single Clamp for Data center liquid cooling, Single Clamp Direct-to-Chip (DTC) cooling，Single Clamp for CDU（Coolant Distribution Unit）.

Drawing

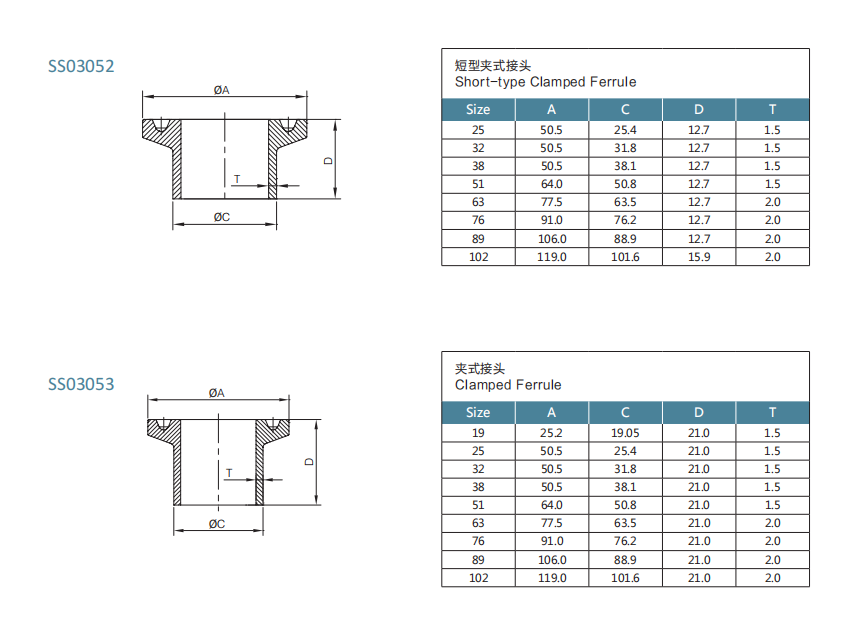

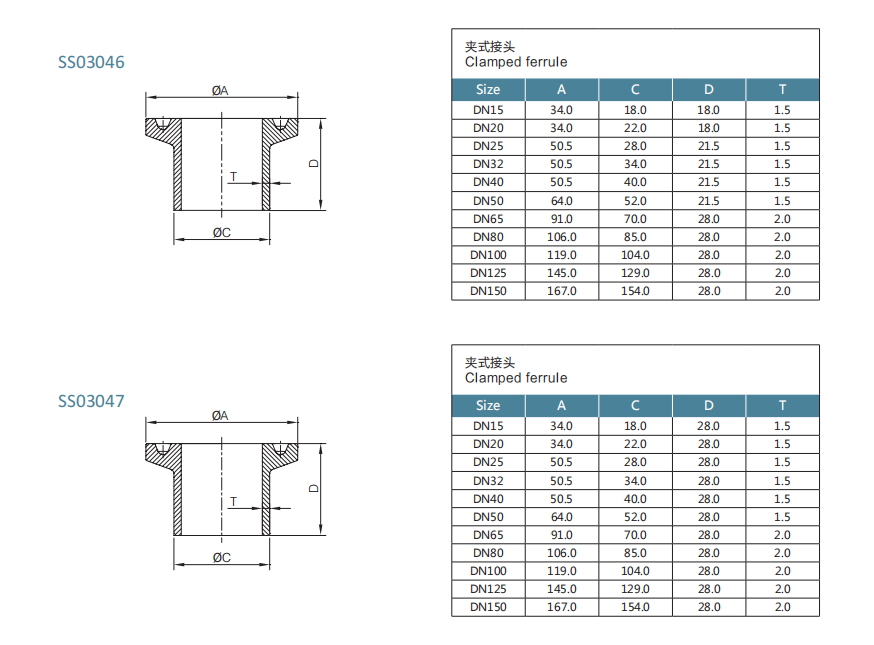

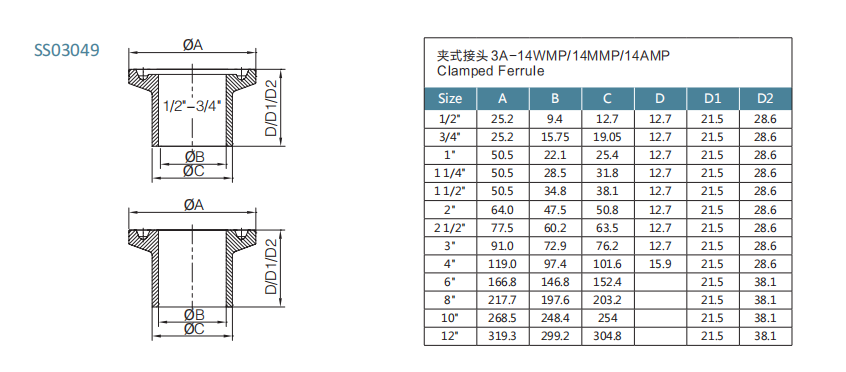

3A clamped ferruleDIN clamped ferruleSMSclamped ferrule

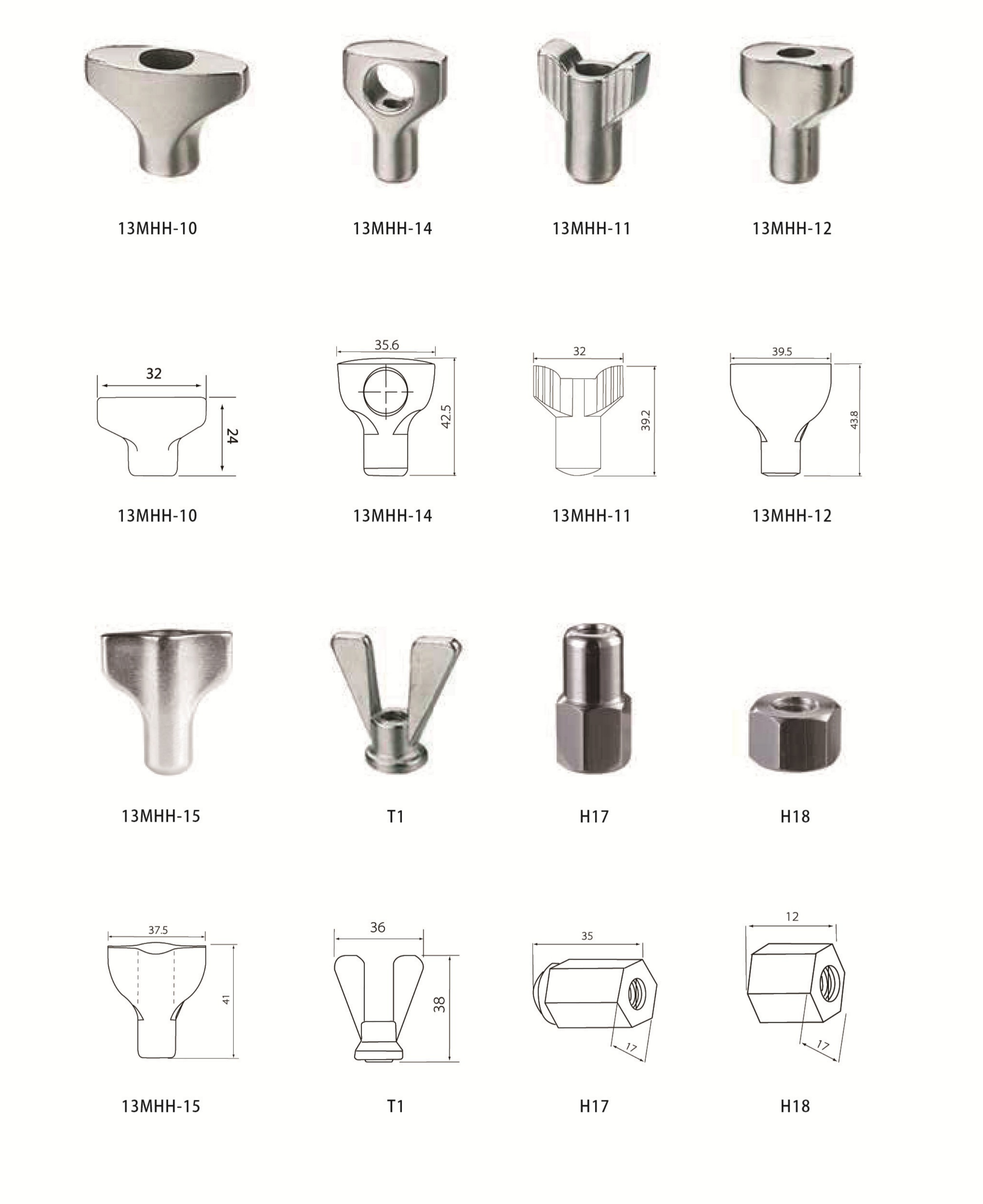

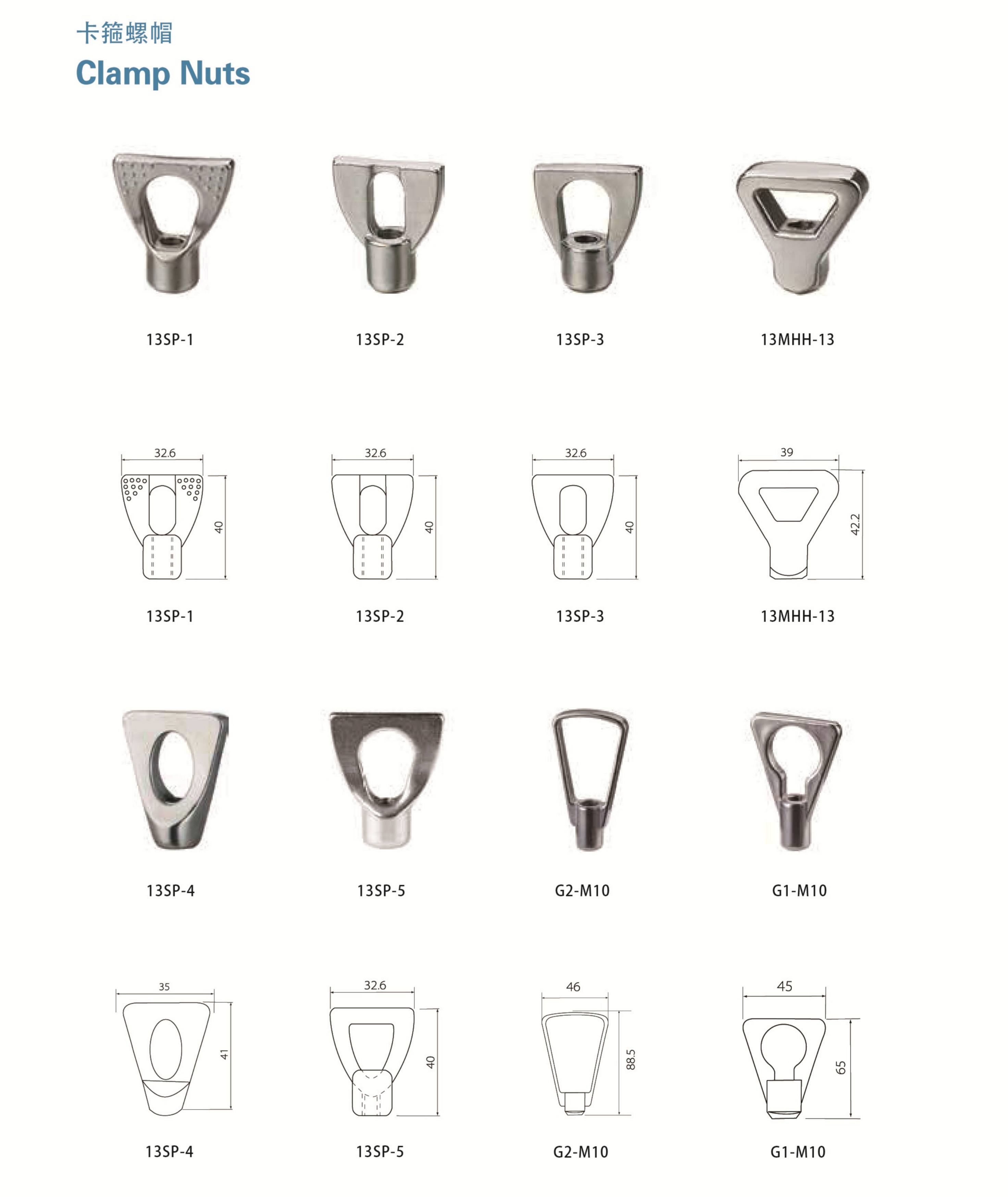

Clamp and Pipe hanger_18Clamp_19

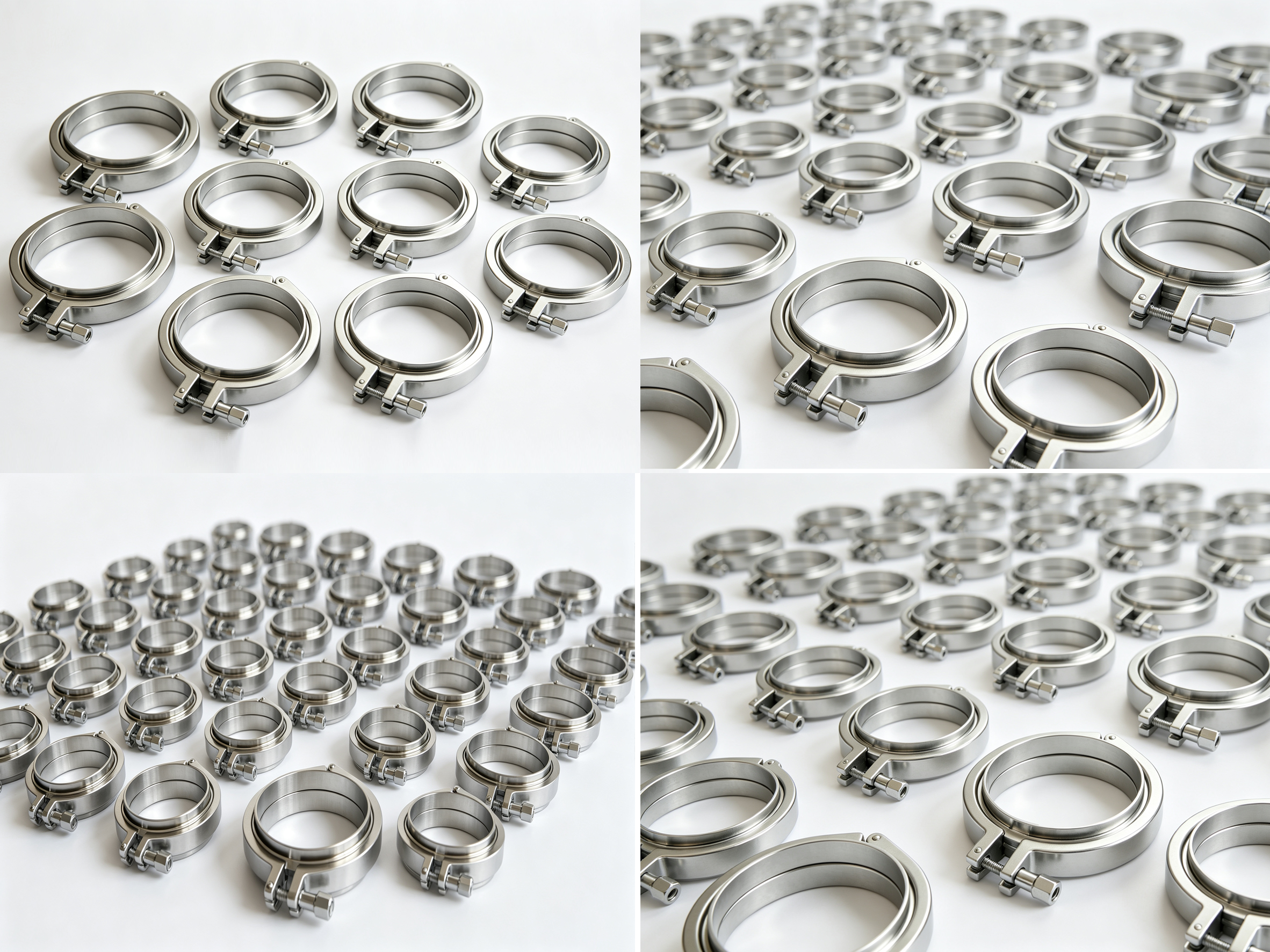

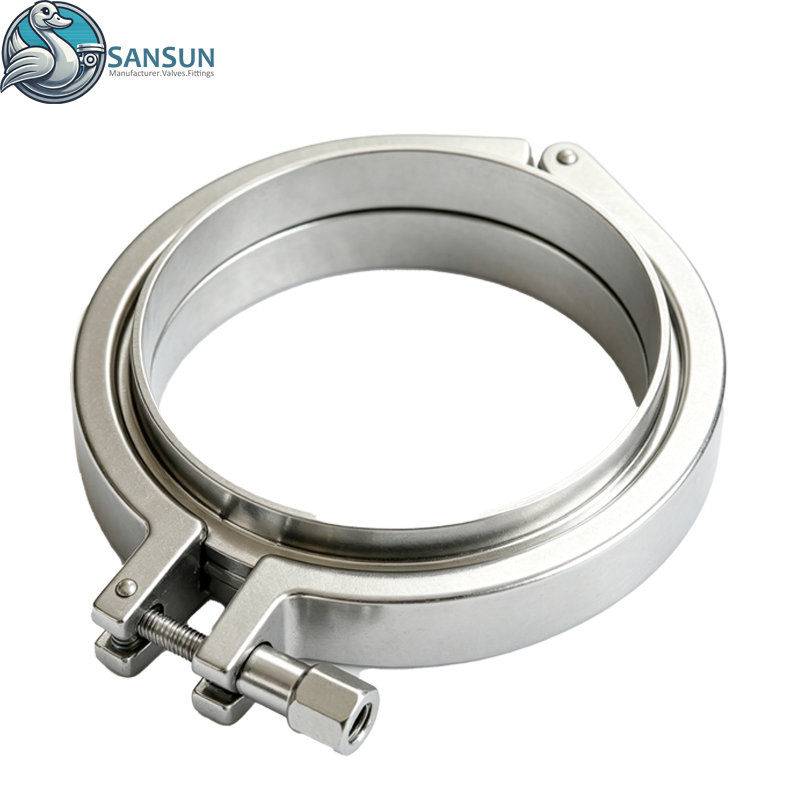

Tri Clamp Union

Tri Clamp Union
