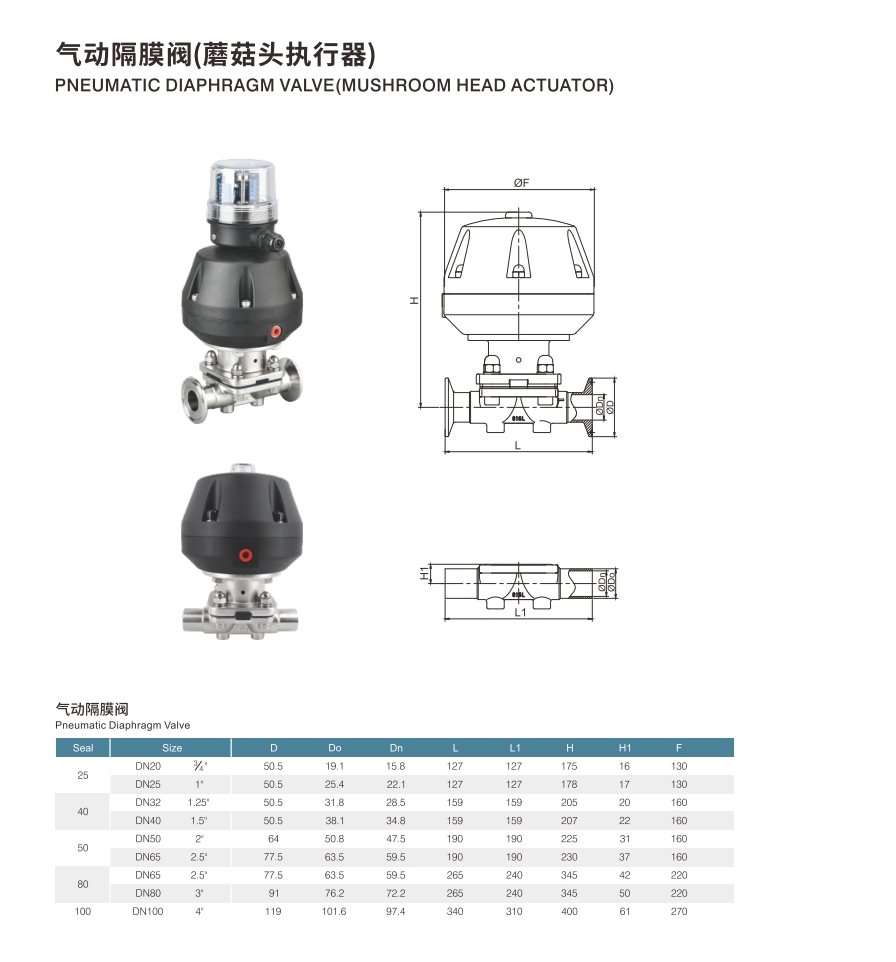

| Size | 3/4"-3/4"-3"-3" (DN20/DN20"-DN80/DN80") |
| Valve Body Material: | AISI316L ,1.4404 (Forged) |
| Valve Disc Material: | AISI316L ,1.4404 (Forged) |
| Seal Material: | EPDM,EPDM+PTFE |
| Surface Finishing： | Ra < 0.4-0.8 µm (32 µin) |
| Max Working Pressure: | 145psi (10bar) |
| Helium Leak Test: | <1 × 10⁻⁹ mbar・l/s |
| Cleanliness: | Passivation treatment, Conforms to ASTM A380 standard |
| Availably standard: | DIN/3A |
| Connection type | Clamp End,Thread End,Weld End |
| Pneumatic Operation |
Control Unit C-TOP, positioner IL-TOP, mechanical valve regulator, Position Sensor |
| Certification | US 3-A, FDA, CE PED/2014/68/EC, Certification |

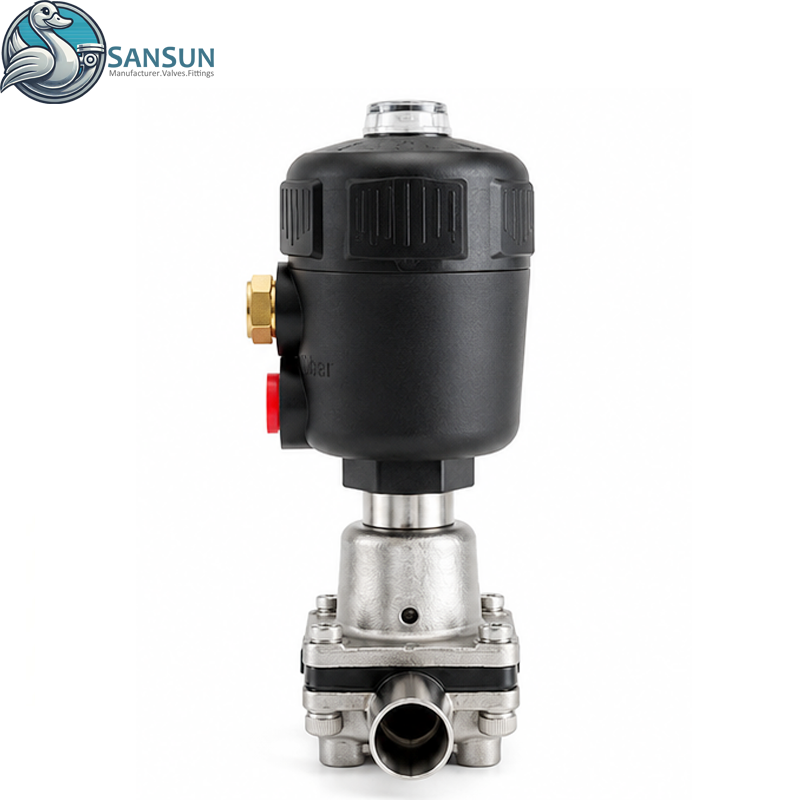

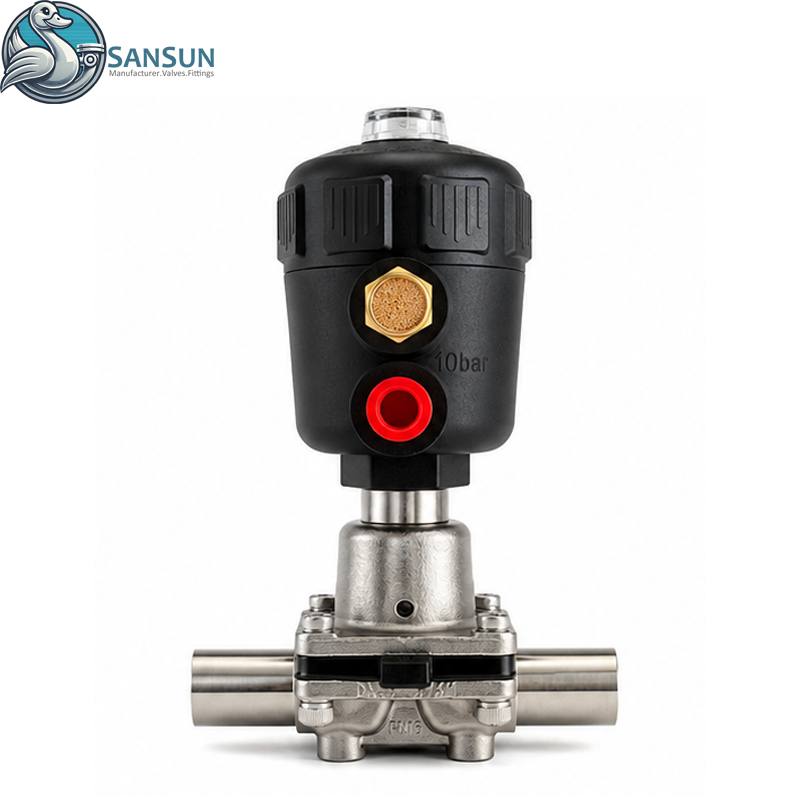

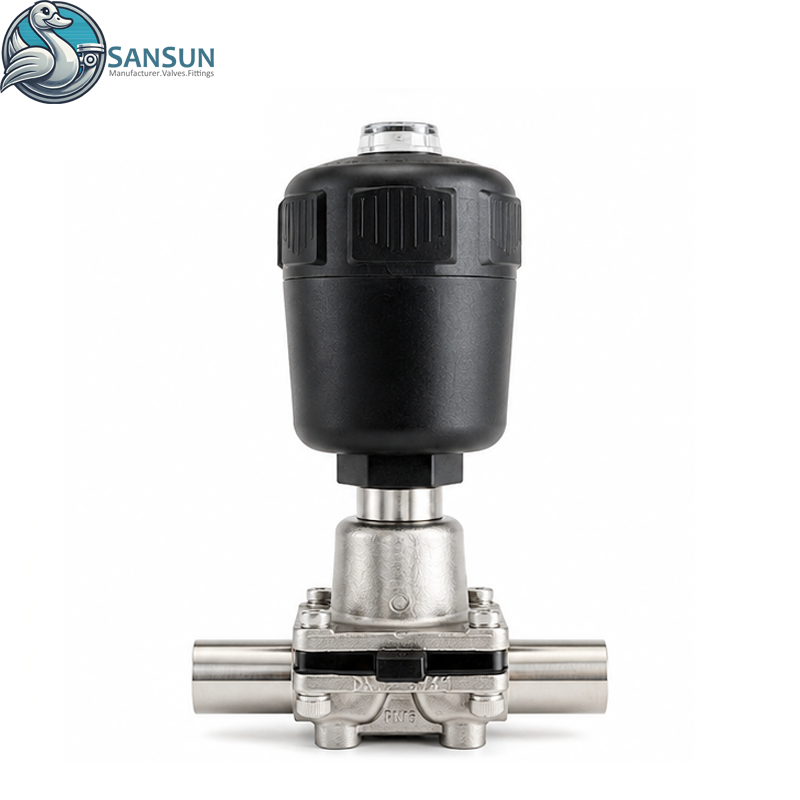

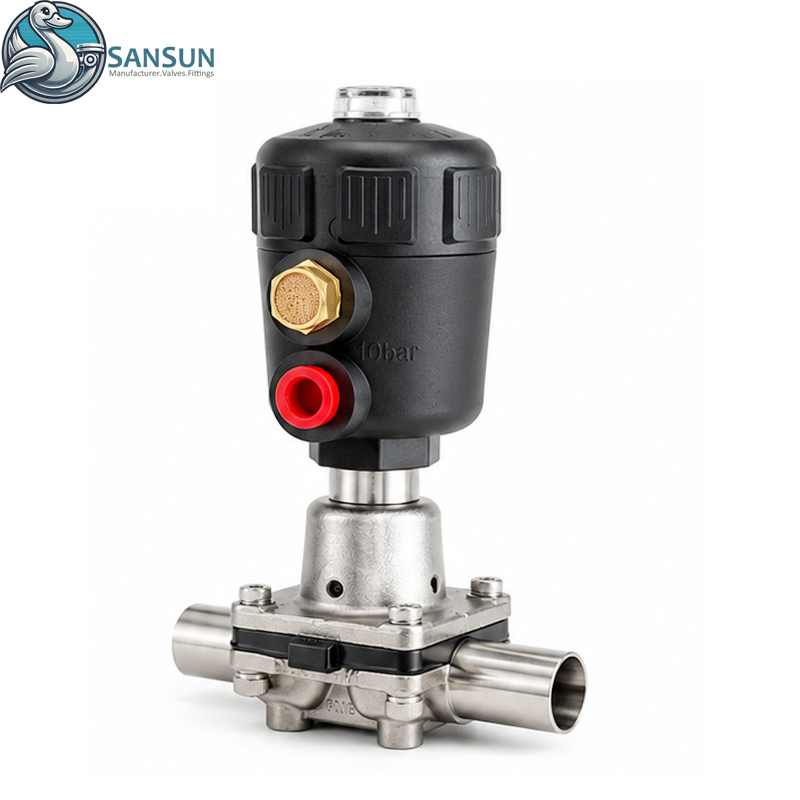

| Application scope: | This welded pneumatic diaphragm valve with plastic actuator is extensively applied in hygienic pipelines of food, beverage, brewery, cosmetics and pharmaceutical industries for sterile fluid transmission. |
