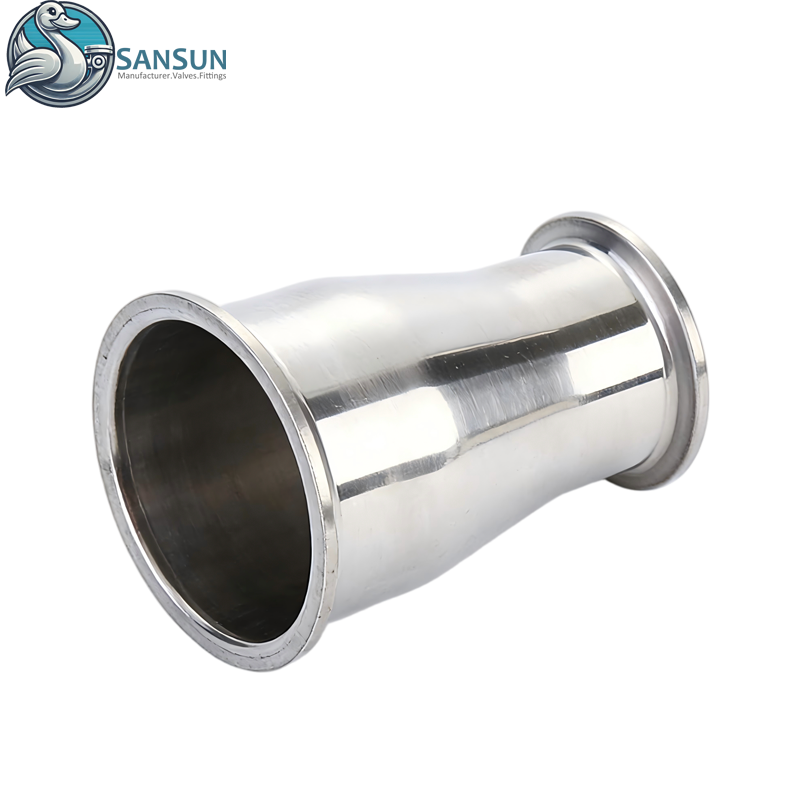

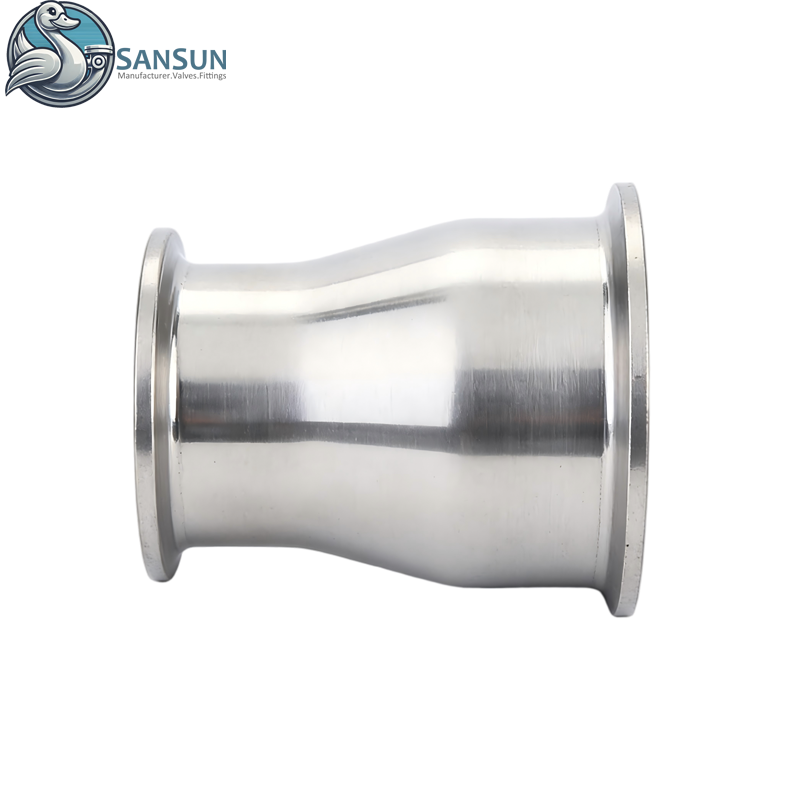

304 Stainless Steel Tri-Clamp Concentric Reducer for Data Center Liquid Cooling Systems

Sansun Tri-Clamp Concentric Reducer and fittings compliant with USA 3-A sanitary standard, constructed from sanitary stainless steel 304 or 316L, provide solid, durability, problem-free for weld or assemble, available in ASME BPE, 3-A, DIN, SMS, ISO, I-line standard,sansun's Reducer is comply with the OCP specification(Open Compute Project specification), Reducer for Data center liquid cooling, Reducer for Direct-to-Chip (DTC) cooling,Reducer for CDU(Coolant Distribution Unit).
Size:
Material:
Availability:
Quantity:
  • SANSUN

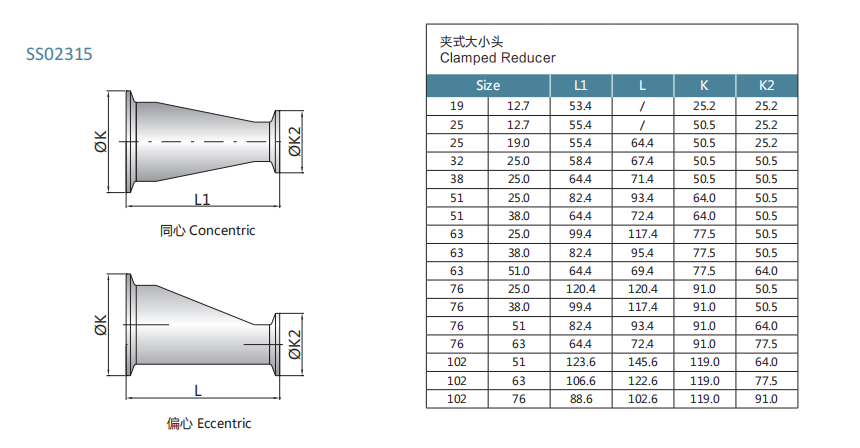

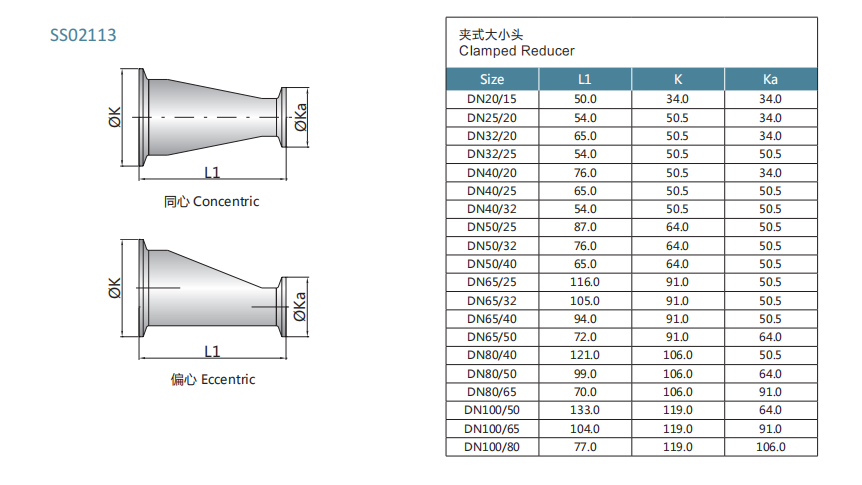

Size DN20xDN15-DN100xDN80,1"x1/2"-4x3"
Valve Body Material: AISI304/AISI316L ,1.4404/1.4301   (Forged)
Vale Disc Material: AISI304/AISI316L ,1.4404/1.4301   (Forged)
Surface Finishing: Ra < 0.4-0.8 µm (32 µin)
Max Working Pressure: 145psi(10ba)
Helium Leak Test: <1 × 10⁻⁹ mbar・l/s
Cleanliness: Passivation treatment, Conforms to ASTM A380 standard
Availably standard: DIN/3A/ISO
Connection type Clamp End, Thread End, Weld End
Certification US 3-A, FDA, CE PED/2014/68/EC, Certification
Application scope:

sansun's Concentric Reducer  is comply with the OCP specification(Open Compute Project specification),    Concentric Reducer for Data center liquid cooling, Concentric Reducer for Direct-to-Chip (DTC) cooling,Concentric Reducer for CDU(Coolant Distribution Unit).

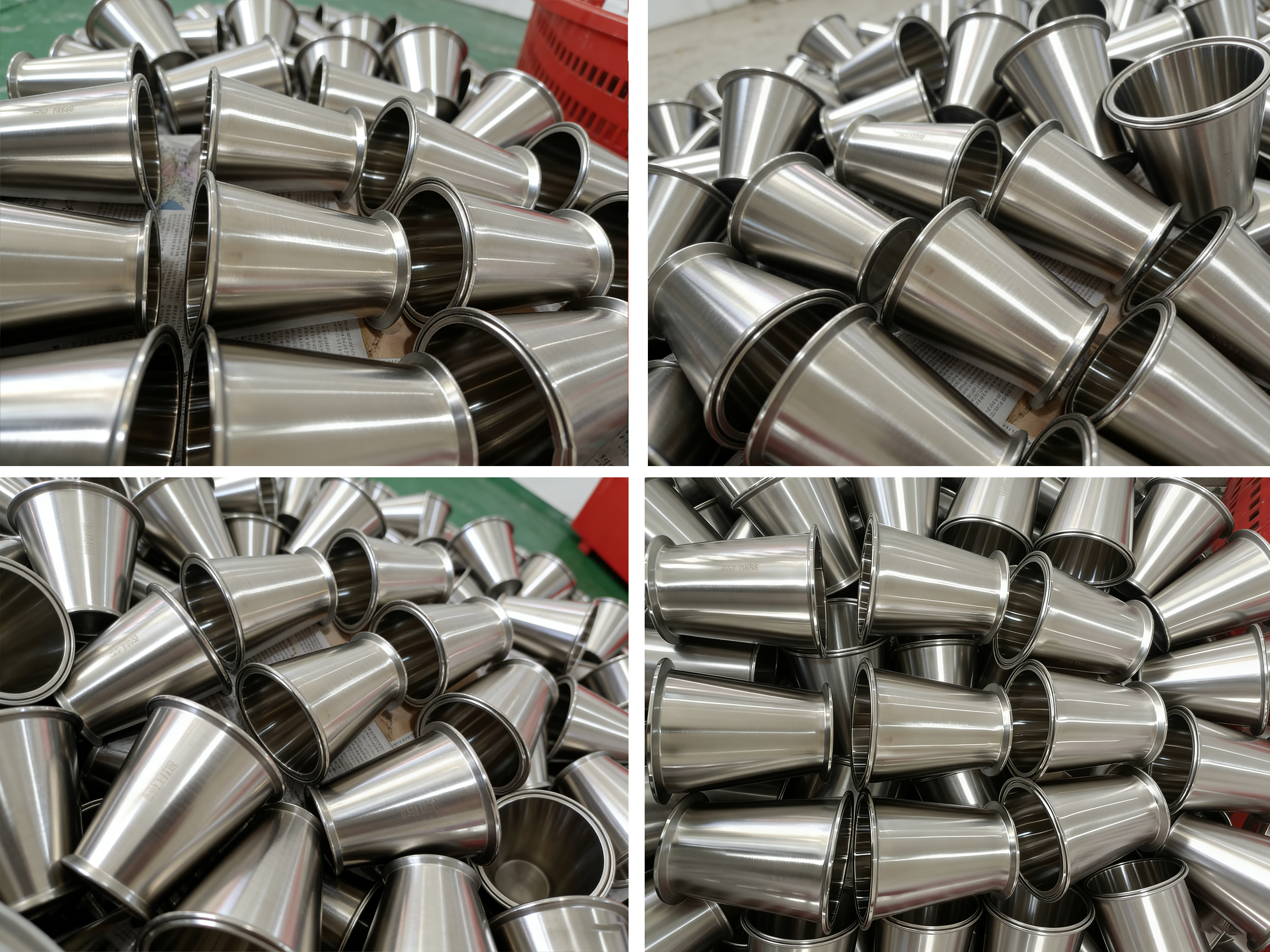

421_sansun-factory-workshop-china-manufactuer-laser-marking (2)
