SANSUN
Application

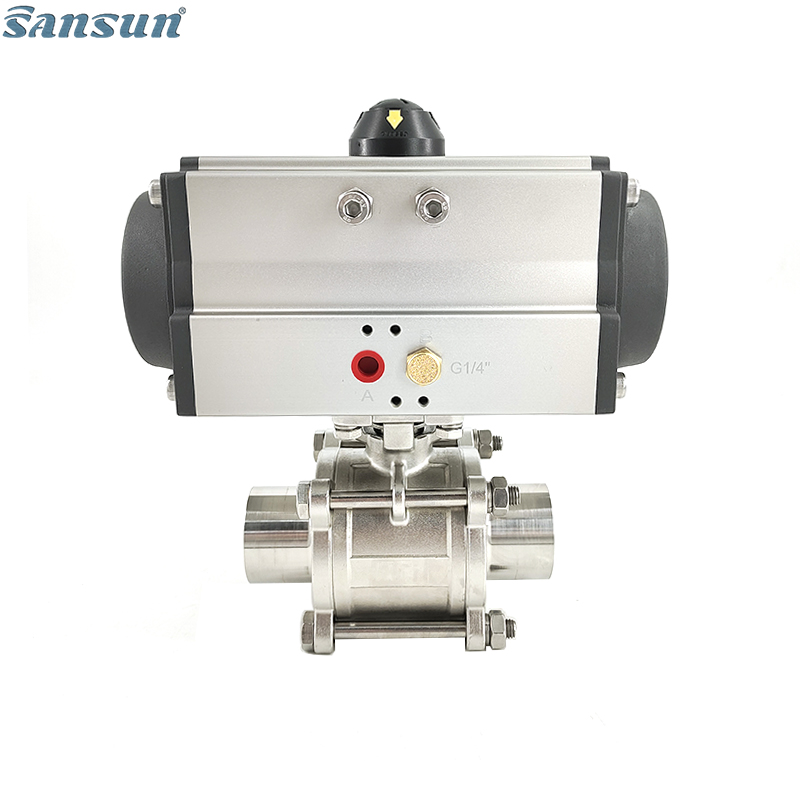

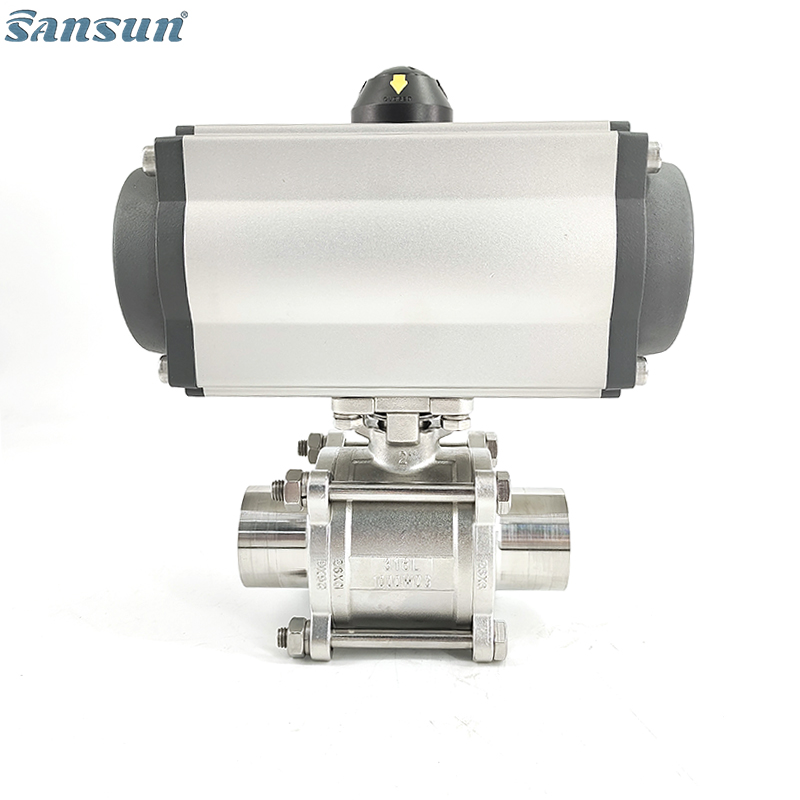

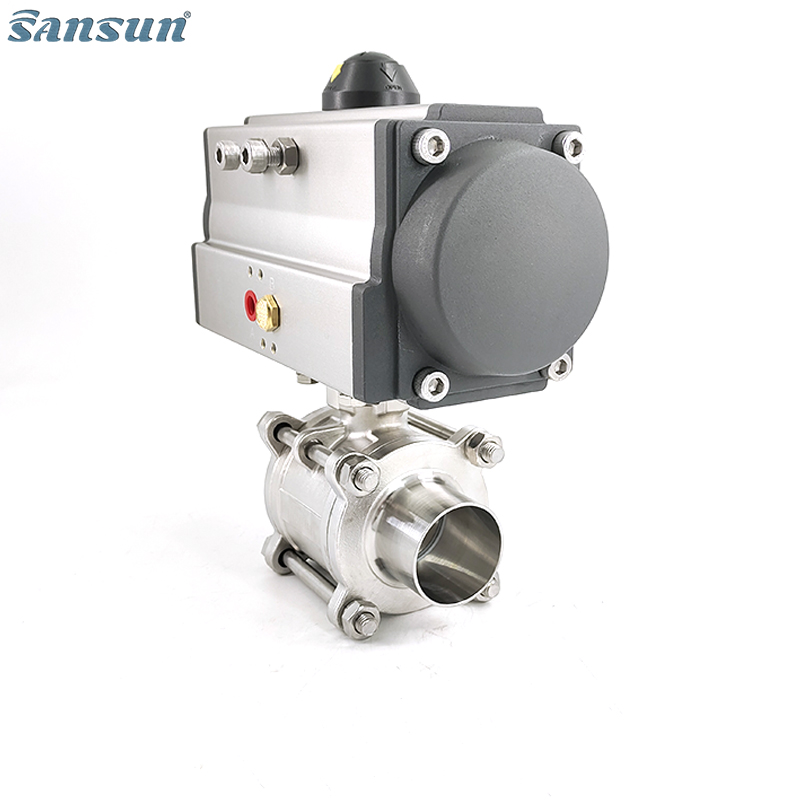

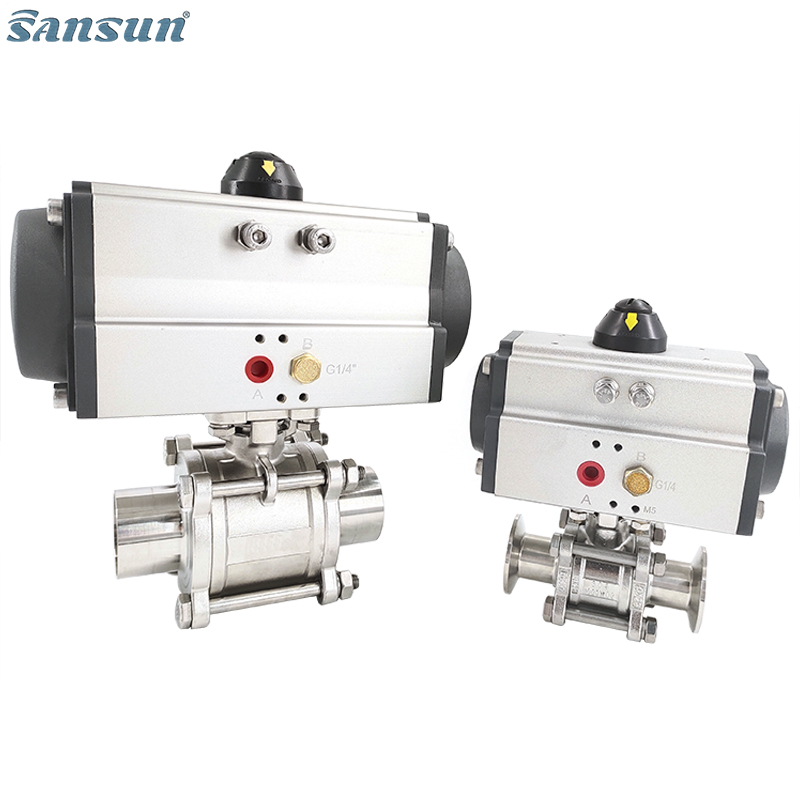

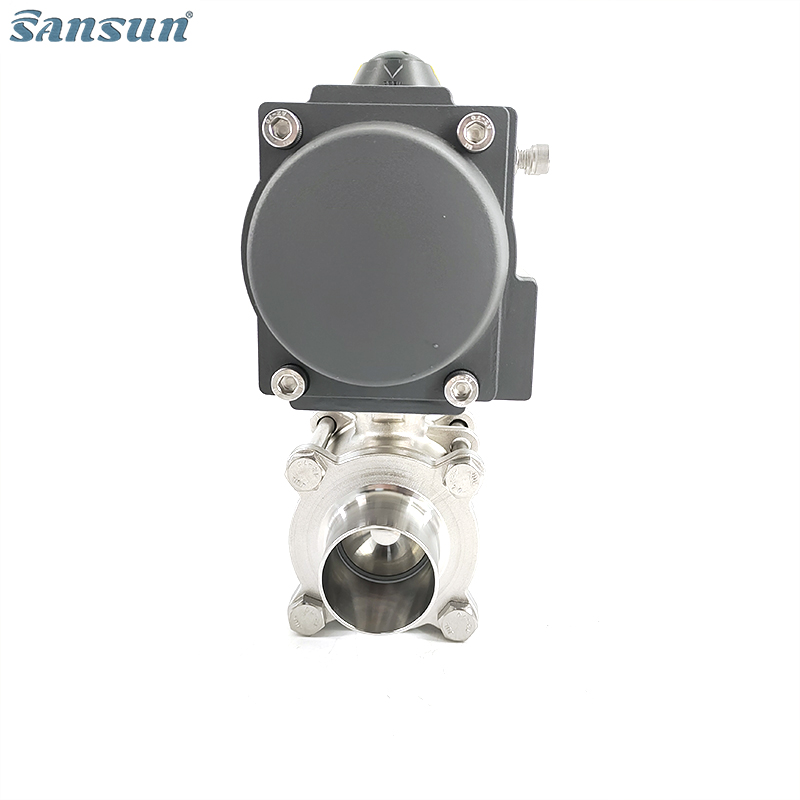

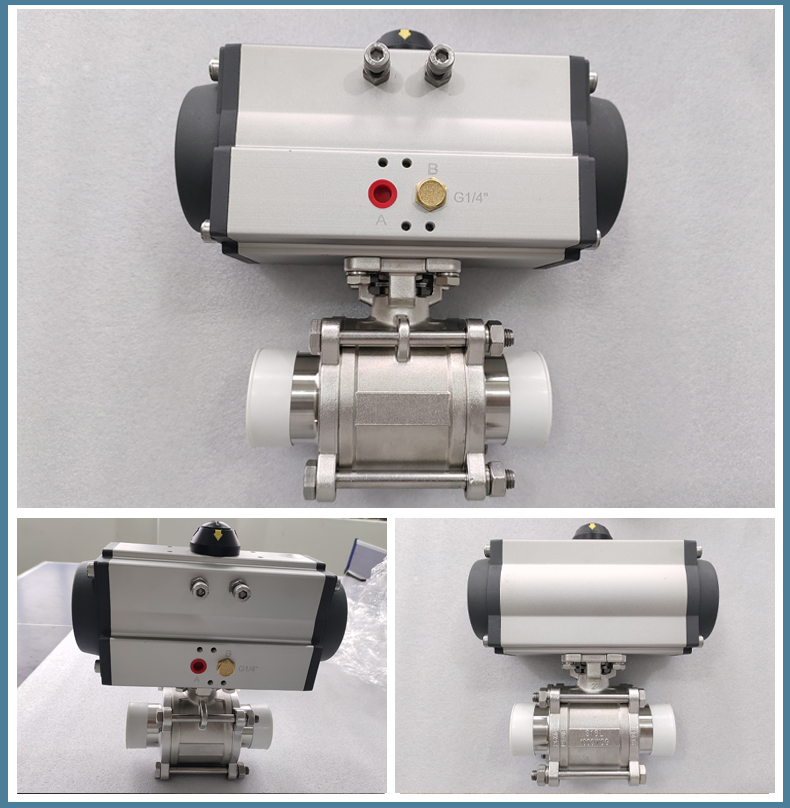

Stainless Steel Pneumatic Actuated 3 Piece Ball Valve
This manual type sanitary 3-pc ball valve is widely used in Food, pharmaceutical, high-pressure steam, etc.
automatic control fluid process.
Design Features
·Full port design
·Balanced encapsulated construction minimizes cold flow
·Precision stainless steel balls reduce torque and friction losses while extending sat life
·Lockable handle can prevent accidental actuation
·Integral ISO 5211 mounting pad
·Sizes are available from 1/2"/DN10 to 6"/DN150
·Connection: Welding, Clamp, Male or others upon request.

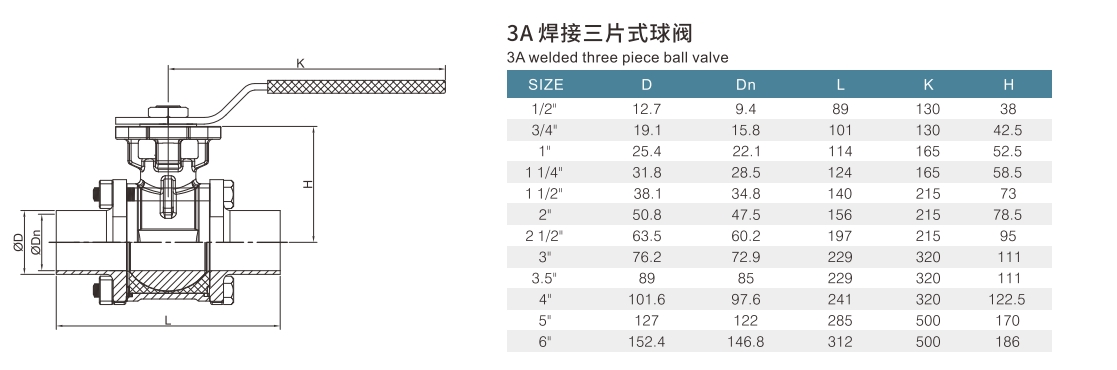

Technical Specification
Max. pressure: 10Bar (DN10-DN65/ 1/2"-21/2")
8Bar (DN80-DN150/ 3"-6")
Working temperature: -20℃ to + 150℃ (PTFE)

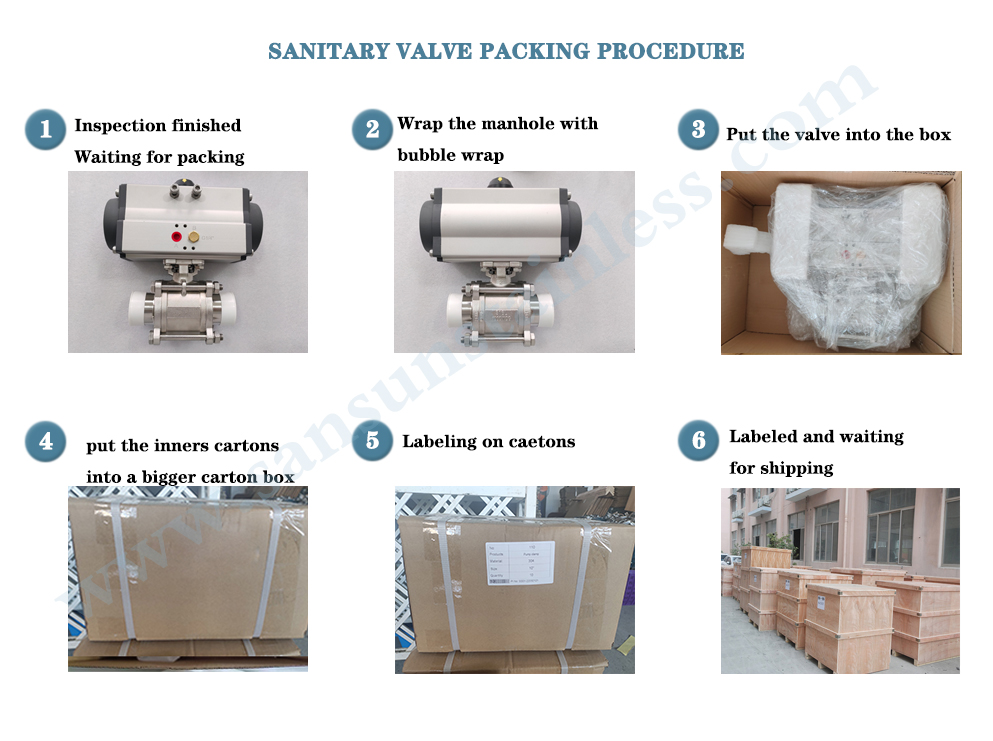

Package for ball valve
