SANSUN

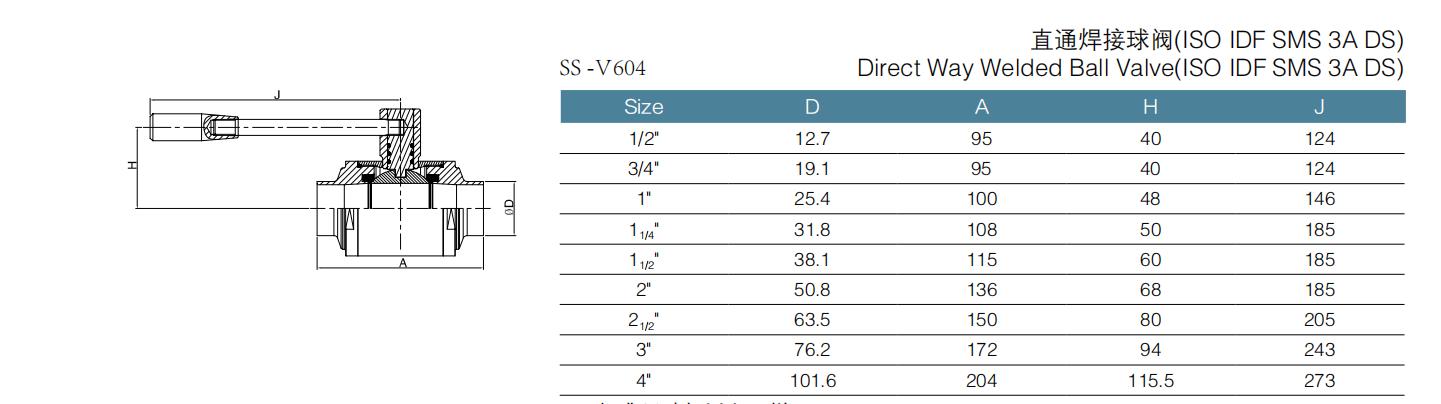

SS-V604
Operating Principles

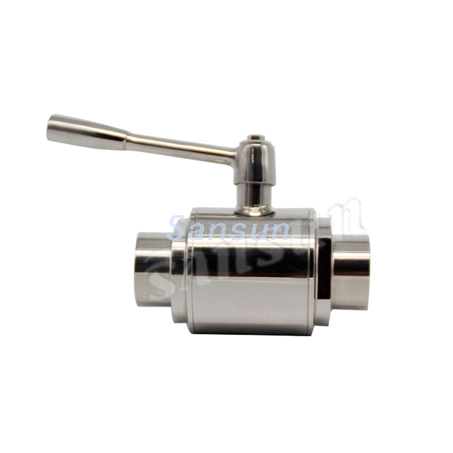

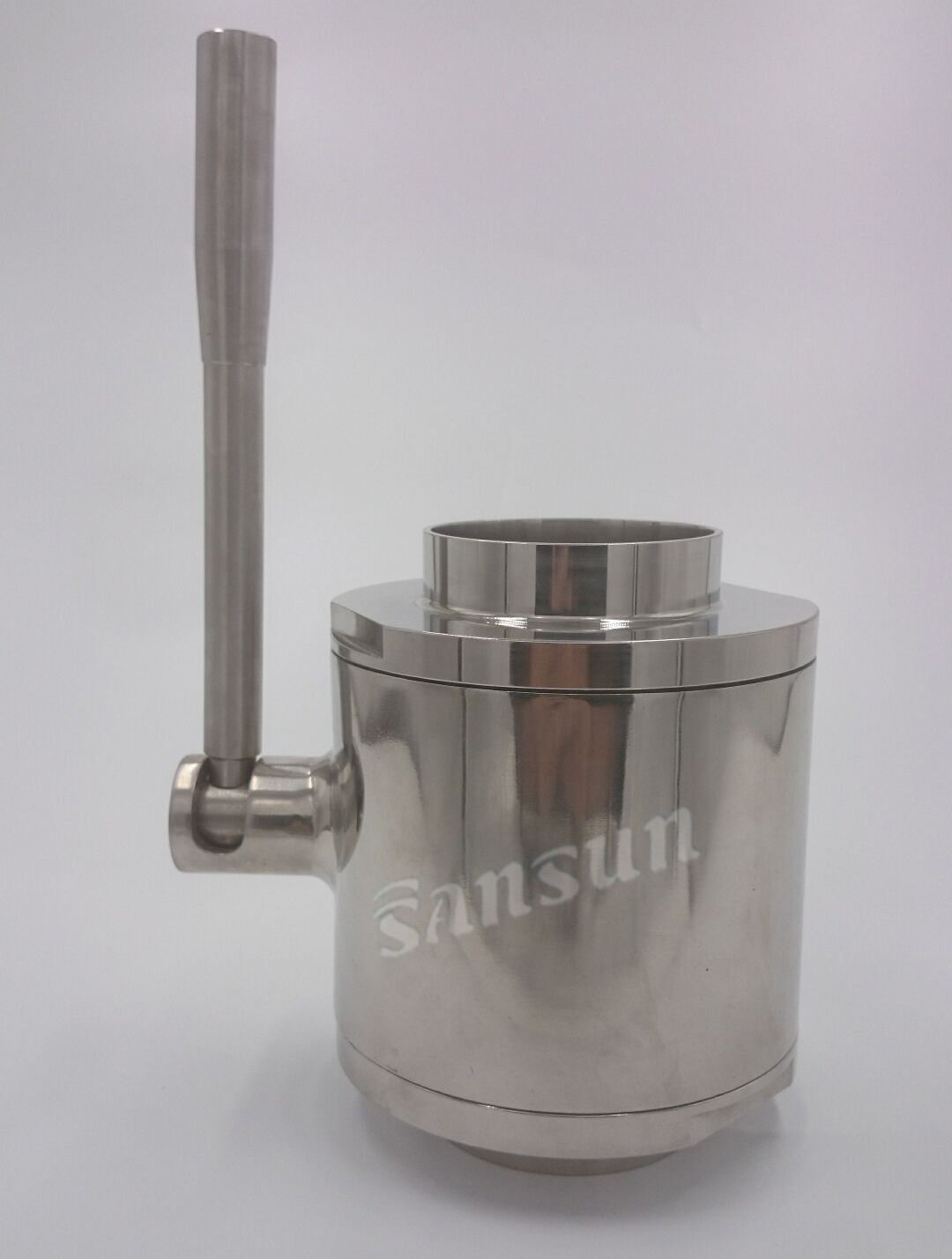

1 Inch Sanitary 2 Way Butt Weld Ball Valve
The ball valves can be operated automatically through actuator or manually with the handle.
The handle holds the valve in the "open" or "closed" position, but of course other positions are also available.
The actuator push piston of axial movement into 90 degree so that it controls ball valve.
Ball valves are used in beer, beverage, dairy, juice, pharmaceutical, bioengineering and other applications.
Technical Specifications
Max.pressure: 10 bar (DN-25/100);8 bar (DN-100/150)
Min.pressure: 0.2 bar p.abs
Operating temperature:-10℃ to +120℃ (PTFE)
Materials
Valve body: AISI316L/304(forged)
Handle: AISI304/PP
Surface finishing: Ra=0.8
Standard Design
Free of maintenances
Compact and portable
Small operating torque
Available in sizes from 1/2" to 4"
Standard Avaliable: DIN, SMS, RJT, 3A, FIL
Connection: weld, clamp, thread, flange
Type of valves: One way ball valve, three-piece ball valve, Three-way ball valve
Type of cores: T type,L type, direct type
Actuator: pneumatic stainless steel actuator, electric actuator

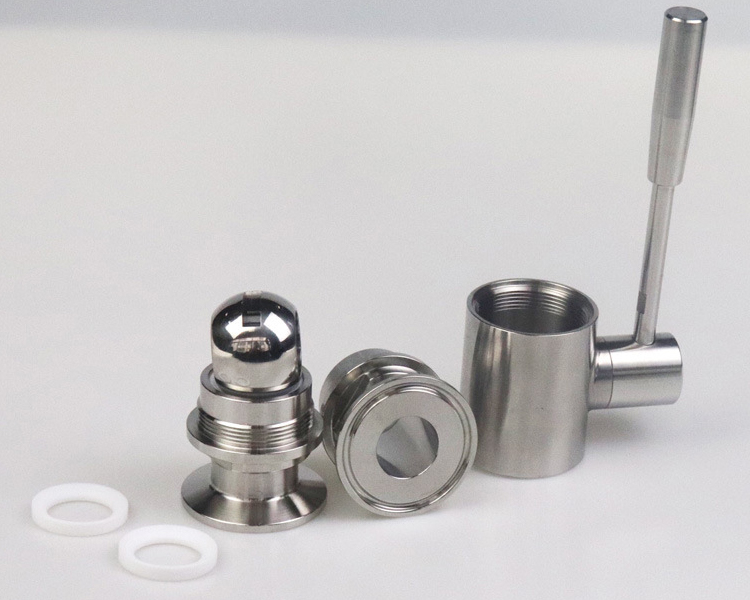

Exploded View of Direct Way Ball Valve
Inspection
All kinds of non-standard products are customized according to the requirements of customers.
Products can be traced back to the manufacturing and time of each process to ensure the quality of products.
