Operating Principles

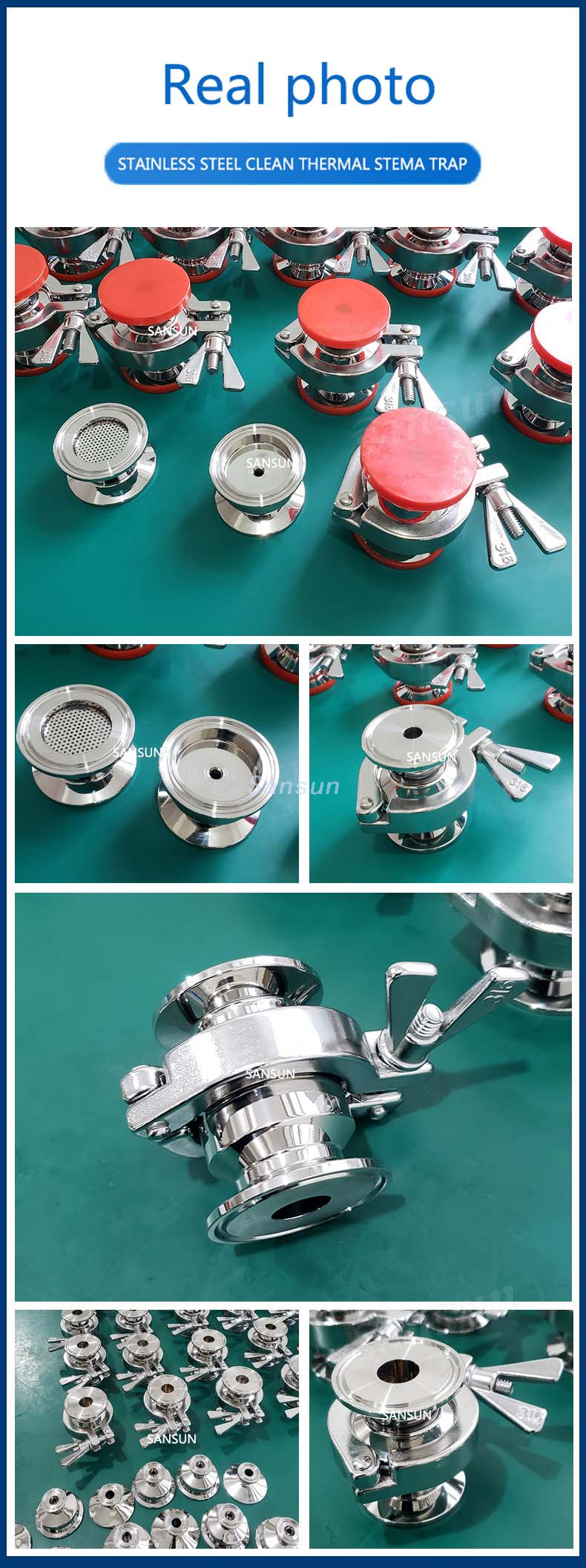

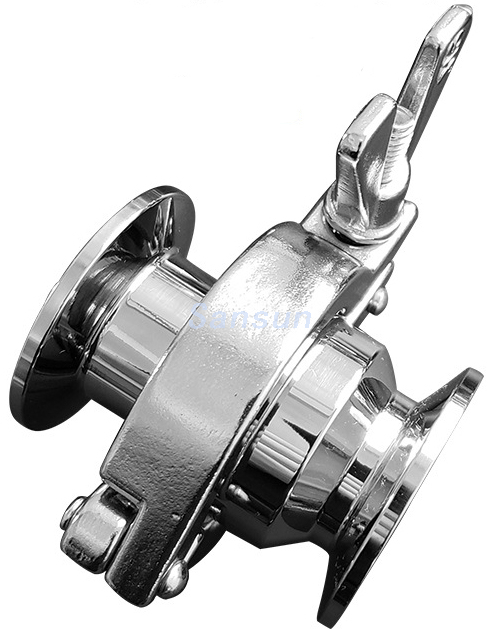

SV5001 Sanitary steam traps are used in industries where steam purity is critical, such as in the food and
beverage, pharmaceutical, and biotechnology industries. These traps are designed to remove condensate and
other impurities from steam systems while maintaining the purity of the steam
Feature
◇ The free flow of condensate, seamless design to the maximum extent to suppress bacterial accumulation;
◇ The "fail-open" characteristic minimizes the possibility of critical operation shutdown;
◇ The large valve mouth design can quickly discharge a large amount of air to ensure rapid start-up, prevent
blockage, and ensure continuous operation.
◇ Self draining when installed vertically (body outlet side down) - either vertical or horizontal connections
◇ The internal non-retention structure, selfemptying design of condensate, surface roughness RA<0.6um to
prevent bacterial growth.
Technical Specifications
Connection Orientation;Vertical
Connection Type;ASME, DIN, ISO Tri-Clamp and Tube Weld Ends
Maximum Pressure ;145 psig (10 barg) @ 350°F (177°C)
Max. Recommended Differential Pressure;0.7- 6,9 bar
Materials of Construction;
1.Wetted body/plug material: ASTM A479 316L or optional DIN 1.4435;
2.Body Gaskets: Various - all FDA and USP Class VI
Nominal Cv (Kv); 3.8 (3,30)
Surface Finish;
1.Internal:
2.SF1, 20 Ra μin (0,5 μm) standard;SF5, 20 Ra μin (0,5 Ra μm) electropolish or better optional
Subcooling;Less than 3°F (2°C)
Safety factor: ≥2
Do not use sanitary traps in excess of the maximum pressure difference, otherwise condensation will occur.
Inspection
All kinds of non-standard products are customized according to the requirements of customers. Products can be traced back
to the manufacturing and time of each process to ensure the quality of products.
Operating Principles
SV5001 Sanitary steam traps are used in industries where steam purity is critical, such as in the food and
beverage, pharmaceutical, and biotechnology industries. These traps are designed to remove condensate and
other impurities from steam systems while maintaining the purity of the steam
Feature
◇ The free flow of condensate, seamless design to the maximum extent to suppress bacterial accumulation;
◇ The "fail-open" characteristic minimizes the possibility of critical operation shutdown;
◇ The large valve mouth design can quickly discharge a large amount of air to ensure rapid start-up, prevent
blockage, and ensure continuous operation.
◇ Self draining when installed vertically (body outlet side down) - either vertical or horizontal connections
◇ The internal non-retention structure, selfemptying design of condensate, surface roughness RA<0.6um to
prevent bacterial growth.
Technical Specifications
Connection Orientation;Vertical
Connection Type;ASME, DIN, ISO Tri-Clamp and Tube Weld Ends
Maximum Pressure ;145 psig (10 barg) @ 350°F (177°C)
Max. Recommended Differential Pressure;0.7- 6,9 bar
Materials of Construction;
1.Wetted body/plug material: ASTM A479 316L or optional DIN 1.4435;
2.Body Gaskets: Various - all FDA and USP Class VI
Nominal Cv (Kv); 3.8 (3,30)
Surface Finish;
1.Internal:
2.SF1, 20 Ra μin (0,5 μm) standard;SF5, 20 Ra μin (0,5 Ra μm) electropolish or better optional
Subcooling;Less than 3°F (2°C)
Safety factor: ≥2
Do not use sanitary traps in excess of the maximum pressure difference, otherwise condensation will occur.
Inspection
All kinds of non-standard products are customized according to the requirements of customers. Products can be traced back
to the manufacturing and time of each process to ensure the quality of products.
