Operating Principles
SV5002 Sanitary steam traps are used in industries where steam purity is critical.These traps are designed to remove
condensate and other impurities from steam systems while maintaining the purity of the steam.

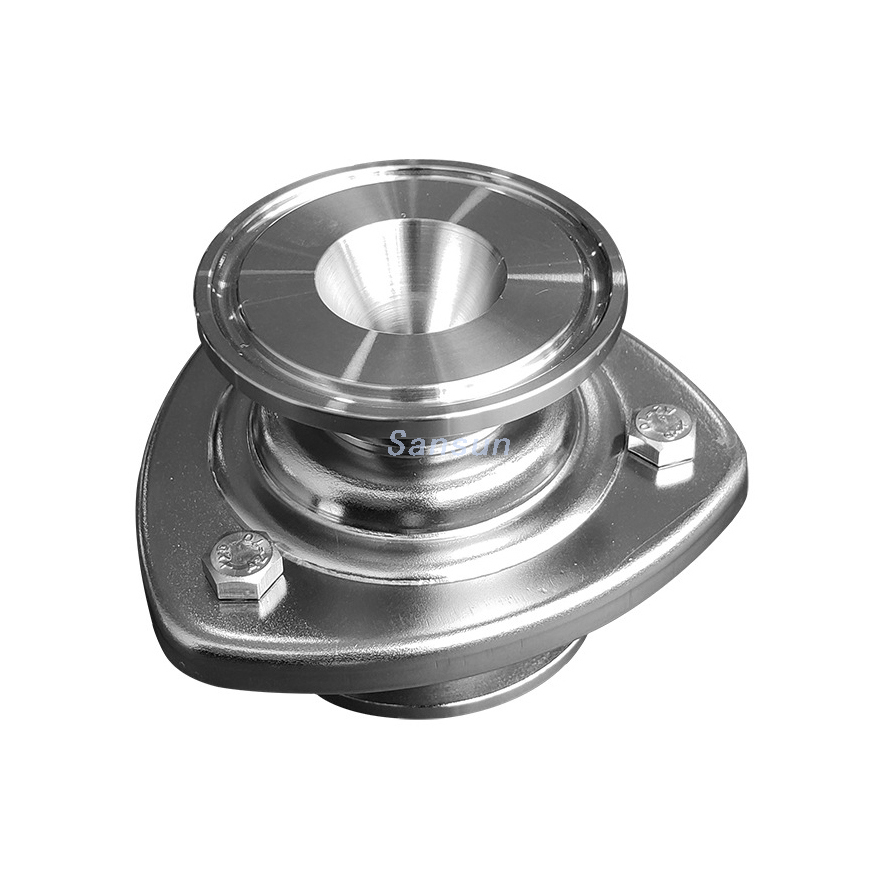

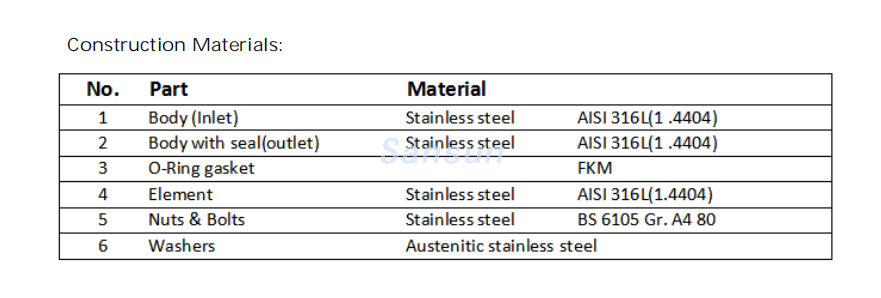

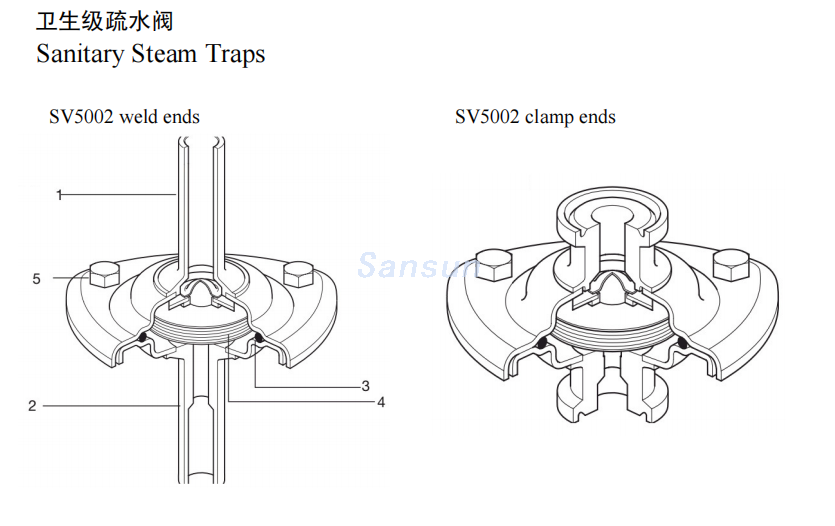

SV5002 is a vertical body thermostatic air vent, with all AISI 316L construction designed for use in clean steam systems.
Normal operation is close to saturated steam temperature.
Application
Fermenter sterilization, steam barriers (block & bleed systems), sterilizer drainage and air venting, CIP/SIP system
condensate drainage, and sterilization of process vessels and pipes.
Technical Specifications

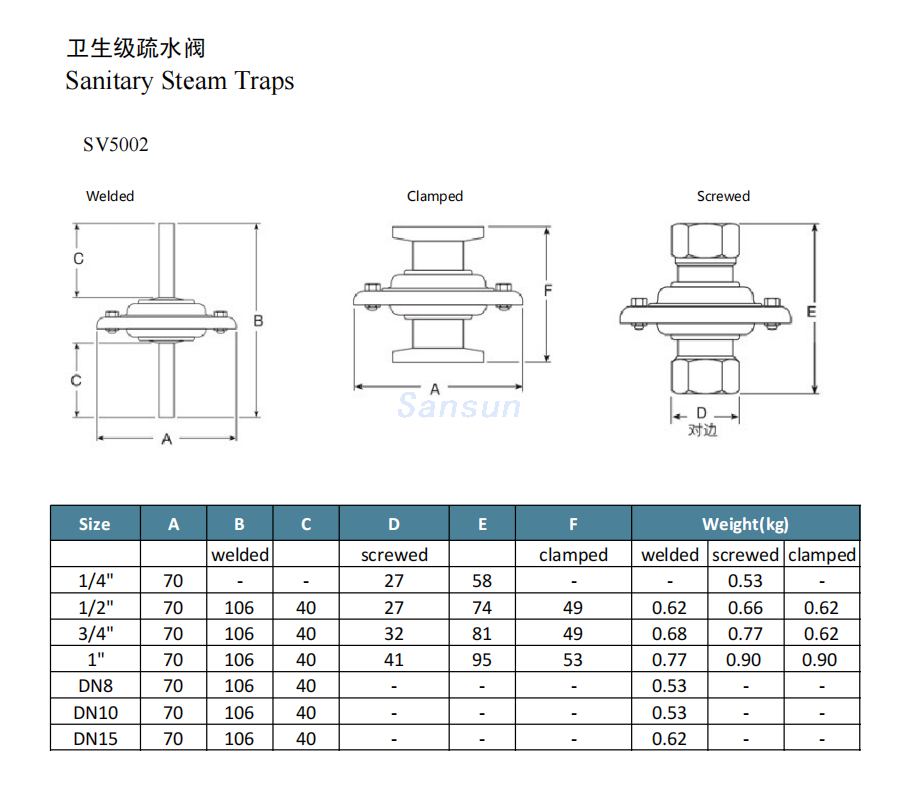

Connection Type | ASME, DIN, ISO Tri-Clamp and Tube Weld Ends | |
Max. Operating Pressure (PMO) | 102 psig (7 barg) | |
Max. Operating Temperature | Saturated Steam Temperature | |
PMA Max. allowable pressure | 145 psig/0-302°F 10 barg/0-150°C | |
TMA Max. allowable temperature | 338"F/0-132 psig 170°C/0-9 barg | |
Surface Finish | Internal:SF1, 20 Ra μin (0,5 μm) standard;SF5, 20 Ra uin (0,5 Ra um) electropolish or better optional | |
Designed for a maximum cold hydraulic test pressure of 155 psig(10.7 barg) |
Inspection
All kinds of non-standard products are customized according to the requirements of customers. Products can be traced back
to the manufacturing and time of each process to ensure the quality of products.
Operating Principles
SV5002 Sanitary steam traps are used in industries where steam purity is critical.These traps are designed to remove
condensate and other impurities from steam systems while maintaining the purity of the steam.
SV5002 is a vertical body thermostatic air vent, with all AISI 316L construction designed for use in clean steam systems.
Normal operation is close to saturated steam temperature.
Application
Fermenter sterilization, steam barriers (block & bleed systems), sterilizer drainage and air venting, CIP/SIP system
condensate drainage, and sterilization of process vessels and pipes.
Technical Specifications
Connection Type | ASME, DIN, ISO Tri-Clamp and Tube Weld Ends | |
Max. Operating Pressure (PMO) | 102 psig (7 barg) | |
Max. Operating Temperature | Saturated Steam Temperature | |
PMA Max. allowable pressure | 145 psig/0-302°F 10 barg/0-150°C | |
TMA Max. allowable temperature | 338"F/0-132 psig 170°C/0-9 barg | |
Surface Finish | Internal:SF1, 20 Ra μin (0,5 μm) standard;SF5, 20 Ra uin (0,5 Ra um) electropolish or better optional | |
Designed for a maximum cold hydraulic test pressure of 155 psig(10.7 barg) |
Inspection
All kinds of non-standard products are customized according to the requirements of customers. Products can be traced back
to the manufacturing and time of each process to ensure the quality of products.
